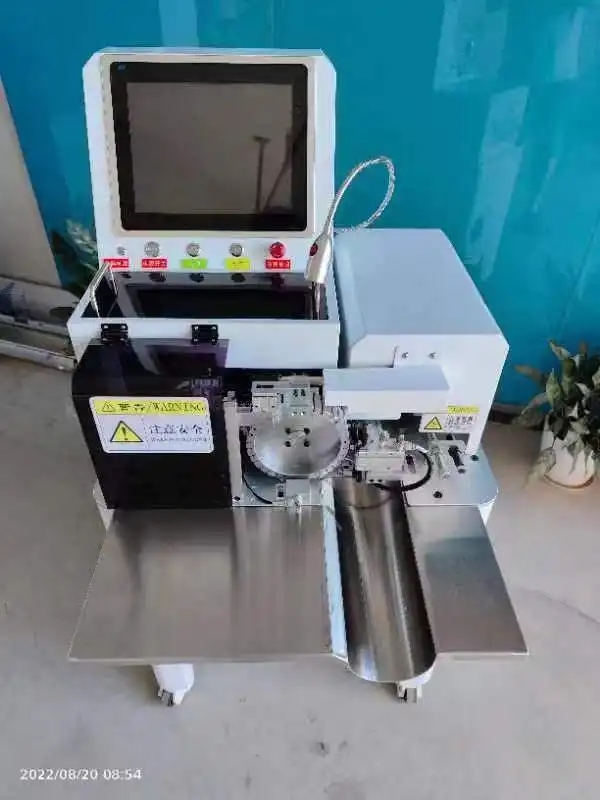

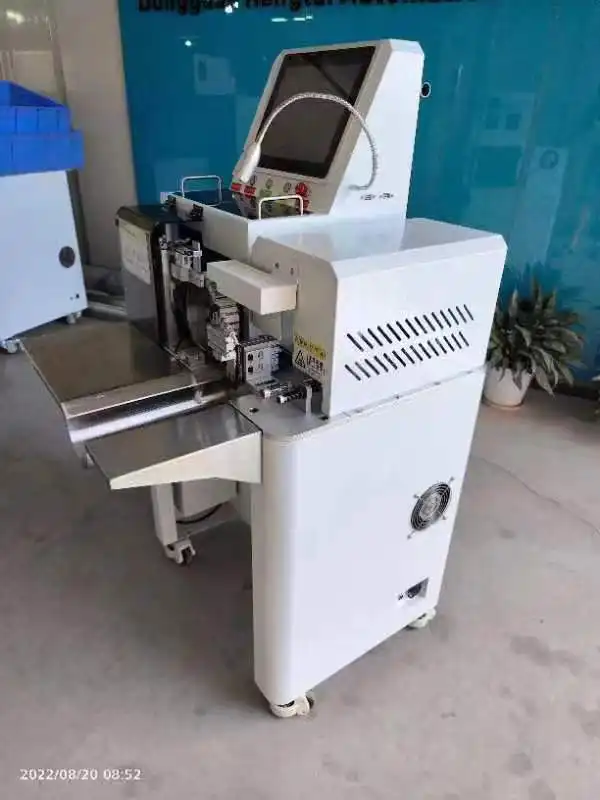

wire terminal crimping heat shrink tube inserting sleeve machine

Specification
Model:HL-RSG01
Applicable tube length:5-25mm (Longer needs to be customized)
Applicable tube diameter:1-5.5mm (Larger needs assessment)
Tube cutting accuracy:+/-0.3mm
Tube position accuracy:+/-0.2mm
Power:1000W
Voltage:AC220V
Air pressure:0.5-0.6MPa (Dry, clean, oil free)
Efficiency:700-1200/H
Weight:200KG
Dimensions；700*800*1220mm

Operation:

Machine cuts the tube to the lenght, then feeds the tube to the position, the worker inserts the wire/terminal into the position, press pedal, then the machine will heat the tube, the tube is formed, the worker takes out the wire/terminal. Finished.

Features

1. High efficiency, save labor cost.
2. Compared with the hot air cylinder, the power consumption of this machine is lower. Save effort and power.
3. Equipment function: The equipment can automatically cut the heat-shrinkable tubing. The operator installs the product end of the heat-shrinkable tubing and inserts it into the guide hole in place, stepping on the foot switch, the device will heat-shrink the tubing.
4. The tube length, specifications, heat shrink temperature and time can be adjusted by debugging and replacing the corresponding accessories.

5. Touch screen controlled, easy operation.
