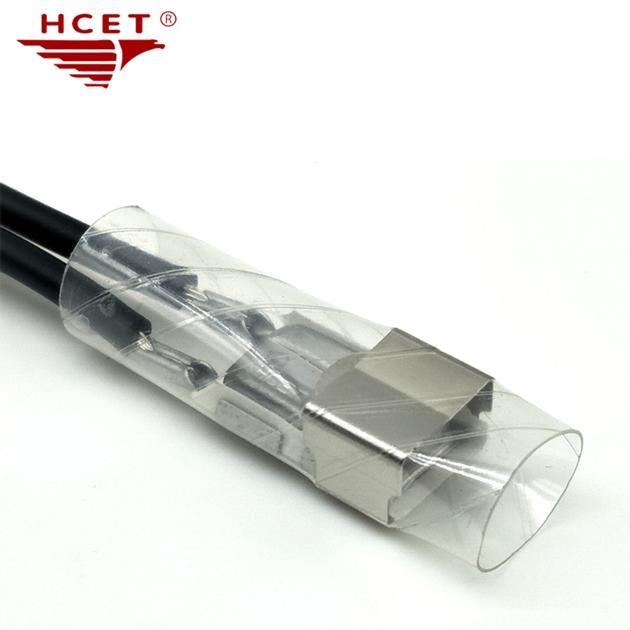

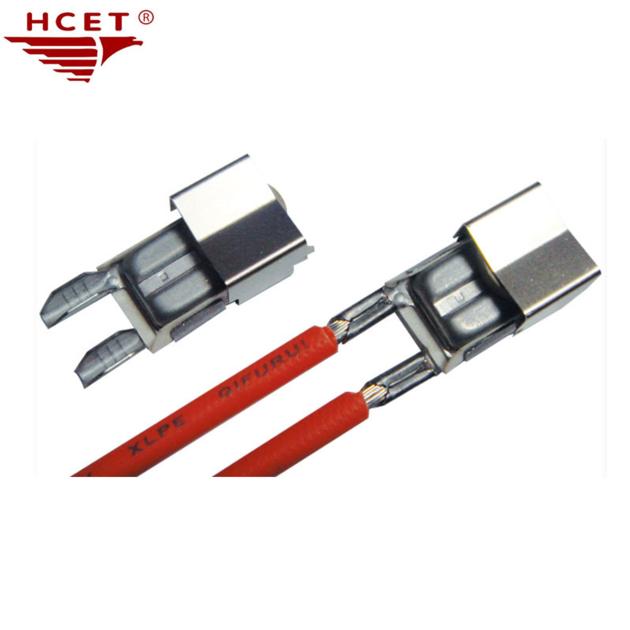

wholesale HCET 3MP self-hold motor thermal protector

3MP Series Self-hold Motor Protector:
3MP (Self-hold) current and overload protector with thermal protection and control

Current overload time exactly, reset after cut powerSpecial Features:

● Small size,(with hand-reset function)；

● Protected with overload, plugging turn, or short circuit flow well；

● According to the customer request, setting overload trip current, max 45A；

● Accurate trip off time can prevent motor from overheating(4~10s)；

● Fixed in coil or out ,make the process of motor more flexible；

● Each type of parts strictly implemented European ROHS environmental standards；

● Wires are optional and customized；Electrical ratings: ● 30A/15V DC● 15A/30V DC

● 28A/250V AC ● 18A/125V ACTechnical parameters:

● Action temperature range: 30℃-180℃. Temperature is optional and customized.

● Temperature tolerance:¯5℃,¯8℃,¯10℃.● Trip off current range: 1-45A.

● Trip off time: 4-10s.Applications:● Cleaner, Pulverizer , Agitator, Mower.

● Electric power tool, Snow-sweeper

● Washing-machine, Home appliance, Heater element
