vacuum brazed diamond grinding disc for grinding marble,ceramic,FRP [email protected]

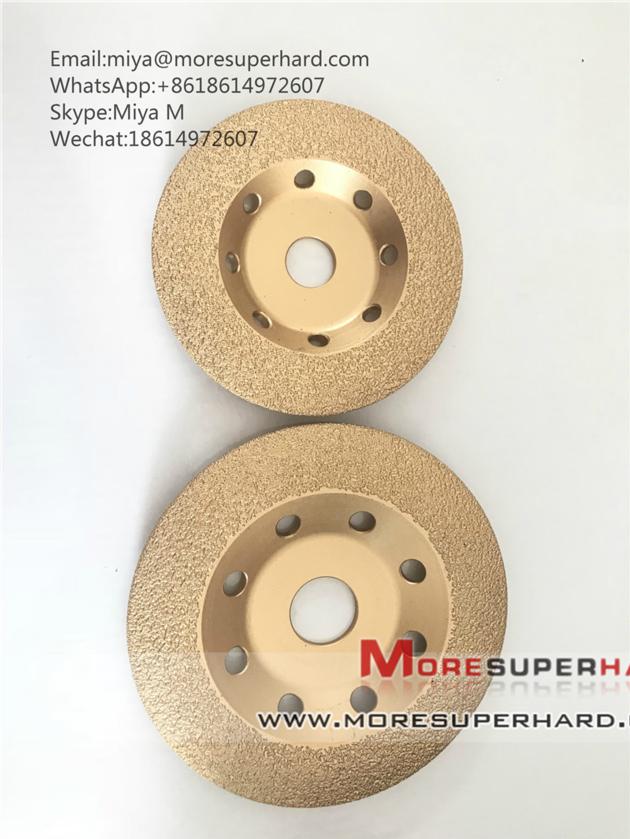

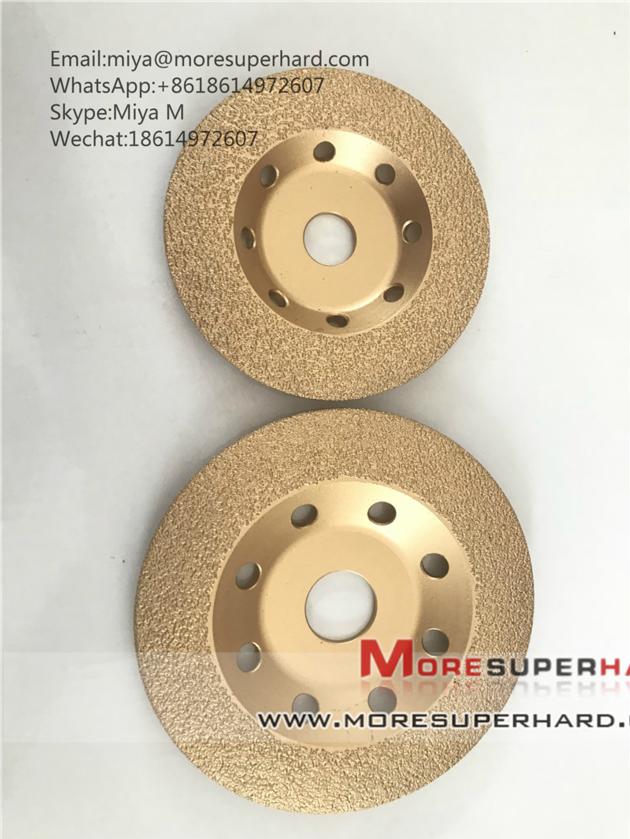

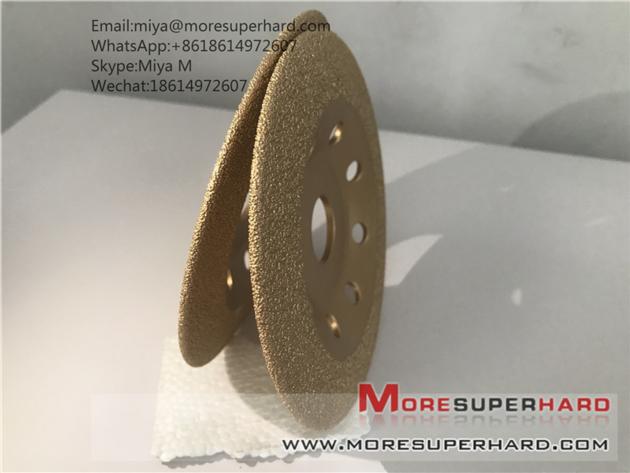

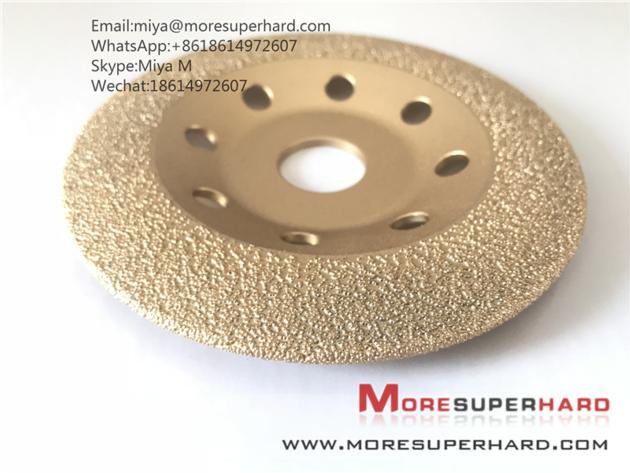

name: vacuum brazed diamond disc
Introduction:Our vacuum brazed diamond wheels are used on hand held grinder and used for grinding, weld cleanup, stock removal and beveling in a wide variety of industry include foundry, metal processing (weld removal and pipe beveling of all ferrous and non ferrous metals) ,auto parts, ship building , stone , ceramic, plastic processing ,and composite materials ,etc
Application: grinding marble, ceramic, FRP

Diamond vacuum brazed grinding disc for grinding Marble, ceramic materials, fiber reinforced plastic ,silicon carbide and artificial stone
Advantages of vacuum brazed diamond grinding disc:
* higher quality process than sintered or laser welded diamond wheel
* long life time. Up to 40 times longer life time than Resin grinding disc
* high efficiency .the efficiency is improved by 100% for grinding FRP slab,compare to resin bond wheel
* single layer of fully exposed diamond fused with nickel at high temperatures and sharp cutting
* no pollution, low noise ,never need dressing
Specifications of vacuum brazed diamond grinding disc:
Model D (mm) H (mm) T (mm)
vacuum brazed diamond disc 100 16 / 22.3 1.5 - 3
115 16 / 22.3 1.5 - 3
Grain Size: Rough 25/30, 30/35, 35/40, Finish 50/60
Others Size And Grit Can Be Customized According To Customers' Requirement.



Tools Workpiece Lifetime Efficiency
The Sintered Disc Marble Table-board 5000cm2 26s
MDC
Vacuum Brazed Grinding Disc Marble Table-board 15000cm2 20s
Resin Grinding Disc FRP Slab 7000m2 40s
MDC
Vacuum Brazed Grinding Disc FRP Slab m2 20s

★The Lifetime of MDC Vacuum Brazed Diamond Grinding Disc is as long as Sintered Disc ,and the efficiency is improved by 30% for grinding Marble Table-board.
★The Lifetime of MDC Vacuum Brazed Diamond Grinding Disc is 40 times longer than resin bond grinding disc, and the efficiency is improved by 100% for grinding FRP slab.

Diameter(Inch/mm) Segment Height(mm) Grit Size(#) Connection Bond
100 2.0-5.0 30#-40#,50-60# 7/8“-5/8"/M14/5/8"-11 Diamond
115 2.0-5.0 30#-40#,50-60# 7/8“-5/8"/M14/5/8"-11 Diamond
125 2.0-5.0 30#-40#,50-60# 7/8“-5/8"/M14/5/8"-11 Diamond
150 2.0-5.0 30#-40#,50-60# 7/8“-5/8"/M14/5/8"-11 Diamond
100 2.0-5.0 30#-40#,50-60# 7/8“-5/8"/M14/5/8"-11 Hard Metal
115 2.0-5.0 30#-40#,50-60# 7/8“-5/8"/M14/5/8"-11 Hard Metal
125 2.0-5.0 30#-40#,50-60# 7/8“-5/8"/M14/5/8"-11 Hard Metal
150 2.0-5.0 30#-40#,50-60# 7/8“-5/8"/M14/5/8"-11 Hard Metal

If you need any products, do not hesitate to contact
Email:*
WhatsApp:+8618614972607
Skype:Miya M
Wechat:18614972607
QQ:1987680230
we also have a series of brazing products, welcom to your consult and choose.
