ultrasonic water meter
| Price: | US$ 100.00 / Piece |
|---|---|
| Minimum Order: | 1 piece |
| Payment Terms: | 100 T/T in advance, L/C |
| Port of Export: | Dalian |
Product Details
| Model No.: | T3-1 | Brand Name: | TSONIC |
|---|
| Certification: | ISO9001; CE |
|---|---|
| Specification: |
Place of origin China
Brand TSONIC (OEM is available) Standard ISO4064-2005; GBT778-2007 Linearity 0.50% Repeatibility 0.20% Measurement fluid Water, sea water, sewage, (Full of pipeline) Fluid temperature 0.1℃~30℃ Working environment Temperature:-10~45℃; Humidity≤100% Pressure 1.6MPa(2.5MPa is optional) Straight pipeline " Upstream: 3D； Downstream: 0D (D means outer pipe diameter)" Climatic and mechanical C class Electromagnetic compatibility class E2 Communication Interface RS485/USART/Infrared Output OCT/TTL/4-20mA Power supply " Built-in Lithium batteries(8 years' operation); DC8~36V; 2-wired 4~20mA" Protection class IP68 Display 9-digit accumulative flow; 4-digit instantaneous Unit " Accumulative flow unit: m±，feet±,GAL,L Flow rate unit: m±/h, GPM,L/m" Data Storage EEPROM/FLASH Measurement cycle Measuring: Once/second; Verification:4 times/second |
Packaging & Delivery
| Packaging: | carton |
|---|---|
| Delivery/Lead Time: | Within 3 days upon receipt of payment |
| Production Capacity: | 30000 sets/year |
Product Description

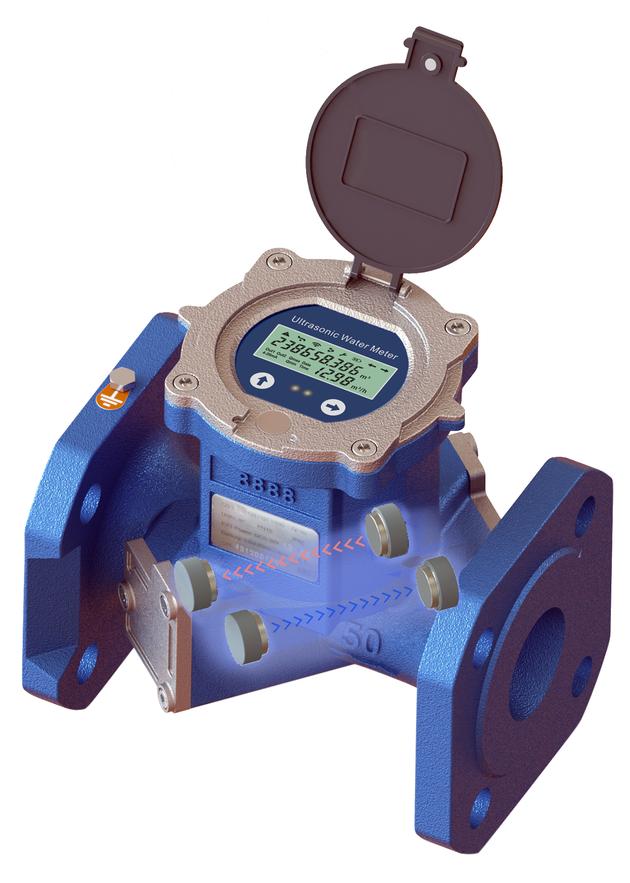

1.Dual-channel design, high accuracy within 1%
2.IP68 protection level, both whole machine and inside parts are water proof.
3.With built-in batch controller and time-accumulator, achieving quantitive water supply.
4.With heat measurement by connecting 3-wired temperature sensor PT1000
5.No rotation or moving parts inside, reliable and stable
|
