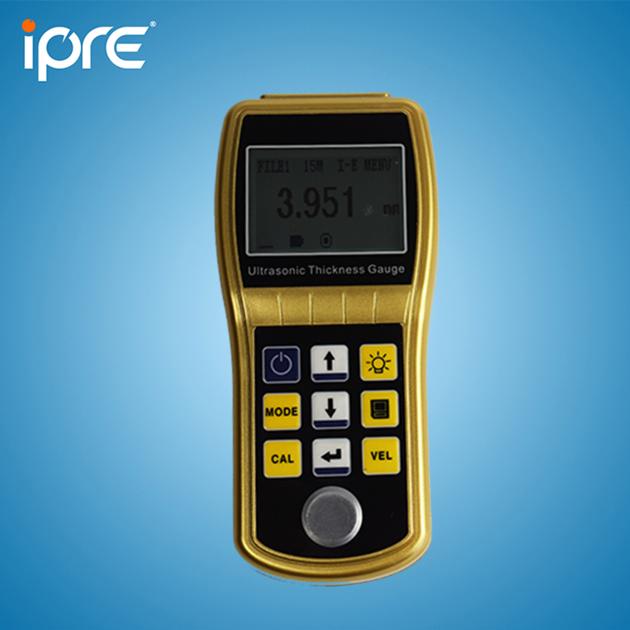

through paint ultrasonic thickness gauges
| Price: | US$ 1300 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | L/C T/T |
| Port of Export: | Qingdao |
Product Details
| Model No.: | UT600 | Brand Name: | IPRE |
|---|
| Certification: | CE.CMC.ISO9001 |
|---|---|
| Specification: |
Features
Ability to measure through paint and eliminate the thickness of paint and coatings using echo to echo time of flying technology Capable of inspecting super-thin work piece (min. thickness of steel is 0.15mm) Digital LCD display(1.8 inch×1.2inch) with backlight 2 modes optional: Echo-Echo mode and Interface-Echo mode USB 2.0 interface for data output. 500 groups of data memory. CMC certificate. Automatic zero calibration High precision, the acquisition of thickness change of 1‰ mm. |
Packaging & Delivery

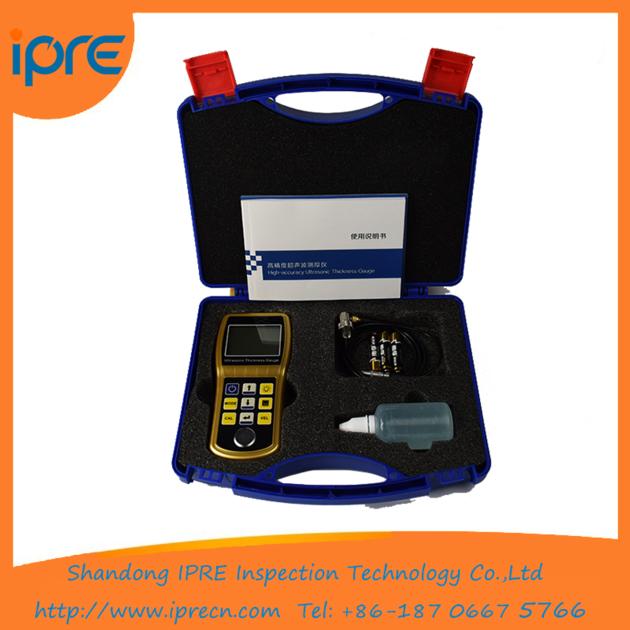

| Packaging: | Each set in a blue plastic carrying case (25*22*7cm), then in outer carton (32*13*27cm) |
|---|---|
| Delivery/Lead Time: | 5 days |
| Production Capacity: | 5000sets per month |
Product Description
Main Technical Specifications

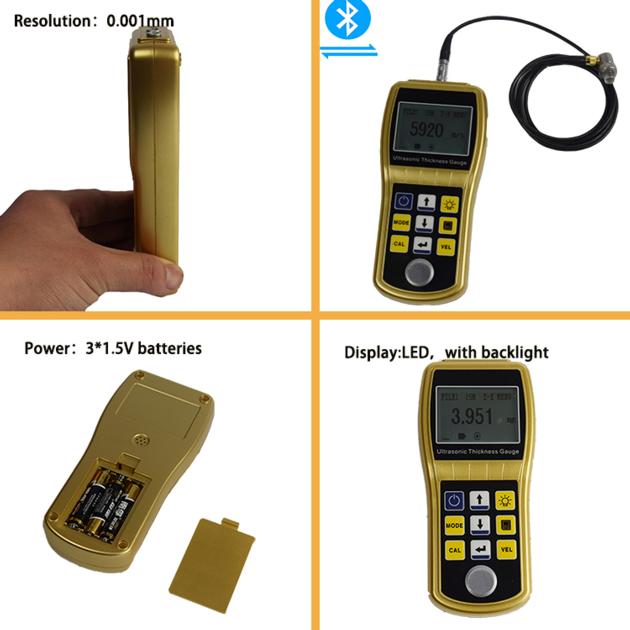

Resolution 0.001mm
Accuracy 0.005mm
Measuring Mode I-E; E-E
Measuring Range 0.15mm-25mm
Transducer frequency 15MHz, 20MHz
Transducer Diameter 15P ￠6
Velocity 1000-9999m/s
Display 128*64 LCD,LED backlighted
Dimensions in inch 6.1×2.7×1.1
Weight 230g
Standard Delivery
Main Unit 1 pc
Transducer (15P￠6) 1 pc
Manual 1 pc
|
