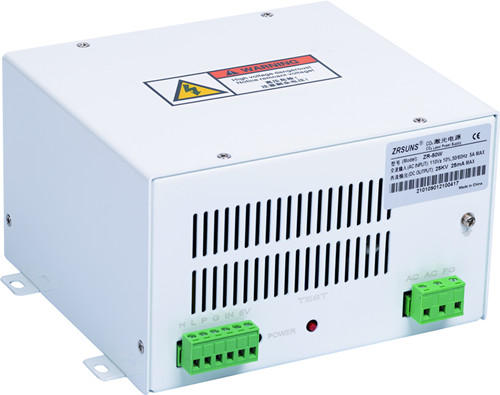

steel case high voltage 50W CO2 laser power source

Price:	US$ 79 / Piece
Minimum Order:	50
Payment Terms:	T/T Western union
Port of Export:	Jinan China

Product Details

Model No.:	zr-50w co2 laser power supply	Brand Name:	ZRsuns

Certification:	CE
Specification:	ZR-50W CO2 power supplies Feature 1. This ZR-50W CO2 power supply adopts G/P/L/G/IN/5V as control signal output port with 5V/24V output and use gray aluminum case. 2. This 50w laser power supply has stable performance: Each co2 power supply has been much more rigorous testing procedures, under full load high temperature (52~55 degrees Celsius) 24 hours of aging, to ensure the stability of each50w laser power supply. 3. Laser power control is simple on this 50w laser power supply, you can use 0 ~ 5V analog signal control the laser power, you can also use the PWM (pulse width modulation) signal to control output laser power. 4. Good compatibility: This PWM/0-5V laser power supply can match with most brand 1000mm 50W CO2 laser tube and it also has a strong adaptability and fast response, engraving, cutting advantages of good effect. 5. Control is simple: This co2 laser power supply selects high or low level control, the use of TTL-level control of the laser can start and stop. At the same time it increases the protection switch, testing is through the external water and ventilation on this PWM/0-5V laser power source. 6. Protection function: This PWM/0-5V laser power supply has open circuit protection: Under the condition of good protective earth, the50w laser power supply can work in open-circuit for a short time, which could avoid the damage to this PWM/0-5V laser power supply.

Certification:

Specification:

ZR-50W CO2 power supplies
Feature
1. This ZR-50W CO2 power supply adopts G/P/L/G/IN/5V as control signal output port with 5V/24V output and use gray aluminum case.
2. This 50w laser power supply has stable performance: Each co2 power supply has been much more rigorous testing procedures, under full load high temperature (52~55 degrees Celsius) 24 hours of aging, to ensure the stability of each50w laser power supply.
3. Laser power control is simple on this 50w laser power supply, you can use 0 ~ 5V analog signal control the laser power, you can also use the PWM (pulse width modulation) signal to control output laser power.
4. Good compatibility: This PWM/0-5V laser power supply can match with most brand 1000mm 50W CO2 laser tube and it also has a strong adaptability and fast response, engraving, cutting advantages of good effect.
5. Control is simple: This co2 laser power supply selects high or low level control, the use of TTL-level control of the laser can start and stop. At the same time it increases the protection switch, testing is through the external water and ventilation on this PWM/0-5V laser power source.
6. Protection function: This PWM/0-5V laser power supply has open circuit protection: Under the condition of good protective earth, the50w laser power supply can work in open-circuit for a short time, which could avoid the damage to this PWM/0-5V laser power supply.

Packaging & Delivery

Packaging:	carton and foam
Delivery/Lead Time:	3-4 working days after payment received
Production Capacity:	4000PCS each month

Product Description

Specification of 50W CO2 laser power supply

lnput Input voltage AC220V®10% (AC110V specified while order)
AC frequency 47~440HZ
Maximum input power 370W
Maximum input current 1.7A
Output Maximum output voltage 25KV
Maximum output current 25mA
(depending on the laser tubes of different manufacturers)
Efficiency More than 90% (Full load)
Response speed Not more than 1ms
Control lnterace TTL multilevel switching control,effective level can be high and low selection (see control wining diagram)
Insulation lnput-output AC 1500V 1 minutes not more than 10mA
lnput-shell AC 1500V 1 minutes not more than10mA
Output-shell Connection
Open Circuit Protection Can be short circuit (requires a good grounding shell,while avoiding the positive electrode and the shell between the arc)
Environmental Requested Working temperature -10℃~50℃
Storage of temperature -20℃~75℃
Relative Humidity Maximum 85%RH (non-condensing)
Altitude 100,000 feet of work
200,000 feet of storage,dose not work
Cooling methods Forced air cooling (fan cooling)
Dimensions (LxWxH) 162mmx145mmx97mm

steel case high voltage 50W CO2 laser power source
