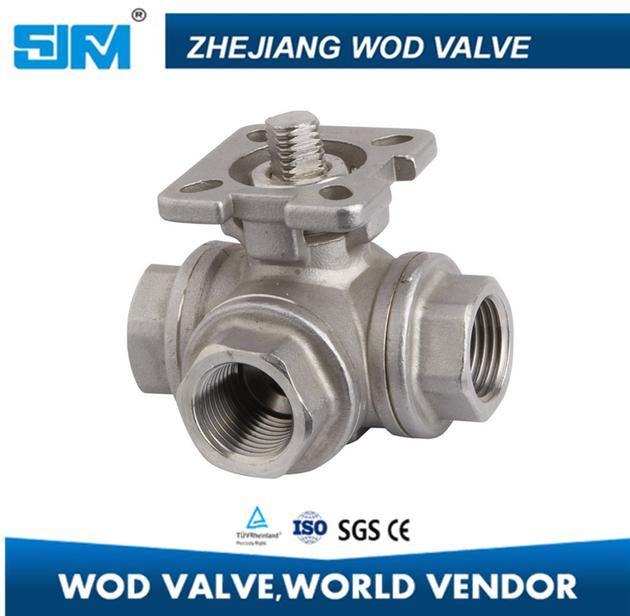

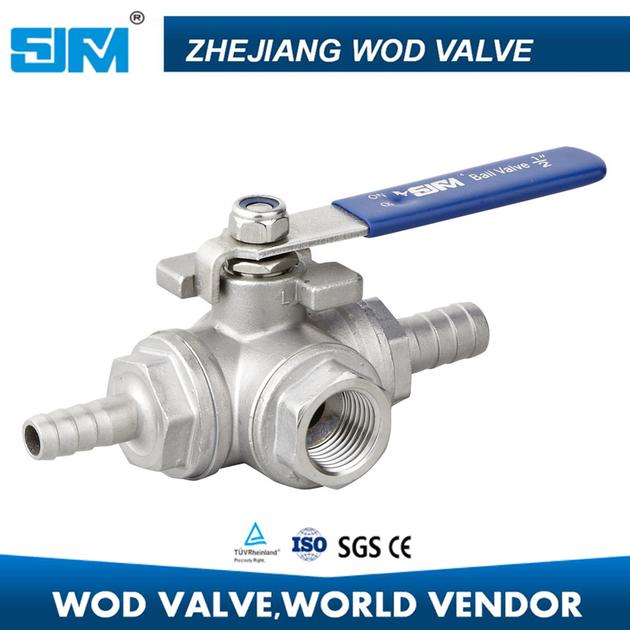

stainless steel 3way ball valve
| Price: | US$ 3.5 |
|---|---|
| Minimum Order: | 100 |
| Payment Terms: | TT LC WEST UNION |
| Port of Export: | NINGBO SHANGHAI |
Product Details
| Model No.: | Q11 | Brand Name: | WOD |
|---|
| Certification: | CE ISO 9001 |
|---|---|
| Specification: |
Product features
Blow-out proof stem design Entirely silica sol precision forging Pressure equalizing port in ball (optional) Reduced port Handle operated Specification:1/2"-2" Material:CF8 CF8M Pressure:1000WOG 1000PSI PN63 Seat material:PTFE RPTFE PEEK Product standard: Product design standard:ASME B16.34 Wall thickness standard:ASME B16.34 GB12224 Thread standard:ANSI B 1.20.1,BS 21/2779,DIN259/2999,ISO228 BSPT BSPP NPT Structural length standard: DIN3202-M3 Inspection standard:API 598 EN12266 Product certification:PED 97/23/EC(CE2138) ISO9001 |
Packaging & Delivery
| Packaging: | 35*40*40 |
|---|---|
| Delivery/Lead Time: | 45DAYS |
| Production Capacity: |
Product Description
Product features
Blow-out proof stem design
Entirely silica sol precision forging
Pressure equalizing port in ball (optional)
Reduced port
Handle operated
Specification:1/2"-2"
Material:CF8 CF8M
Pressure:1000WOG 1000PSI PN63
Seat material:PTFE RPTFE PEEK
Product standard:
Product design standard:ASME B16.34
Wall thickness standard:ASME B16.34 GB12224
Thread standard:ANSI B 1.20.1,BS 21/2779,DIN259/2999,ISO228 BSPT BSPP NPT
Structural length standard: DIN3202-M3
Inspection standard:API 598 EN12266
Product certification:PED 97/23/EC(CE2138) ISO9001
|
