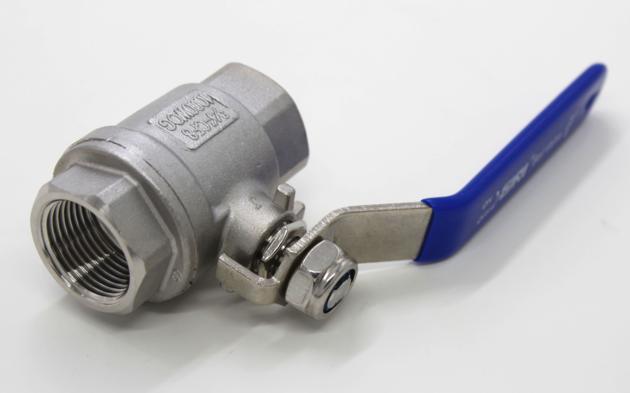

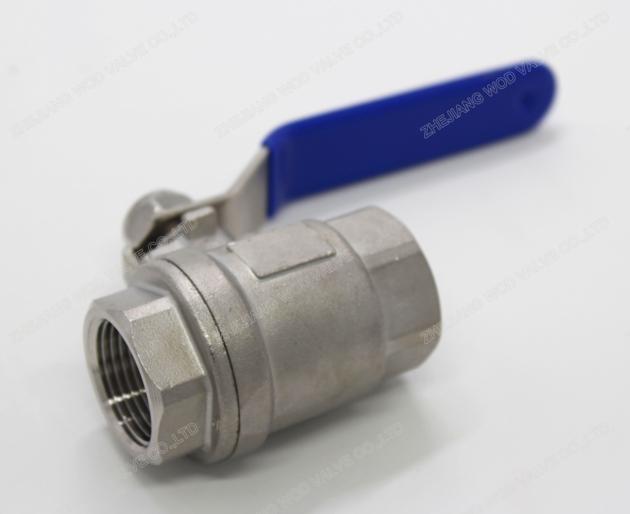

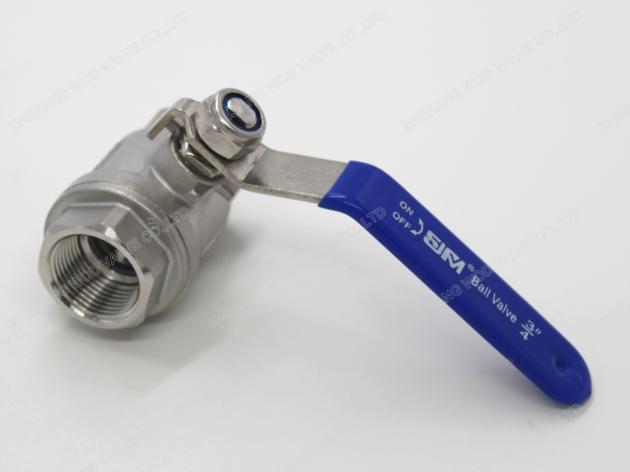

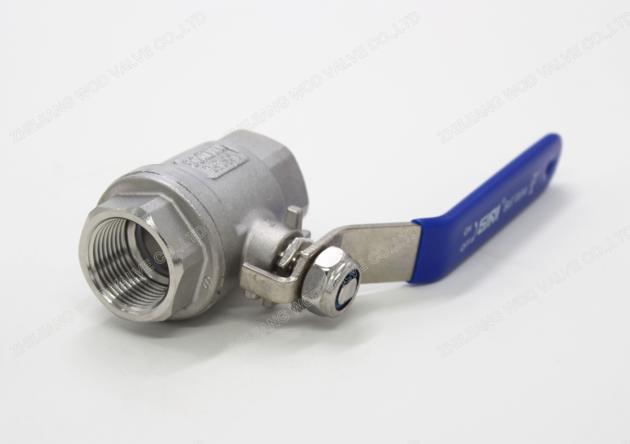

stainless steel 2PC ball valve
| Price: | US$ 3.5 |
|---|---|
| Minimum Order: | 100 |
| Payment Terms: | TT LC WEST UNION |
| Port of Export: | NINGBO SHANGHAI |
Product Details
| Model No.: | Q11 | Brand Name: | WOD |
|---|
| Certification: | CE ISO 9001 |
|---|---|
| Specification: |
Product features Blow-out proof stem design Entirely silica sol precision forging Pressure equalizing port in ball (optional) Full port Handle operated (optional locking handle) Specification:1/4"-2" Material:WCB CF8 CF8M Pressure:2000PSI Seat material:PTFE RPTFE PEEK Product standard Product design standard:ASME B16.34 Wall thickness standard:ASME B16.34 GB12224 Thread standard:ANSI B 1.20.1,BS 21/2779,DIN259/2999,ISO228 BSPT BSPP NPT Structural length standard: DIN3202-M3 Inspection standard:API 598 EN12266 Product certification:PED 97/23/EC(CE2138) ISO9001 |
Packaging & Delivery
| Packaging: | 35*40*40 |
|---|---|
| Delivery/Lead Time: | 45DAYS |
| Production Capacity: |
Product Description
Product features
Blow-out proof stem design
Entirely silica sol precision forging
Pressure equalizing port in ball (optional)
Full port
Handle operated (optional locking handle)
Specification:1/4"-2"
Material:WCB CF8 CF8M
Pressure:2000PSI
Seat material:PTFE RPTFE PEEK
Product standard
Product design standard:ASME B16.34
Wall thickness standard:ASME B16.34 GB12224
Thread standard:ANSI B 1.20.1,BS 21/2779,DIN259/2999,ISO228 BSPT BSPP NPT
Structural length standard: DIN3202-M3
Inspection standard:API 598 EN12266
Product certification:PED 97/23/EC(CE2138) ISO9001
|
