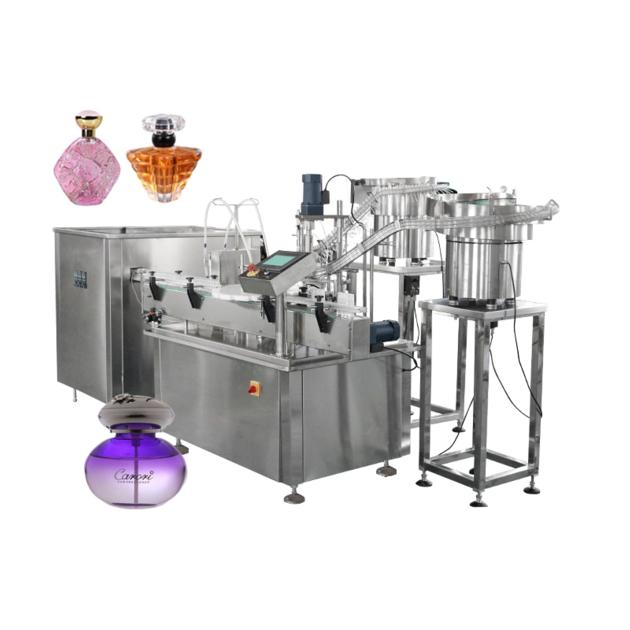

spray bottle filling machine

customize automatic high quality parfums filles
degerming mite spray filling machine degerming mite spray filling machine degerming mite spray filling machine
process: bottle feeder-filling and capping-labeling

bottle feeder

This disorder bottles on the disc are supplied to the conveyor of the next procedure orderly through the rotation of the disc, and there is buffering function just for big bottles, meet the GMP requirements, this machine just for big plastic bottles and glass bottles

1， it has simple structure and the functions of tidying and buffering bottle
2， it is made of 304 stainless stee. Complying the requirement of GMP

Model：HCG
Weight：150kg
Power supply：380V/50HZ
Totally power：0.15KW
Turntable diameter：600-1200mm

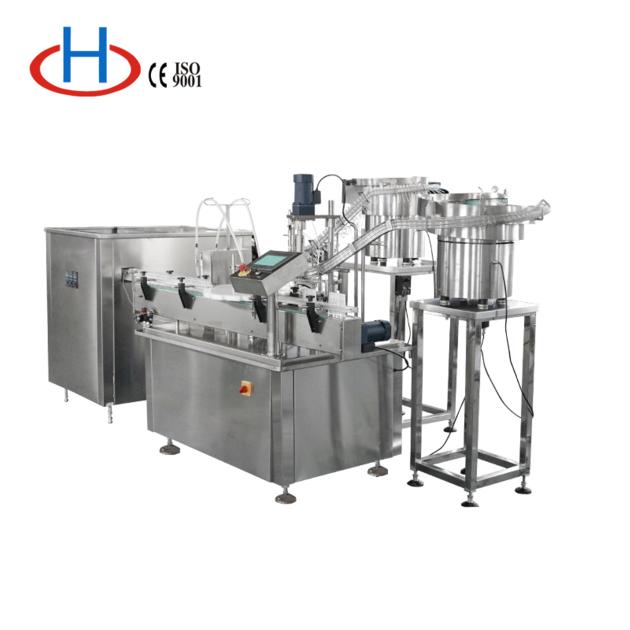

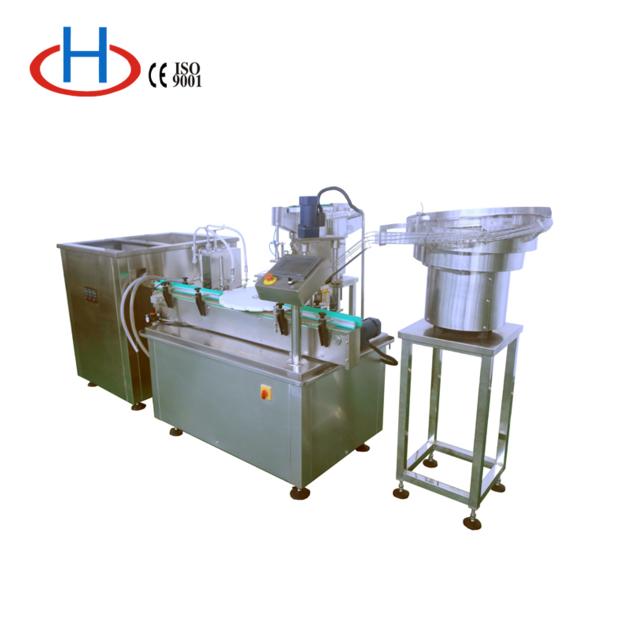

filling and capping


Brief introduction:


Brief introduction
Spray filling capping machine is specially for pump bottle. This machine is available for series of round and flat bottles. The machine has accurate measurement, stable, screwing and easy operation , widely used in pharmaceutical and cosmetic industry

Characteristic
1, all main electrical components are well-known brand , no bottle no filling
2, pump positioning device, ensure the hose of pump enter bottle mouth prOPERLY
3, the machine is designed according to the requirements of GMP
Main Technical Parameters
Model
HCFGX-60
Filling volume
1-500g
speed
30-50bpm/60-90bpm
Filling accuracy
≤¯1%
power supply
200V/50HZ
Qualified rate
≥99%
Air supply
1.5M3/H 0.4-0.7Mpa
Power
1.5kw
Weight
500kg
dimension
2000*1000*1500mm

degerming mite spray filling machine degerming mite spray filling machine degerming mite spray filling machine
labeling


It is intended mainly for sticking label outside the side face of round or quadrate bottles, the machine words stably and reliably , which leads to smooth labels, clearly printed dates and batch numbers(the printer allows three rows of characters) this machine is provided with a multiple control system, which assures automatic stop at the lacking or breaking of labels as well as at the lacking of bottles, this product conforms to the specification of GMP absolutely, which is widely used in pharmaceutical, foods and chemical industries.

Labeling exact and high precision
No bottle no labeling ,it can monitor
And correct automatically if there will be no label
This machine can be used not only single but also joining in automatic packing line

Productivity：0-100Bottle diameterΦ20-Φ100
Labeling precision≤¯1mm
Label length 20-200mm
Label width10-100mm
Power 0.5kw
Power supply：220V/50hz
Weight 250kg
Dimension ：2000*650*1500
