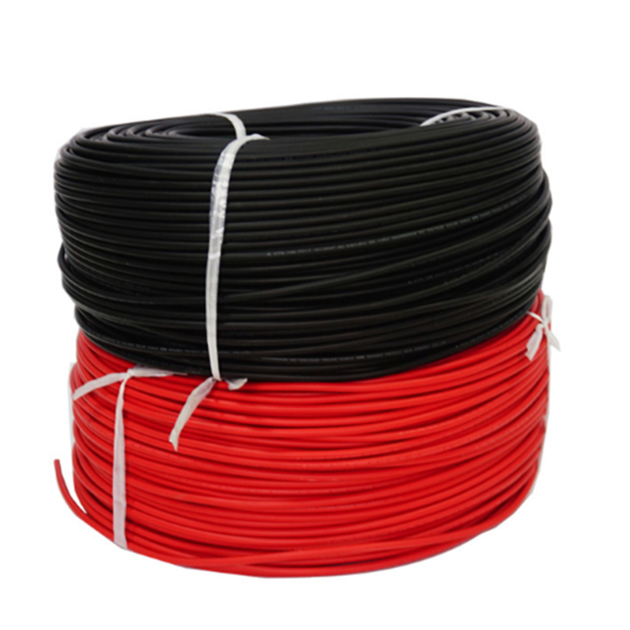

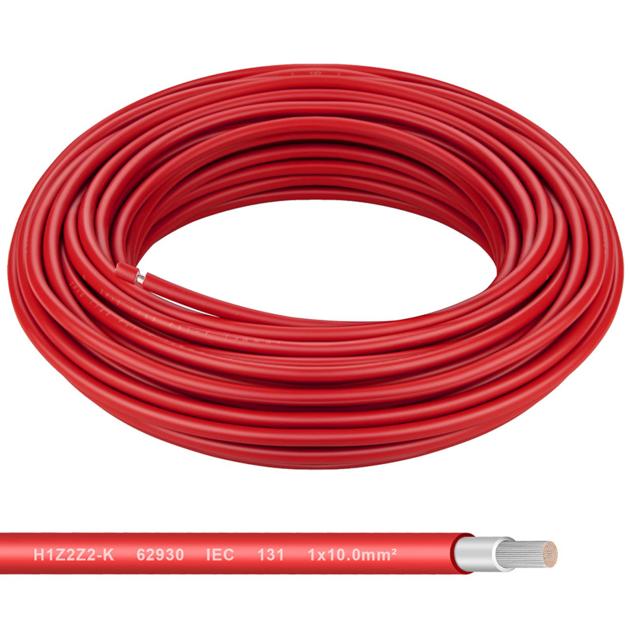

Single Core DC Solar PV Cable

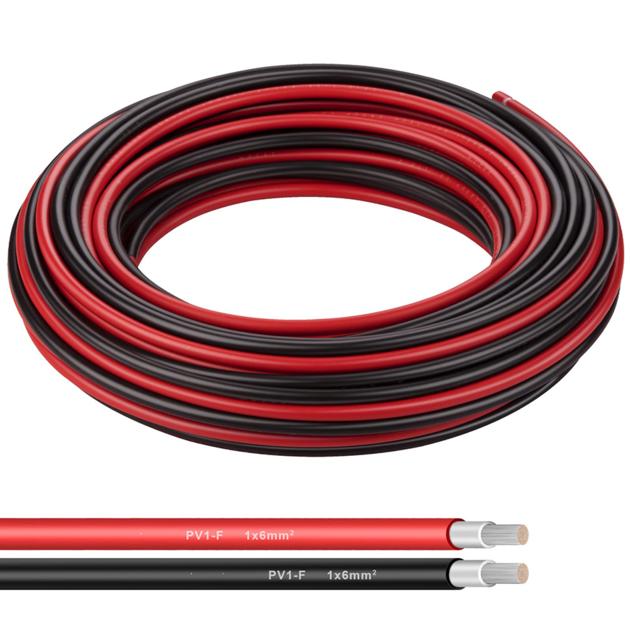

PV1-F
KEY APPLICATIONS:
Single SOLAR CABLE, Double Insulated,Halogen free,Flame retardant
Internal wiring for solar panel and photovoltaic applications
TECHNICAL DESCRIPTION:
Ambient Temperature '-40℃~+90℃
Test Voltage 6500V, 50Hz, 5min
Number of Cores Single core
Rated voltage Max DC 1.8kV
Max Temperature at conductor '+120℃

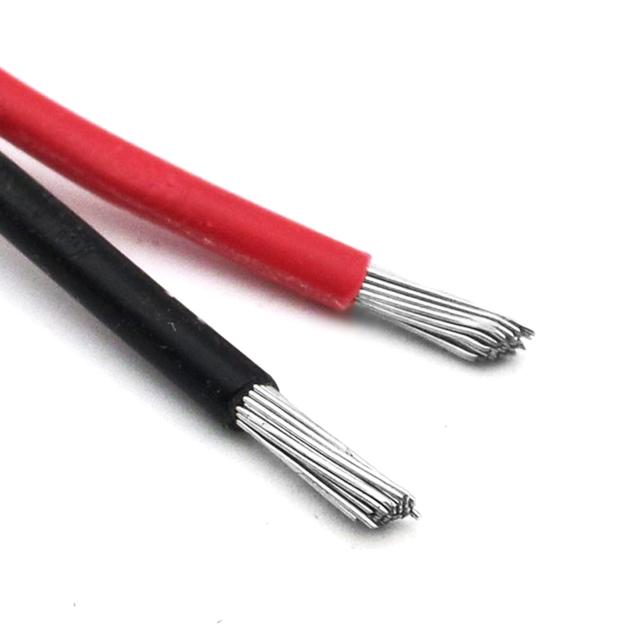

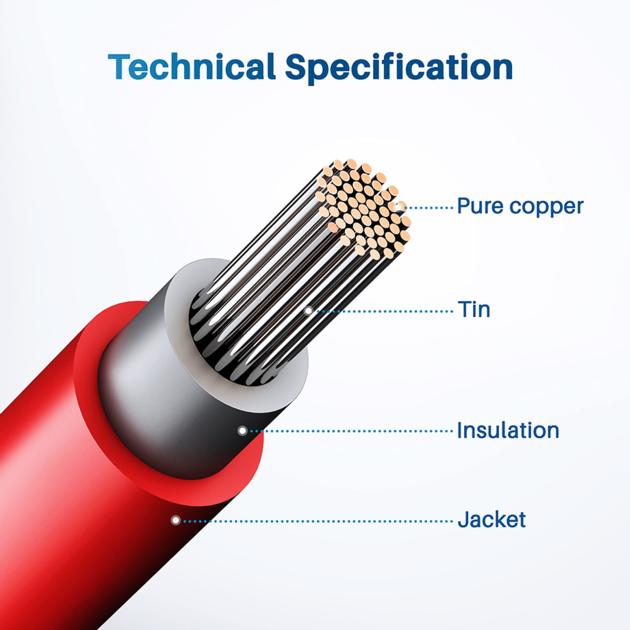

Conductor Tinned Copper
Insulation Material XLPO
Jacket Material XLPO
STANDARDS:
Flame test IEC60332-1
Weathering /UV-resistance HD605/A1
ACID and Alkali resistance EN60811-2-1
TECHNICAL DATA:
Cross Section
(mm®) Conductor Constuction
(No./mm) Insulation
Min. Thickness
(mm Jacket Min.Thickness
(mm) Cable Od. (mm)
1.5 22x0.29 0.7 0.8 4.8
2.5 36x0.29 0.7 0.8 5.5
4 56x0.29 0.75 0.8 6.2
6 84x0.29 0.8 0.8 7.00
10 80x0.4 0.8 0.9 8.5
16 120x0.4 1.0 1.0 10
25 196x0.4 1.0 1.0 12
35 276x0.4 1.2 1.2 13.00
