Coil thickness: 0.3-3.0mm
Coil width:400-2000mm
Productin speed:20-120m/min
Pipe material: HR, CR, PPGI, GI,AL,CU,etc
Product description: SP(0.3-3.0) steel coil slitting machine manufacturers is applicable to coils of various specifications with the thickness of 0.3-3.0mm and width 500-2000mm. it can produce HR, CR, PPGI, GI,AL,CU.

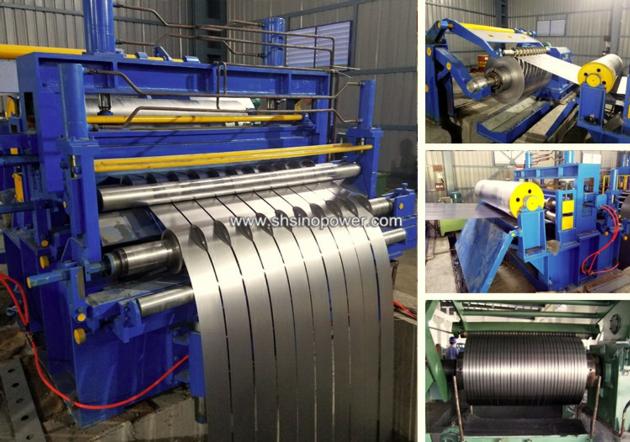

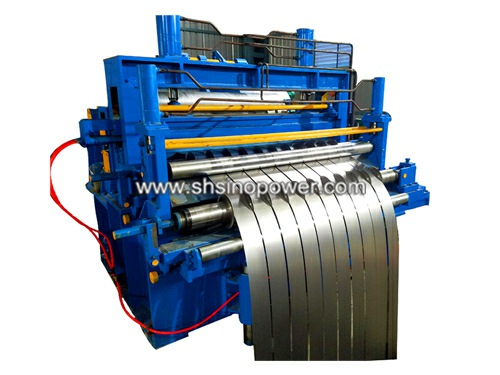

SP(0.3-3.0) slitting machine is applicable to coils of various specifications. It is used for slitting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, slitting and recoiling. It has advantages such as proper layout, easy operation, highly automated and high production efficiency.


1. Technical Parameters
Model Thickness Coil Width Coil Weight Line Speed Coil Material
mm mm tons m/min
SP(0.2-2) 0.3-2.0 400-1600 ≤20 0~150 δs≤230N/2,

Cold-rolled Coil,

Hot-rolled Coil,

Stainless Coil,

Galvanized Coil,

Aluminum Coil,

Copper Coil,

etc
SP(0.3-3) 0.3-3.0 400-1600 ≤20 0~120
SP(0.4-4) 0.4-4 500-2200 ≤25 0~100
SP(1-6) 1-6 500-2200 ≤25 0-80
SP(1-8) 2-8 500-2200 ≤25 0-60
SP(2-10) 2-10 500-2200 ≤35 0-60
SP(2-12) 2-12 500-2200 ≤35 0-40
SP(3-16) 3-16 500-2300 ≤35 0-40
SP(5-20) 5-20 500-2300 ≤35 0-20

2. Process Flow

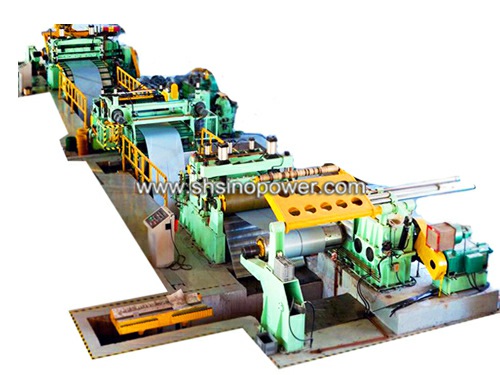

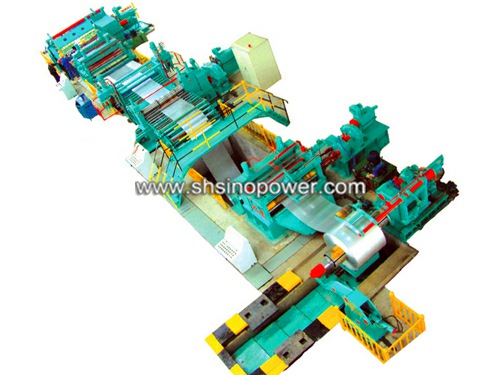

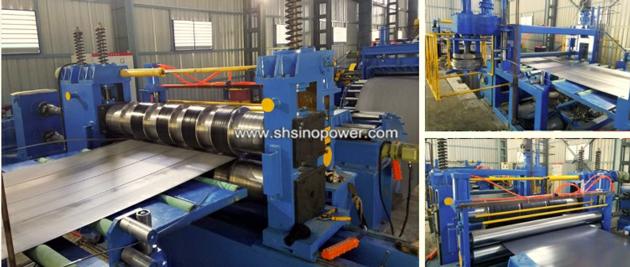

Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control
