shsinopower.com- steel coil slitting machine

steel coil slitting machine-shsinopower.com
Coil thickness: 0.4-4.0mm
Coil width:400-2000mm
Productin speed:20-100m/min
Pipe material: HR, CR, PPGI, GI,AL,CU,etc

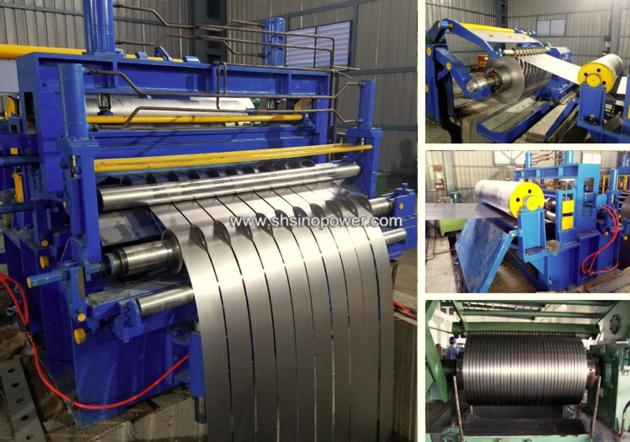

SP(0.4-4.0) Steel coil slitting machine is applicable to coils of various specifications. It is used for steel slitting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, steel slitting and recoiling. It has advantages such as proper layout, easy operation, highly automated and high production efficiency.

1. Process Flow of steel coil slitting machine

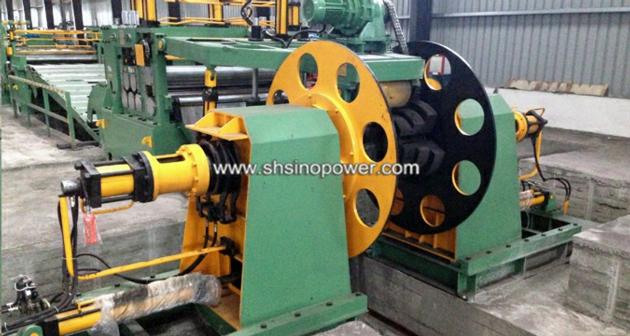

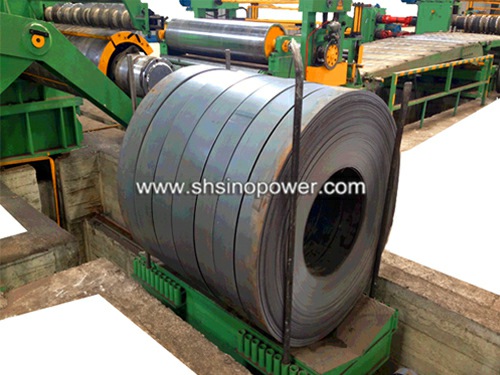

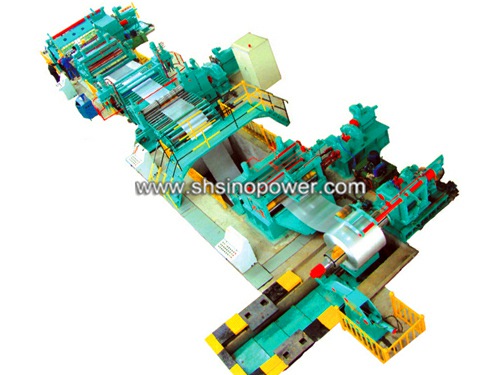

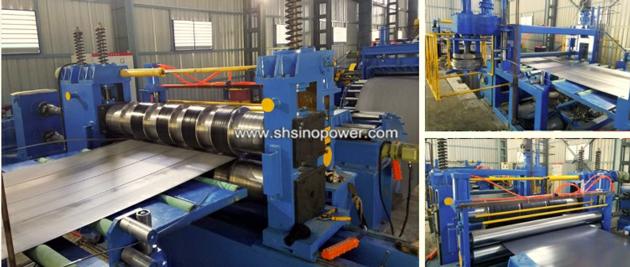

Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control

2. Technical Parameters of steel slitting machine
Model Thickness Coil Width Number

of Strip Line Speed Coil Material
mm mm pcs m/min
SP(0.2-2) 0.3-2.0 400-1600 8~20 0~150 δs≤230N/2,

Cold-rolled Coil,

Hot-rolled Coil,

Stainless Coil,

Galvanized Coil,

Aluminum Coil,

Copper Coil,

etc
SP(0.3-3) 0.3-3.0 400-1600 8~20 0~120
SP(0.4-4) 0.4-4 500-2200 8~20 0~100
SP(1-6) 1-6 500-2200 5~15 0-80
SP(1-8) 2-8 500-2200 5~12 0-60
SP(2-10) 2-10 500-2200 3~10 0-60
SP(2-12) 2-12 500-2200 3~10 0-40
SP(3-16) 3-16 500-2300 2~8 0-40
SP(5-20) 5-20 500-2300 2~8 0-20
