Coil thickness: 2.0-8.0mm
Coil width:500-2200mm
Productin speed:20-60m/min
Pipe material: HR, CR, PPGI, GI,AL,CU,etc

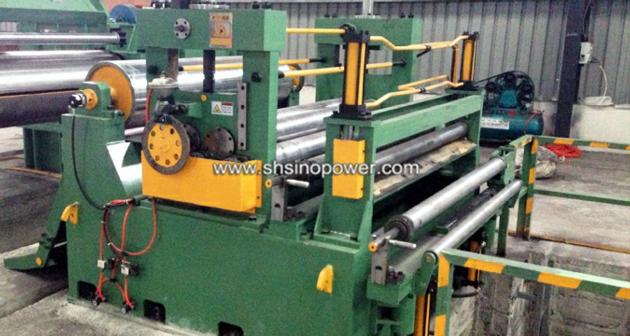

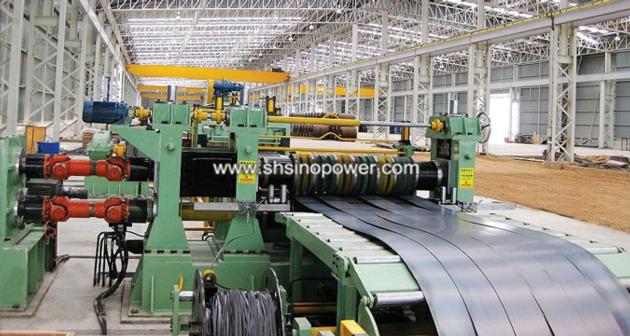

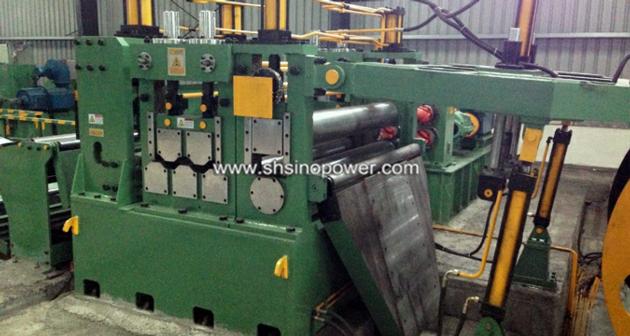

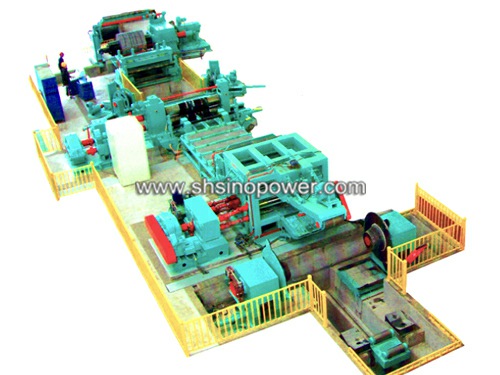

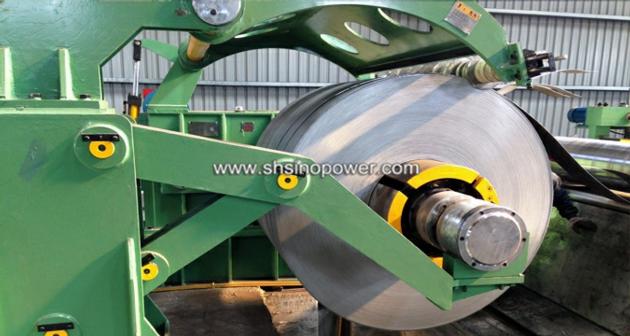

SP(1-8) automatic strip cutting machine suppliers is applicable to coils of various specifications. It is used for cutting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, slitting and recoiling. It has advantages such as proper layout, easy operation, highly automated and high production efficiency.

1. Process Flow
Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control

2. Technical Parameters of metal strip cutting machine suppliers
Model Thickness Coil Width Coil Weight Line Speed Coil Material
mm mm tons m/min
SP(0.2-2) 0.3-2.0 400-1600 ≤20 0~150 δs≤230N/2,

SP(0.3-3) 0.3-3.0 400-1600 ≤20 0~120
SP(0.4-4) 0.4-4 500-2200 ≤25 0~100
SP(1-6) 1-6 500-2200 ≤25 0-80
SP(1-8) 2-8 500-2200 ≤25 0-60
SP(2-10) 2-10 500-2200 ≤35 0-60
SP(3-14) 3-14 500-2200 ≤35 0-40
SP(3-16) 3-16 500-2300 ≤35 0-40
SP(5-20) 5-20 500-2300 ≤35 0-20
