robot wrapper
| Price: | US$ 1 / Set |
|---|---|
| Minimum Order: | 1 Set |
| Payment Terms: | T/T LC |
| Port of Export: | Shanghai or Ningbo |
Product Details
| Model No.: | SCR-600B | Brand Name: | AUSIM |
|---|
| Certification: | |
|---|---|
| Specification: |
Model
SCR-600B Power AC220V,1P,50/60HZ Battery memory 80Ah Charging time 7Hrs/time,200Pallets/time Working speed 90m/min Packing height 2400mm(optional 2800mm) Materials LLDPE,W500mm,Diameter˂250mm Packing size Min:600*600mm-Max:no limit Weight About 300kg |
Packaging & Delivery
| Packaging: | Steel frame |
|---|---|
| Delivery/Lead Time: | 30 working days |
| Production Capacity: | 20-40pallet/hour |
Product Description

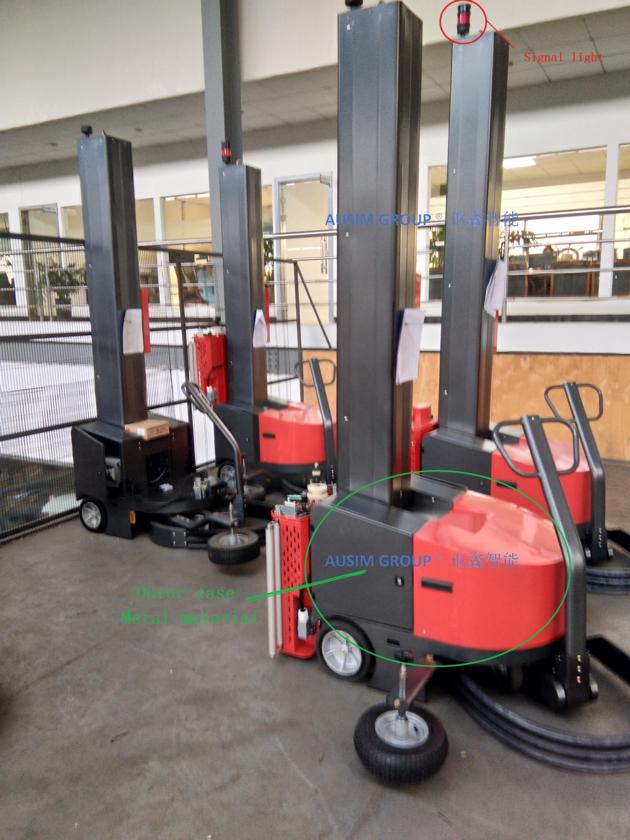

SCR-600B is a self-propelled stretch-film wrapping robot for palletized loads with different shapes, sizes and weight. It is quipped with a digital color display 7,2" that allows, in a very simple and functional way, to regulate the programs and the wrapping parameters easily.
Automatic walking pre-stretch wrapping operation, it can work continuously for 8 hours.
The control system is controlled by the PLC system to drive the motor to control the movement of the mechanical transmission mechanism to achieve stepless speed regulation. The system is stable and reliable, and the equipment is easy to use and maintain.
It can automatically detect the height of the outer packaging, the number of equipment packaging, etc., can be preset to different packaging modes to meet the different packaging requirements of different types of packaging.
film-drawing mechanism: mechanical pre-stretch type (film pre-stretch ratio up to 1:2.5~3).
|
