robot application case of 3C parts: Air clip for micro and small parts

Robot grippers: the combination of grippers is applied to: air grippers to pick up tiny parts in the 3C industry;
Select according to the shape, volume, material, and working conditions of the gripping object to achieve the best gripping effect.

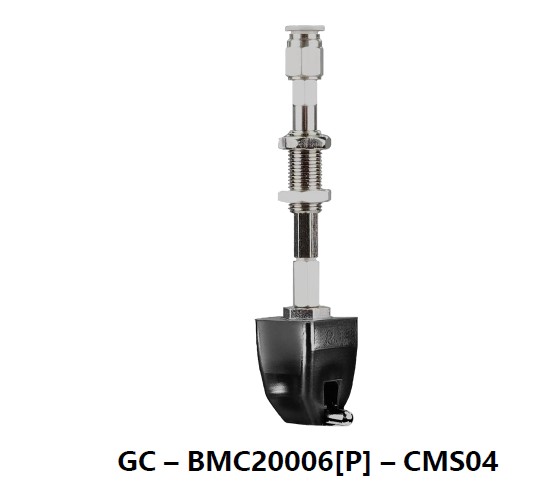

Combination code: GC – BMC20006[P] – CMS04, Include:
1. Gripper module:: B-20005V----2 sets;
Features:
1.1 It can be installed in the straight-through intake connection module [CM] series or the test-through intake flange connection module [FCM] series;
1.2 You can choose straight-through air intake or side air intake;
1.3 The fingertips are open under positive pressure and clamped under negative pressure. It is recommended to use it with an air drive. The fingertip distance G can be adjusted by working positive pressure;
1.4 Air clamp B-20006[P] can be replaced separately;
1.5 Fitting diameter: 11mm;
1.6 Net Weight: 10.5g;
1.7 Max Load: 30 g;
1.8 Force: 0.3 N ;
1.9 Max Frequency: 300 times/min;
2.0 Precision: 0.05 mm
2.1 Safe pressure: +80kPa;
2.2 Life time: 1.5 million times.

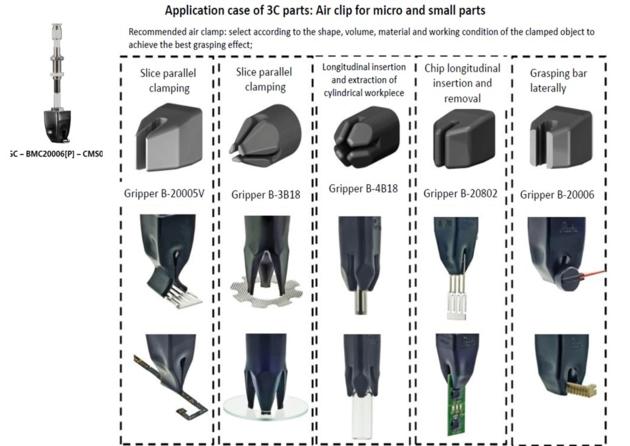

3. There are 5 types of jaws for selection:
3.1 Thin slices are clamped in parallel; air clamp model: B-20005V;
3.2 Inner hole and outer support, air clamp model: B-3B18;
3.3 Longitudinal insertion and extraction of columnar workpieces, air clamp model: B-4B18;
3.4 Longitudinal insertion and removal of thin slices, air clamp model: B-20802;
3.5 Horizontal grasping of rods, air clamp model: B-20006.

4. Passive driver – standard type: iPCU2------ 1 sets.
