resin wheels for glass straight edging machine and beveling [email protected]

Shape: cup, bowl and silent wheel

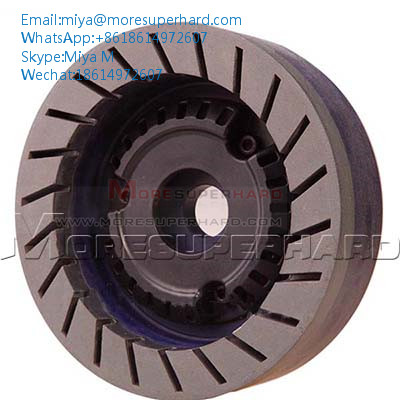

Brief introduction : resin diamond wheels for glass .Resin silent beveling wheel is resin bond, cup shaped diamond grinding wheel, mainly used for glass edge grinding, working silently.
Application: straight edging machine and beveling

Details
Applicable machine of resin diamond wheels:
glass straight edging machine, glass double edging machine, Beveling machine ( such as Deway, ZXM, BOTTERO, BAVELLONI, bovone, Schiatti angelo and Glassline )
Advantages of Resin Diamond Grinding Wheel：
light weight and low noise,
better wear resistance,
long service life,
grinding glass with a variety of thickness.
Model and type of resin diamond wheels for glass:
applicable machine shape D (mm) W (mm) T (mm) H (mm) Grit (#)
straight line edger resin diamond cup wheel 100 10 10 12, 22, 50 180 / 240
130 10, 15 10
150 10, 15 10, 12

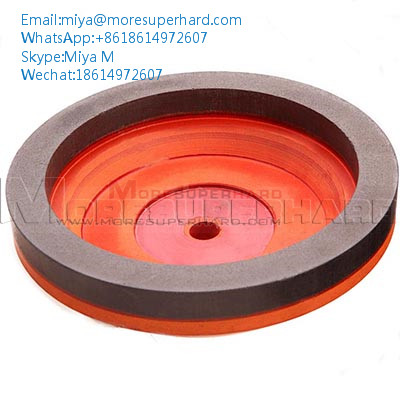

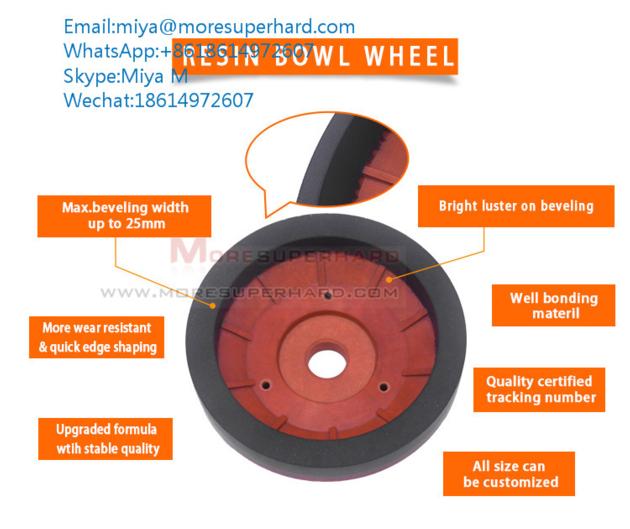

beveling machine resin diamond bowl wheels 150 10, 15 15, 10 12, 22, 50 240
silent resin diamond wheels 150 15 10 12, 22, 50 240
other specification can be made according to customers requirements

Size:
outside diameter(mm) work rim size(mm) hole size(mm) grit
150 10*10 12/50 180#/240#/320#
130 10*10 12/50 180#/240#/320#
150 15*10 12/50 180#/240#/320#
130 15*10 12/50 180#/240#/320#

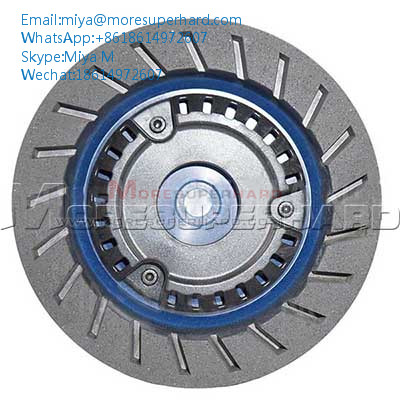

Turbo Rein Cup Wheel (Bakelite plate)
Code Diameter(MM) Bore(MM) Working Rim(W*X) MM Grit

HYD208
150 12/22//50 16x10 240#,320#,400#,500#,600#
150 12/22/50 20x10
Remark : Customized service is available
For machine All Chinese glass machines and Italian glass machines.
ADA-BOTTERO-BAVELLONI-BOVONE-BUSETTI-LATTUADA- SCHIATTI-ZAFFERANI

Application:Turbo Resin cup wheel (Bakelite plate) is mainly used for double edger machine and beveling machine
Wheel Type:Diamond grinding wheel, Resin bond wheel, 10S/ BD/ BK /X3000 /X5000 Polishing wheel, fetl wheel etc.


Our products Range:

1. vitrified bond/resin bond/Metal bond/Electroplated diamond grinding wheel & other diamond tools
2. PCD milling tools, pcd turning tools, pcd drilling tools, pcd engraving tools,pcd/pcbn inserts, pcd/pcbn cutting tools, pcd/pcbn grooving tools,CBN inserts
3. PCD/TSP diamond, CVD diamond tools, Natural diamond tools, diamond abrasive tools
4. diamond grinding&cutting discs, diamond cutting blade, diamond cup wheel, diamond dressers
5. Roller cutting tools, PDC cutters, pdc drill bits& pdc core bits
6. PCD tool grinder & pcd grinding machine

Please don't hesitate to contact me if you have any needs:miya AT moresuperhard.com
Our company also produces a series of diamond and CBN tools,welcome to consult and choose at any time
