resin diamond & CBN cut - off wheels [email protected]

Introduction to resin diamond grinding wheel
The resin bond diamond wheels are mainly used for grinding tungsten carbide and non-metal materials. Various kinds of dimensions and shapes are available, such as flat shapes, cup shapes and dish shapes, etc.

Feature
1:Name:resin diamond & CBN cut - off wheels
2:Type Code: 1A1R
3:Material: Diamond, CBN
5:Line speed: 35~80 (M/S)
6:Grit: 80#~5000# (D251-D1)
7:Application Industry: Jewelry, Automobile, Aerospace, Oil drilling, Coal mining, Metal processing
8:Certification: ISO 9001:2008
9:Diamond grit: #100, #150, #200, #300, #400, or upon your request
10:Type: straight wheel, bowl-shaped wheel, cup-shaped wheel, dish- shaped wheel
tapered one side or two sides and so on

Product Feature
1:Easy to dress
2:Good self-sharpening
3:High finishing of work piece
4:Specially for precision grinding and polishing


Resin bond diamond grinding wheel model:
1: parallel grinding wheel
2: parallel arc grinding wheel
3: double-sided concave grinding wheel
4: double bevelled grinding wheel
5: bowl wheel



Features of resin bond diamond & CBN cutting wheels:
1：Improve the cutting quality and efficiency:
2：Chip free cutting, Cuts faster
3：Good surface finish
Applications of resin bond diamond & CBN cut-off wheels:
Ceramics, Optical Glass, Quartz Tubing Rods, Splitter, IR Filter, QFN, Carbide, Ultra Hard Steels and Metals .Resin Bond is the softest of all the bonds, used in applications that require a smooth surface finish.
The specifications of resin bond cutting wheels:

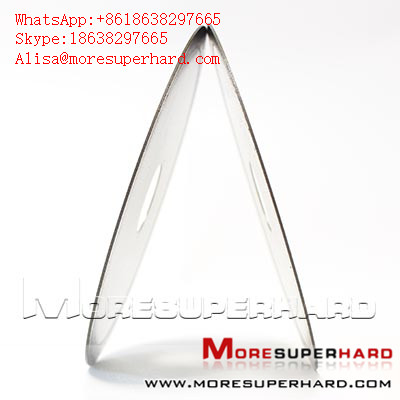

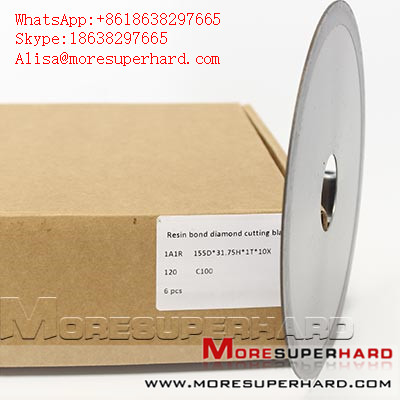

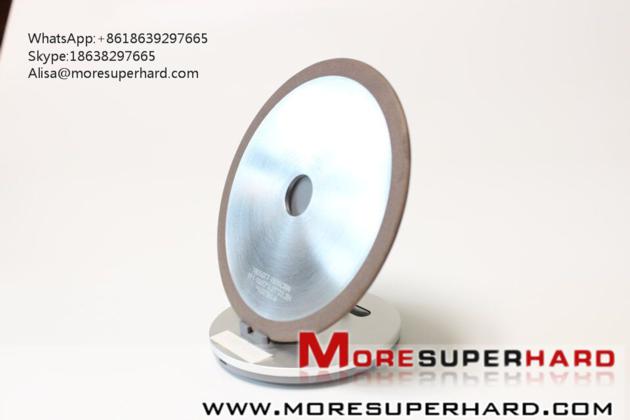

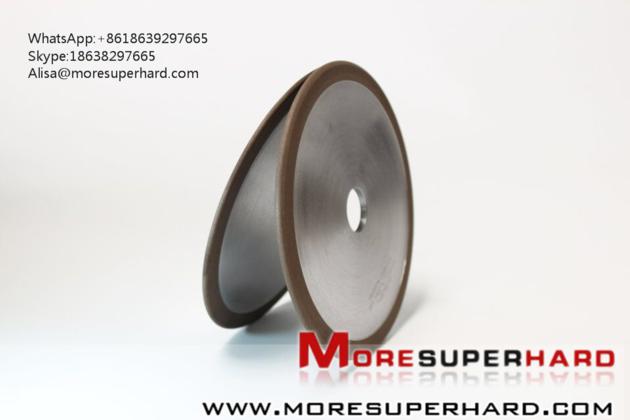

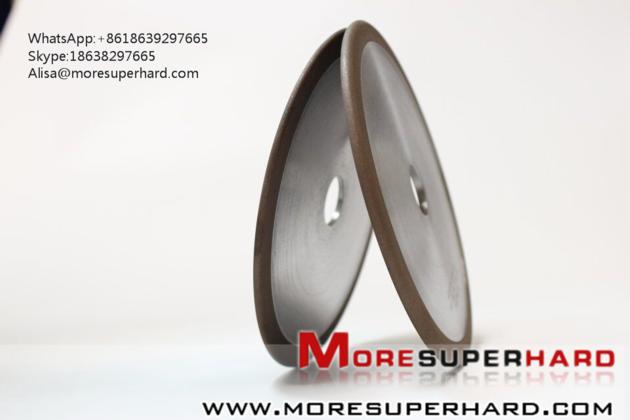

1A1R diamond and CBN cutting wheels
OD (mm) 50 - 200 mm
Grit Size 200 - 5000 #
Thickness (mm) 0.1 - 2.0 mm (Based on diamond grit size)
Other size can be made according to customers requirements.Email:*



Why choose our grinding wheel
Our product’s advantages:
1.High grinding efficiency
2.Wonderful edge quality
3.Long service life
4.High polishing efficiency
5.Large Exports
6.Considerable after-sell service
7.Amazing performance
8.Various types and sizes available
9.Direct Factory Manufacturer
10.Backing/substrate material: Aluminum
11.Abrasive layer: diamond
12.Bond: vitrified
13.Excellent cutting edges
14.Reduced cycle times
15.Custom Engineered
