reel wrapper
| Price: | US$ 8800 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | tt |
| Port of Export: | shenzhen |
Product Details
| Model No.: | mr203 | Brand Name: | MQSPAC |
|---|
| Certification: | iso |
|---|---|
| Specification: |
1. Technical Parameter
Item Parameters Model MS 203 Packing speed 20~40 Rolls/hour Reel diameter φ500-1500mm ,customized Reel width 500-1600mm ,customized Turntable diameter 2000mm ,customized Turntable weight capacity 2000kg ,customized Turntable height 460mm ,customized Turntable speed 0-12rpm Adjustable turntable speed ,customized Control system PLC control, wrap layers adjustable,customized Film carriage Power pre-stretch system up to 350% with adjustable,customized Power 2.0KW, 380V 50HZ 3P Machine size 3200 x 2000 x 2200mm Machine weight 1100kg Pneumatic system 0.6-0.8MPa,200NL/min 2. Professional Reel Wrapper Control Introduction 1.Reel wrapper ideal for wrapping paper rolls & non-woven rolls; 2.Especially good for narrow rolls, with top press arm to hold the roll; 3.Powered pre-stretch film carriage, ratio 250%(customized). 4.Automatic wrapping according to pre-set parameters. Friendly user interface for setting wrap cycles and film tension. 5.Auto height detection, turntable home position, forklift sockets for easy moving 6.Full wrapping of rolls,all-round protection products, moistureproof, prevent scratching, reduce scrap rate; 7 It is ideal for reel axial wrapping-across the cylindrical diameter then along the longitudinal axis; 5 According to the actual needs of the packaging, can choose standard reel wrapper or automatic ejection type, or automatic online equipment. |
Packaging & Delivery

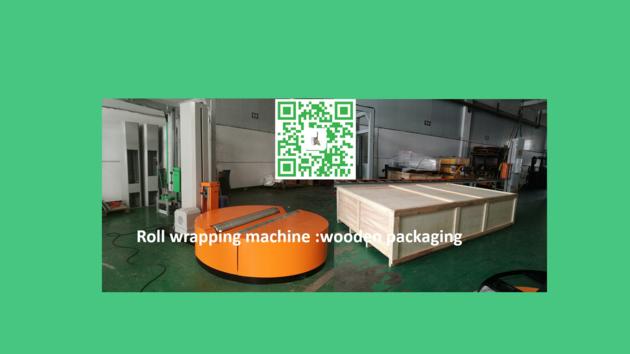

| Packaging: | wooden |
|---|---|
| Delivery/Lead Time: | 25days |
| Production Capacity: | 100/year |
Product Description

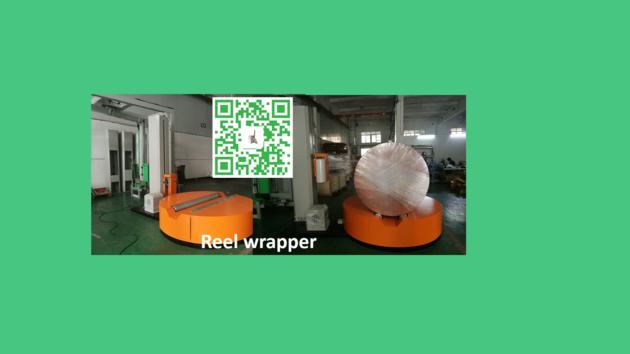

MS203 Reel wrapper is a semi-automatic wrapping system with chain-driven which designed to stretch wrap roll product by turning the roll on steel blocking rollers while spinning the product on a turntable. This creates a “cocoon” wrap pattern and provides complete protection of the roll.
|
