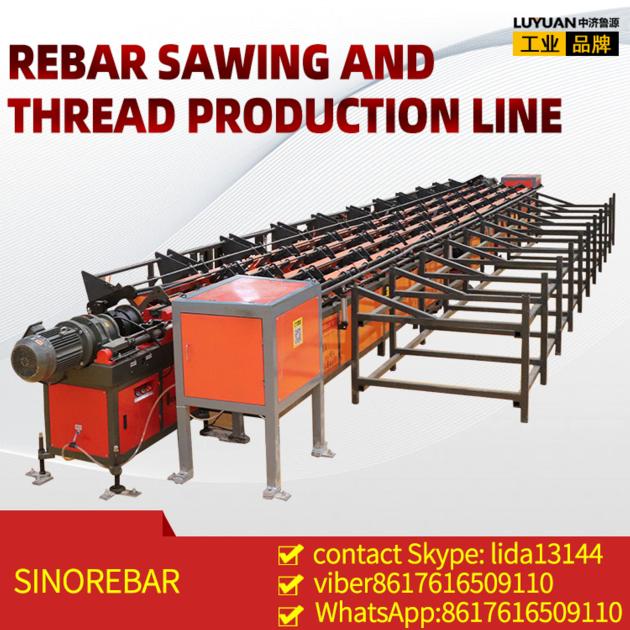

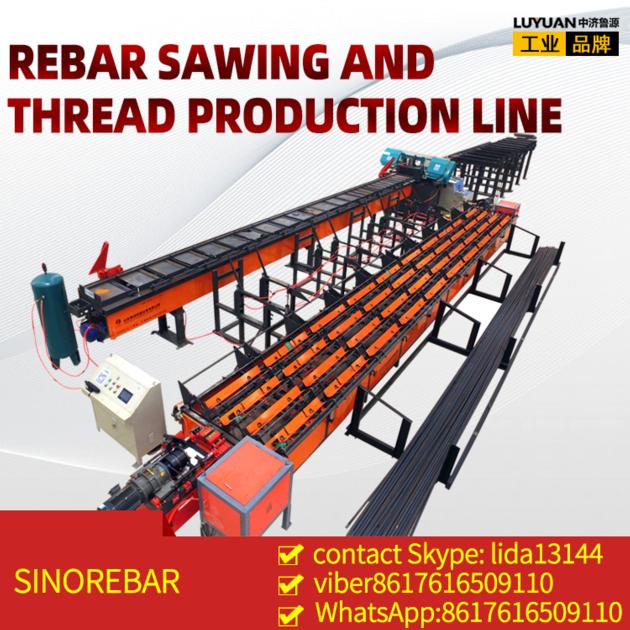

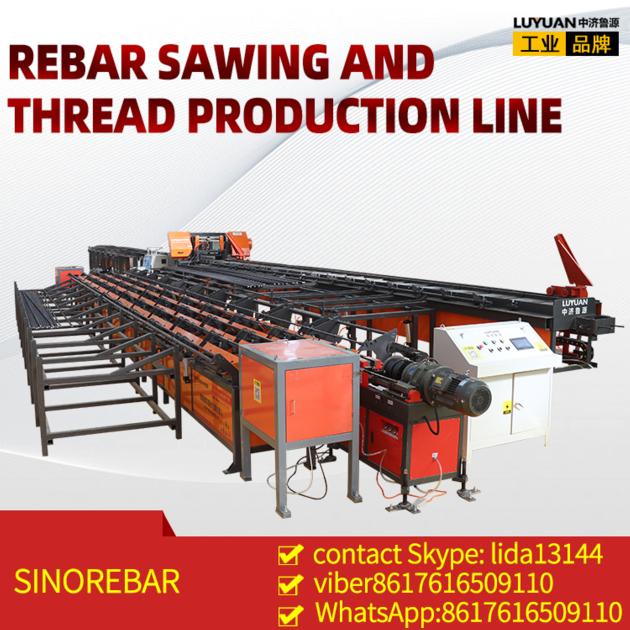

rebar threading cutting sawing production line automatic
| Price: | US$ 20000 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT,LC,DP,DA |
| Port of Export: | QINGDAO |
Product Details
| Model No.: | LYDJ-500 | Brand Name: | LUYUAN |
|---|
| Certification: | CE |
|---|---|
| Specification: |
rebar sawing, pier thickening, threading, and grinding technology realizes automated production, which improves the automation of threading production equipment and reduces labor. Space saving: the threading equipment can be connected with the steel bar cutting and sawing equipment. The steel bar is cut to the specified length by the cutting equipment and directly enters the threading equipment. There is no need to occupy the space to store the steel bars and reduce the labor: the equipment operator only needs one The operation can be completed by a person, without the need of hoisting and handling the line body for direct transportation. Improve efficiency: Realize from raw materials to semi-finished products at both ends in the shortest time. Quality assurance: the upper and lower processes are closely connected, and abnormalities are found and corrected in time. Simple operation: The equipment is equipped with humanized operating procedures and can be selectively operated. At the same time, the two sets can be separated and used as independent equipment. Advanced servo control system, high precision of sawing and threading. |
Packaging & Delivery
| Packaging: | nude or wood |
|---|---|
| Delivery/Lead Time: | 3DAYS TO 15DAYS |
| Production Capacity: | 50 |
Product Description
Features: The high degree of automation greatly reduces labor intensity.
The whole machine is equipped with a horizontal feeding device for convenient feeding.
The automatic threading line is connected with the steel bar sawing equipment. The steel bar is cut to the specified length by the sawing equipment and directly enters the threading equipment without occupying the space to store the steel bars.
The rebar threading process realizes automated production, improves the automation degree of threading production equipment and reduces labor.
Realize the shortest time from raw materials to semi-finished products at both ends.
The intelligent turning mechanism will automatically turn the material when the process of the processing station is completed and the next station has no steel bars
AUTOMATIC REBAR SAWING UPSETTING WIRE GRINDING PRODUCTION LINE
model 600 type
Sawing width 600mm
Sawing diameter range 16
Rebar conveying speed 90m/min
Rebar length range 1.5m—12m
Length error 1mm/m
Sawing machine Sawing feeding speed Stepless speed regulation
Clamping method hydraulic
Motor power 4kw
Oil pump motor power 3kw
Cooling pump power 60kw
Feeding and discharging motor power 3kw
Carrier motor 3kw
Total installed capacity 19kw
Outline size 29000L*3800W*2450H
Rebar diameter 16 20 22 25 28 32 35 40 45 50
Sawing piece 35 30 25 22 20 15 13 12 10 8
The diameter range of rebar can be processed 16—40mm
The length range of rebar can be processed 2000—12000mm
Max length of thread rolling 80mm
Total power 26kw
Outline size 15000*2500*1200mm
Rebar conveying speed 50m/min
Air pressure 0.8mpa
|
