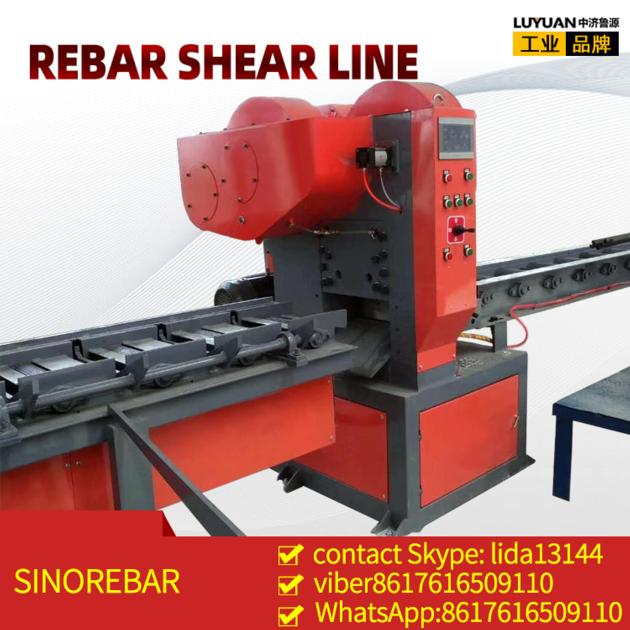

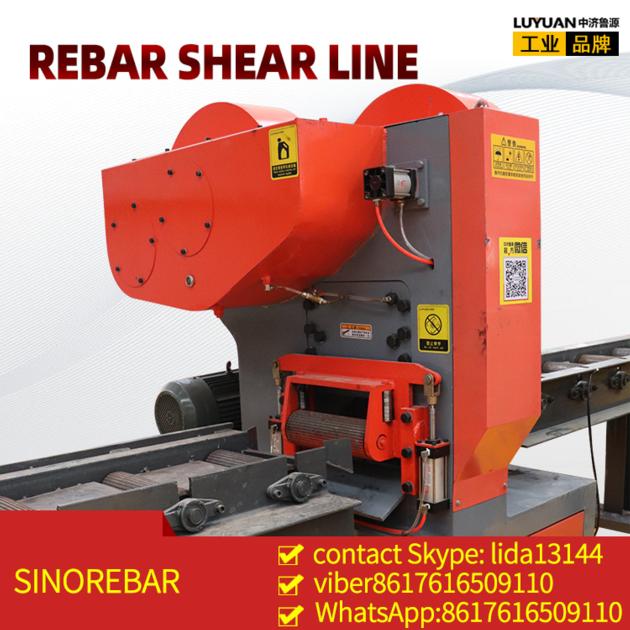

rebar shear line fully automatic operation
| Price: | US$ 15000usd / Unit |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT,LC,DP,DA |
| Port of Export: | QINGDAO |
Product Details
| Model No.: | LYJQ-120 | Brand Name: | LUYUAN |
|---|
| Certification: | CE |
|---|---|
| Specification: |
The CNC steel bar cutting production line is a front automatic steel bar processing production line that integrates bar cutting, transportation and storage. The steel bar cutting production line produced by our company is composed of five parts: raw material preparation rack, conveying track, hydraulic shear, fixed length track and finished product collection mechanism. Compared with its peers, the shearing production line has many highlights. For example, it is equipped with an anti-bounce automatic compression device, which is extremely safe; it adopts imported brands PLC and CNC to control the cutting accuracy, the equipment has a high degree of automation, and the precision of the finished steel bar is higher; the bidirectional discharge design , Double the storage of finished steel bars, etc. The equipment operation can be divided into two parts: automatic operation and manual operation. During automatic operation, the "discharge manual automatic" rotary switch should be in the automatic state; on the contrary, when manual operation is required, the "discharge manual automatic" rotary switch should be in the manual state. After the device is connected to the 380V power supply, it is necessary to turn on each circuit breaker control switch in the operation console in turn. At this time, the device is powered on and the power indicator light is on. At this time, you should check whether the electrical components of the equipment are abnormal. After the device is powered on, the initial interface of the "cutting system" appears on the touch screen. Click to enter the touch screen operation and monitoring interface. Press the "hydraulic motor start" button and the hydraulic motor starts. |
Packaging & Delivery
| Packaging: | nude or wood |
|---|---|
| Delivery/Lead Time: | 3DAYS TO 15DAYS |
| Production Capacity: | 50 |
Product Description
Automatic Shear Line Machines and Rebar Cutters The CNC rebar Cutting Machine is used for straightening,fixing length, and cutting steel wire rods into straight bars automatically and continuously, which is suitable for automatic processing of straight bars in construction projects. The equipment is suitable for straightening and cutting round steel wire , deformed steel bars and other all kinds of wire bars.
Features of the CNC reinforcement steel rebar shearing production line for sale
1.Adopting hydraulic shearing, small volume, high cutting force and high output, low noise, long service life and stable operation, etc.
2.Adopting import seal to the hydraulic cylinder, it is greatly increased service life.
3.Our hydraulic system only needs 15Mpa to cut the steel bars ofφ25.
4.The moving blade is innovation design of oblique edge. The slop is about 3 ® larger than other brand products in the industry.
5.Rebar fixed-length mechanism adopts servo motor control, adjusting the distance between the shear blade and positioning baffle through Servo motor drive screw mechanism.
6.The track adopts moving track, which is more precise and small spring back during the rebar process compares to the mobile baffle scheme.
7.Chain feed mechanism, without slip and high efficiency.
8.Shearing efficiency:10 hours a day shearing 50 ton,and a shearing process needs about 1 minute.
LUYUAN MACHGINERY CNC REBAR SHEAR LINE
POWER SUPPLY VOLTAGE FREQUENCY 380V/50HZ
BREAKER CAPACITY 100A
MOTOR POWER CUTTING POWER 7.5KW
FEEDING POWER
3KW
DISCHARGING POWER
RACK POWER
EQUIPMENT AREA LENGTH26M*WIDTH2.3M*HEIGHT2.2M(OUTLET RACK IS 12M,WHICH LENGTH CAN BE CUSTOMIZED)
TITAL WEIGHT 10 TON
CUTTING RANGE 55MM
PUNCH STROKE 60MM
CUTTING CAPACITY AND THE NUMBER OF CUTS AT THE SAME TIME (GRADE THREE REBAR ) 36MM 4
32MM 5
28MM 7
25MM 9
22MM 10
20MM 13
18MM 15
16MM 16
|
