rebar bending machine luyuan made china faqctory
| Price: | US$ 15000usd / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT,LC,DP,DA |
| Port of Export: | qingdao,tianjin,shanghai |
Product Details
| Model No.: | LYWQ-32 | Brand Name: | LUYUAN |
|---|
| Certification: | CE |
|---|---|
| Specification: |
The CNC vertical steel bar bending center adopts an integrated design. One cycle can bend multiple angles and high-strength automatic feeding racks. It realizes a large flexible tightening mechanism for carrying raw materials, which can ensure the forming accuracy of parts. Bending learning is easy to use and can be learned in 1 hour. The CNC vertical steel bar bending center is controlled by an industrial computer, the processing angle is accurate to 1®, and the fixed length is accurate to 1mm. 1. This machine integrates straightening and cutting. All-in-one hook machine, computer numerical control input, all steel bars with hooks at both ends can be formed at one time, and the hook angle can be adjusted 90 degrees, 135 degrees and 180 degrees; the hook length is 5/7/10 /15cm adjustable; the length of the bent steel bar is from the shortest 0.16M to the longest 9M. 2. In addition to the one-time forming hook, this machine can also be used as a high-performance straightening and cutting machine with a straightening and cutting speed of up to 50 m/min. 3. This robotic design is very simple to use. A worker who does not understand machinery can learn to operate in 10 minutes. The original steel bar worker is fully competent. 4. Simple machine design, low failure rate, easy maintenance and low maintenance cost. 5. Using touch screen PLC programmable controller programming, as long as you enter the product size can be produced, can store 20 batches, automatically straighten the feed, automatically cut off, automatically hook. 6. Simple design, simple operation, full Chinese menu display, anyone who knows the straightener can learn immediately and teach in three minutes |
Packaging & Delivery
| Packaging: | nude or wood |
|---|---|
| Delivery/Lead Time: | 3DAYS TO 15DAYS |
| Production Capacity: | 50 |
Product Description

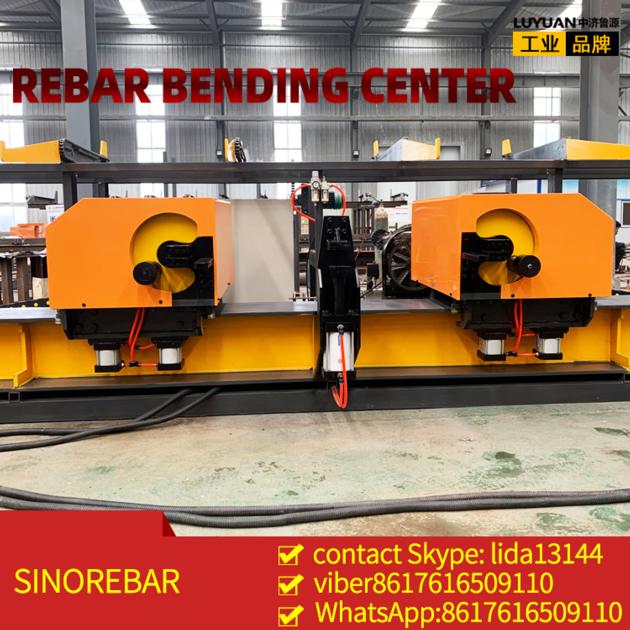

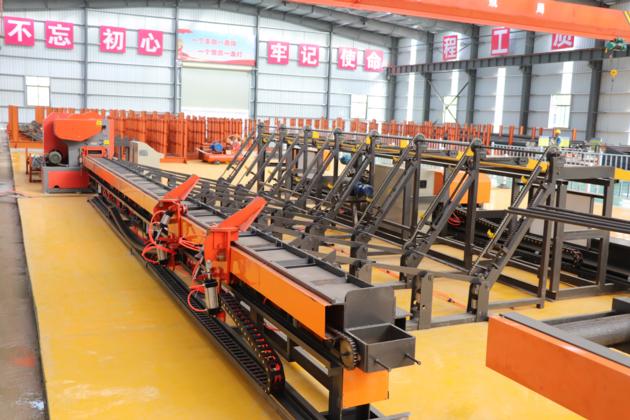

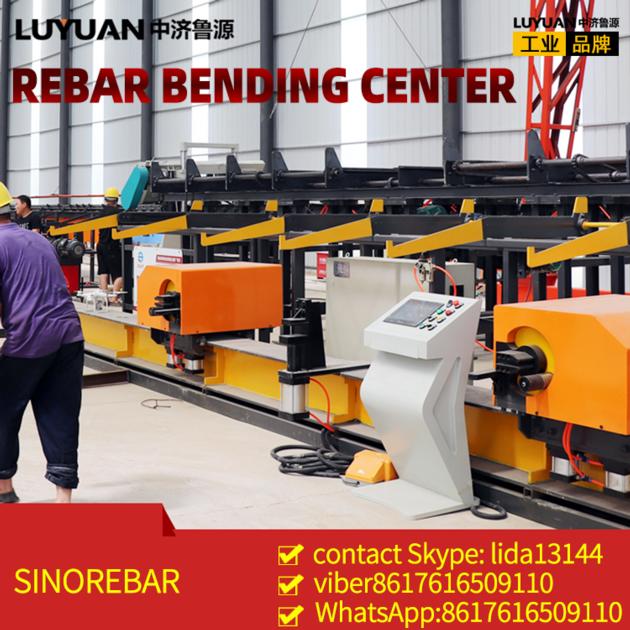

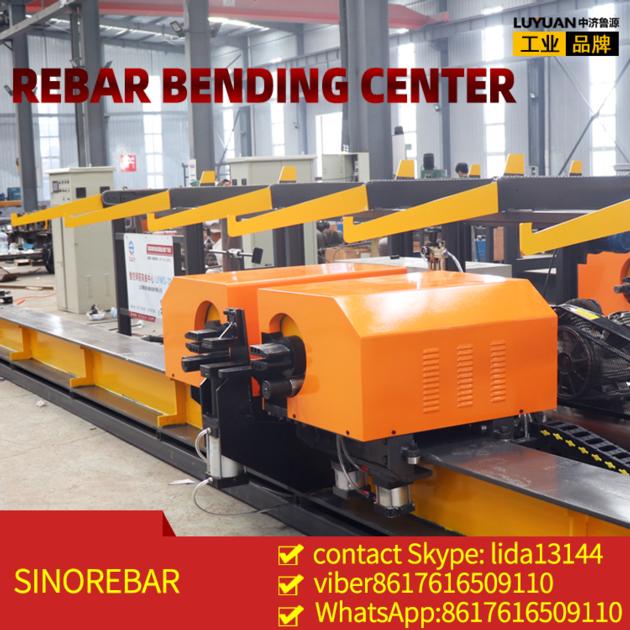

The size of CNC steel bending center produced by Shandong Zhongji Luyuan Company is 12000MM2180MM1560MM. The integrated structure of the whole machine is convenient to transfer, no need to fix, all mechanical transmission structure, low noise, convenient maintenance, mechanical and electrical integration design, advanced control template, The integrated design of the machine head moving mechanism is built into the box, which can realize bidirectional automatic bending of the steel bar. The maximum diameter of the bending steel bar is 32. The head part of Luyuan bending center adopts 8 brake cylinders, which is more stable and ensures the accuracy of the finished product. The entire fuselage is welded with manganese steel, which greatly enhances the rigidity of the fuselage and is not easy to deform. It is suitable for processing large-scale steel bars. All gear reducers use grinding gear reducers, which greatly improves the accuracy and enhances the service life. The bending center is equipped with multiple walking wheels to prevent damage and still continue to be used normally. The equipment is controlled by servo motors, the bending angle is accurate, the forming size is more accurate, and the speed can be adjusted. The control panel is controlled by PLC, equipped with graphics input function, can process and store 100 kinds of graphics, just call it during processing, the operation is simple and easy to learn
Machine Dimension(LXWXH)
12000X2180X1560（mm）
Bending Speed 0-8r.p.m
Movement Speed 0.4-1m/s
Workbench Lean 0 º -15 º（Adjustable）
Voltage 380V 50Hz
Total Electrical Power 12.6kW
Actual Electricity Consumption 4kW/h
Total Weight 6500kg
Air Supply Pressure 0.6Mpa
Max Bending Angle Up Bending Angle
0-180º Min Bending Side Size Φ10mm 560mm
Φ32mm 620mm
Down Bending Angle
0—120º
Min Length of Bending Side 60mm Max Bending Side Size 11m
Min Length of Bending Rebar 700mm
Double Bending Rebar (mm) Φ10-28mm Single Bending Rebar (mm)
（up bending） Ф30-32mm
Bending Rebar Diameter(mm)（HRB335） 10 12 14 16 18 20 22 25 28 32
Bending Bars Number 8 7 6 6 5 4 3 3 2 2
|
