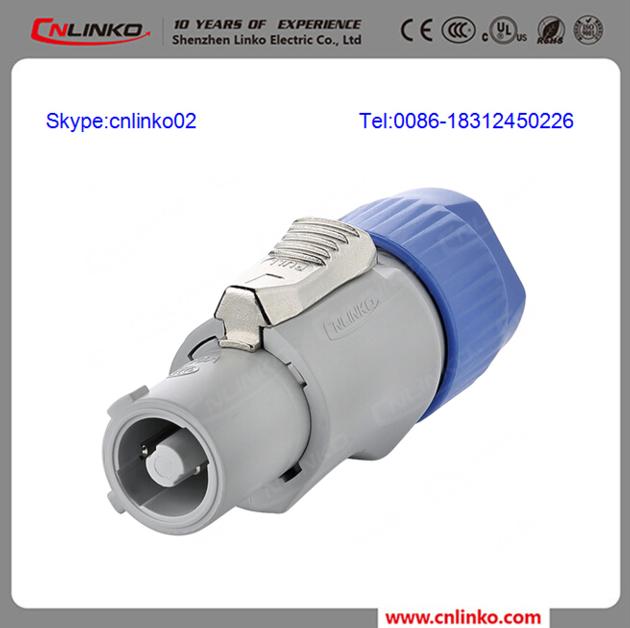

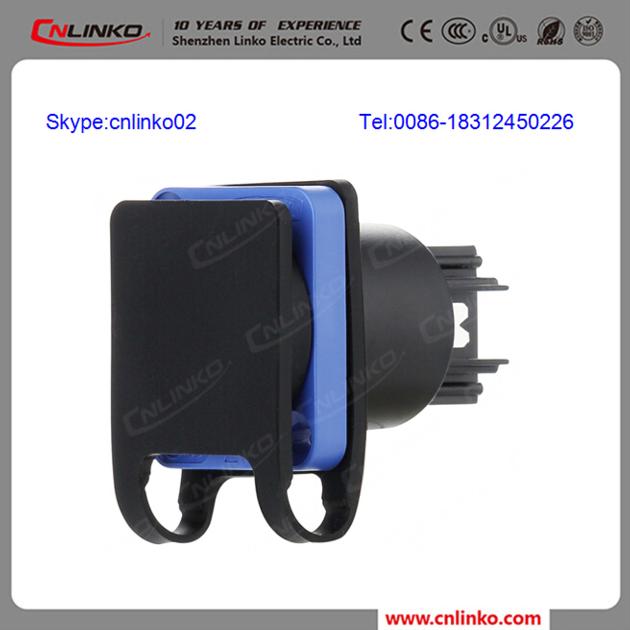

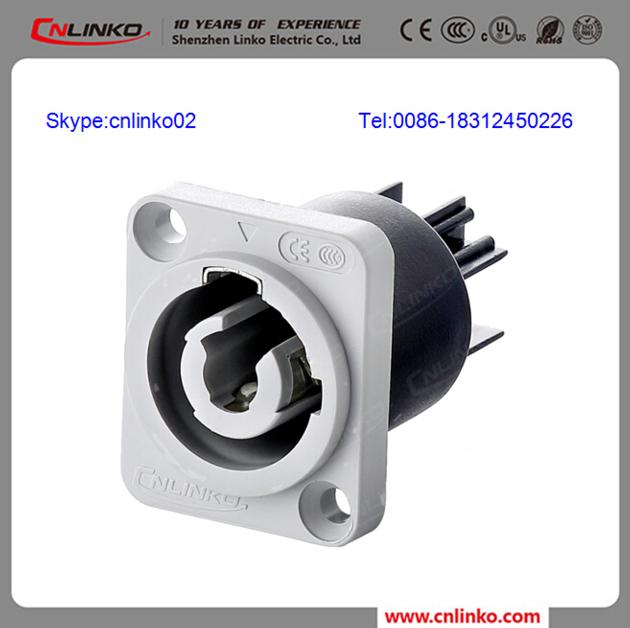

powercon connector for indoor and out door led display screen
| Price: | US$ 4.99 / Kit |
|---|---|
| Minimum Order: | 100pcs |
| Payment Terms: | T/T,WU,PayPal |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | YF-24-C03PE-02-001,YF-24-J03SX-02-001 | Brand Name: | CNLINKO |
|---|
| Certification: | CE,RoHS,UL |
|---|---|
| Specification: |
Connecting mode: Latching Lock connect
Protection level: IP44/IP65 Cable specification: 2.5mm2 ~ 4mm2 /14~12AWG Diameter range: Φ8mm ~Φ12mm Contact diameter×Qty: Φ2.0×3 Current rating(A): 20A Operating voltage(AC.V.rms): 500V Withstand voltage(AC.V)1min: 500V Contact resistance: <3mΩ Insulation resistance: >500MΩ Durability: ≥500 mating&unmating cycles Temperature rating: -40®C~80®C Method of connecting cable: Solder Prevent the combustion level: UL94-V0 |
Packaging & Delivery
| Packaging: | packed in color cartons |
|---|---|
| Delivery/Lead Time: | usually we deliver goods in 5-7 working days |
| Production Capacity: | 100000pcs per month |
Product Description
1.locking 3-pin connector of the device ,with contacts for the middle, straight, pre- adaptation
safety ground
2.high current capacity 20A/250VAC
3.use blue (input) and grey(output) to distinguish right plug and socket
4.ast and easy locking system
5.beryllium copper imported from the U.S silver-plated make quality assurance, increasing the
stability and effective temperature control
6.IP44 and IP65 for choice.
7.20A rms current rating
8.unique copper core needle avoid drop
|
