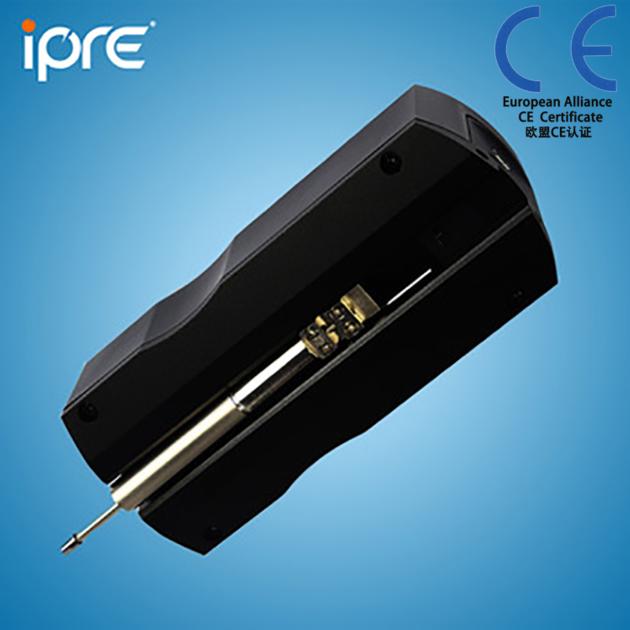

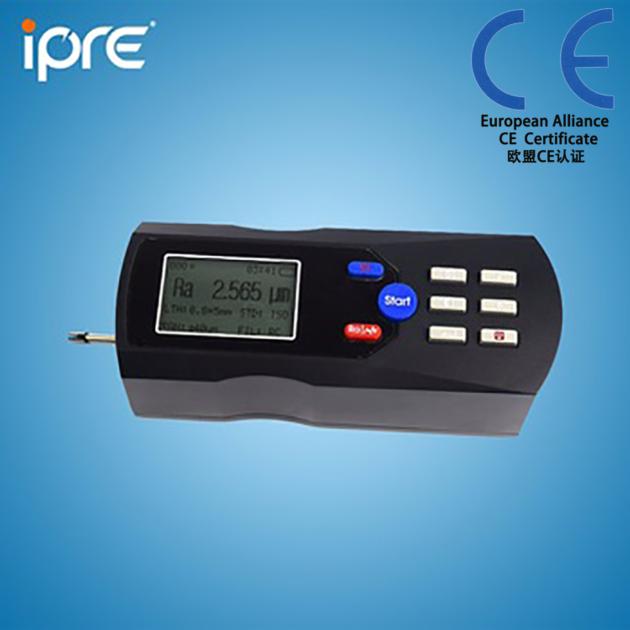

portable surface roughness tester
| Price: | US$ 1000 / Set |
|---|---|
| Minimum Order: | 1set |
| Payment Terms: | T/T L/C D/P |
| Port of Export: | Qingdao |
Product Details
| Model No.: | PRSR210 | Brand Name: | IPRE |
|---|
| Certification: | CE.CMC.IS9001 |
|---|---|
| Specification: |
1. Customize max 23 parameters
2. 2 patents obtained (Design patent and Utility model patent ) 3. CE certificate 4. Bluetooth function of wireless outputting & printing 5. Mobile app compatible, convenient to be used in the small space 6. Online Software upgrade 7. Extended memory of 8G 8. ARM processor to offer higher speed, low power consumption. 9. 4 kinds of stylus ( probes) optional for the various work pieces 10.dimension：5.5×2.1×1.9 inch |
Packaging & Delivery
| Packaging: | 140×52×48 |
|---|---|
| Delivery/Lead Time: | Delivery within3 days after receiving the payment |
| Production Capacity: | 500per month |
Product Description
16 Parameters Ra, Rq, Rz, Rv, Rp, Rm, Rt, RS, Rsm, R3z, R3y, Rz(JIS), Rku, Rsk, Rmax, Rpc
Display Ra、Rq：0.005-16μm；Rz、Ry、Rt、Rp、Rv、Rmax、R3z：0.02-160μm；RS、RSm：1mm；Rmr：0-100%（%Rt）；Rsk：0-100%
Measuring Range ¯20μm、¯40μm、¯80μm
Resolution (Ra) 0.001μm
Filter RC、PC-RC、GAUSS、D-P
Cut Off 0.25mm,0.8mm,2.5mm
Probe Type Inductive
Range 160μm
Stylus Radius 5μm
Measure Force 4mN (0.4gf)
Stylus Material Diamond
Stylus Angle 90®
Number of cut-offs 1 to 5
Max Running Length 17.5mm/0.7inch
Min Running Length 1.3mm/0.052inch
Accuracy ≤¯10%
Traverse Speed 0.5mm / s, 1mm/s
Output USB and bluetooth
Power Built-in rechargeable Battery
Dimensions in mm 140×52×48
Weight 440g

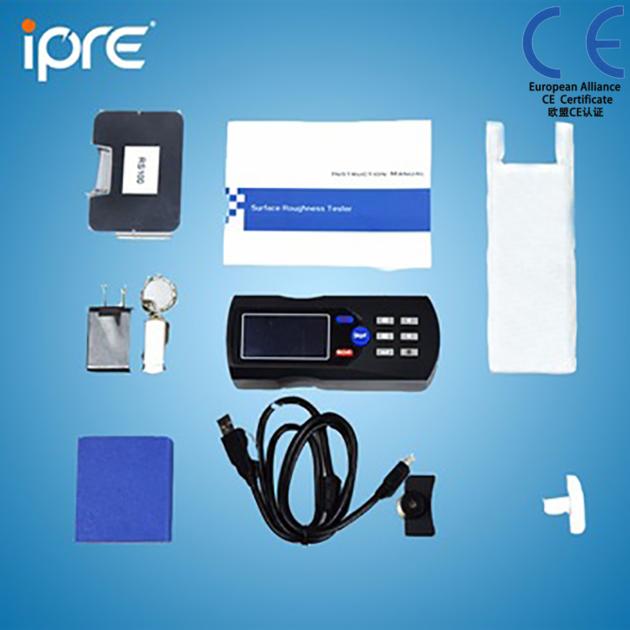

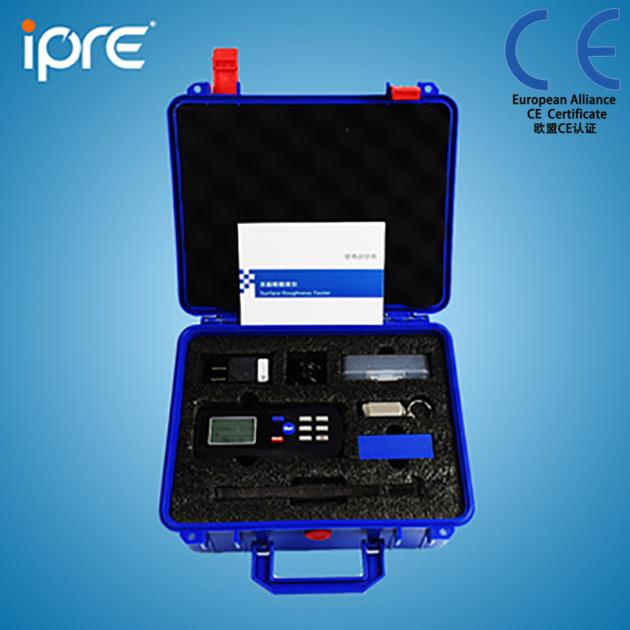

Main Unit 1 pc
standard Stylus 1 pc
Stylus sheath 1 pc
Calibration block and support 1 pc of each
USB Cable and software for PC 1 pc
Android APP for mobile device 1 pc

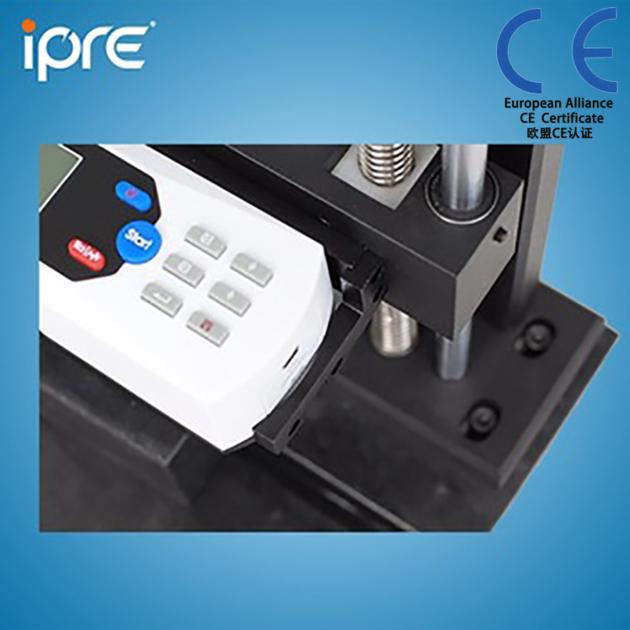

Adjustable Stand 1 pc
AC/DC Adaptor 1 pc
|
