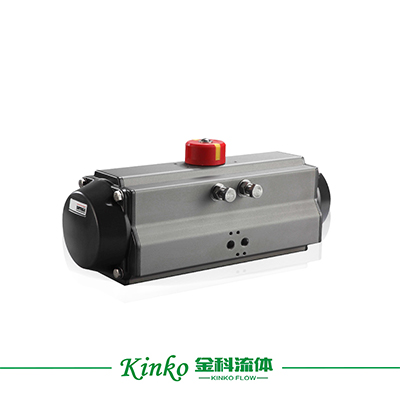

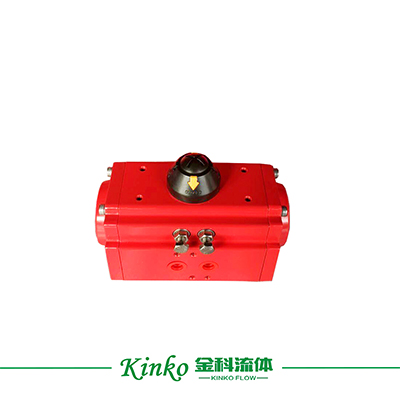

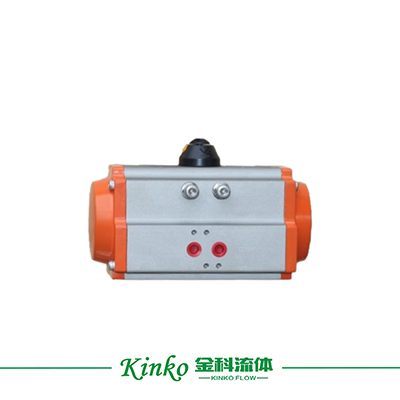

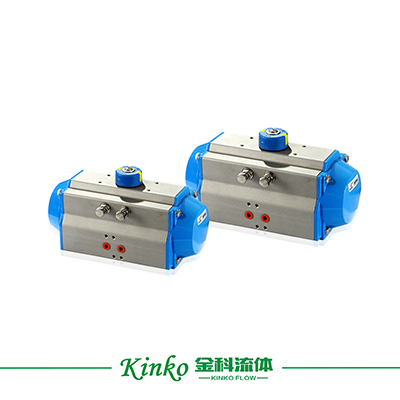

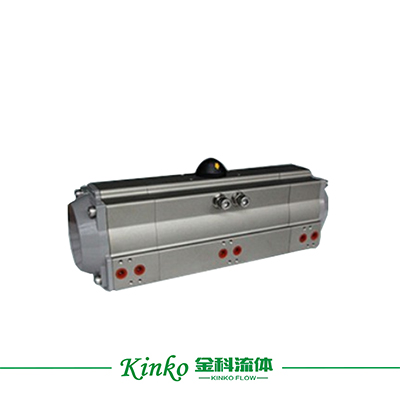

pneumatic actuator
| Price: | Contact for latest price |
|---|---|
| Minimum Order: | 100PCS |
| Payment Terms: | T/T, L/C |
| Port of Export: | shanghai/ningbo |
Product Details
| Model No.: | AT, AW, BT, RT | Brand Name: | KINKO |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Actuator Model：AT pneumatic actuator
Actuator Material：Aluminium Alloy Action：double- acting, single acting normally closed, single acting normally open Rotary Angle: 90® Output Torque : 6.2NM-4944NM Cylinder Size ： 32mm-270mm Air Pressure：4~8bar Working Temperature ：-20ºC~+80ºC Standard GB/ISO/DIN Shrink film+Polyfoam+Carton/Plywood Case/Customer Requirements |
Packaging & Delivery
| Packaging: | foam, carton box,plywood |
|---|---|
| Delivery/Lead Time: | 15days |
| Production Capacity: | 10000pcs/month |
Product Description
All Rotary actuators are Rack and Pinion design and are available in 90 deg. These have high torque to weight ratio for faster cycle times.
Ideal for ball valve, butterfly valves, dampers, indexing mechanisms.
Main body housing rack and pinion is made from solid bar stock or close grained casting. The outer surface of the actuator is specially designed and has a smooth surface (special design on demand) for typical pharma application - hence cleaning becomes very simple.
Features:
• Ball valves / Butterfly valves of required sizes & materials and can be coupled with pneumatic actuator (single acting, spring return or double acting) and solenoid valves.
• Dom type position indicator for on-off indication can also be provided with above assembly.
• Above valves can also be provided with Pneumatic / Electro-Pneumatic Positioner with input supply of 3-15 Psi / electrical signal of 4 to 20 mA current for percentage opening of the valves.
Technical Specifications:
• Double acting / single acting spring return actuators
• Degree of rotation: 90 Deg
• Rack & pinion mechanism
• High torque & durability.
• ISO standard with NAMUR mounting arrangement
|
