outdoor waterproof full color P4 led video panel
| Price: | US$ 1200 / Square Meter |
|---|---|
| Minimum Order: | 3sqm |
| Payment Terms: | 40 TT down payment and full payment before shipmen |
| Port of Export: | Shenzhen,Shanghai |
Product Details
| Model No.: | module size:256*128mm | Brand Name: | led display |
|---|
| Certification: | CCC |
|---|---|
| Specification: | outdoor waterproof full color led video panel |
Packaging & Delivery
| Packaging: | standard |
|---|---|
| Delivery/Lead Time: | 7-15 days |
| Production Capacity: | 100 SQM/day |
Product Description

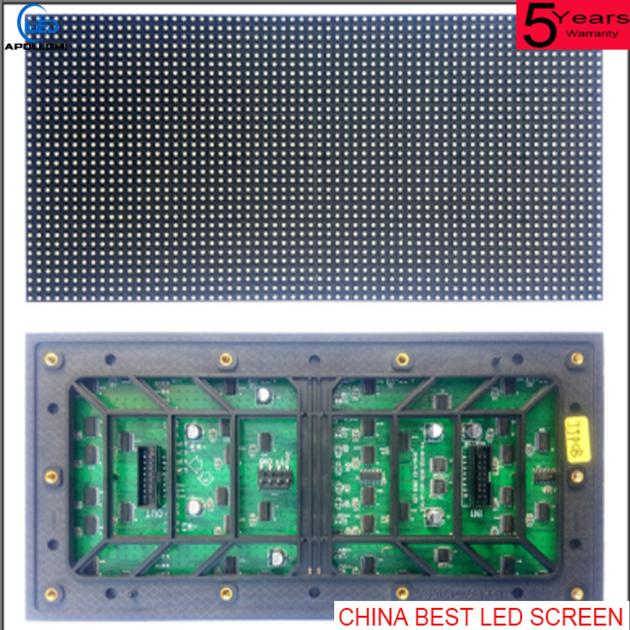

Model: PH4mm outdoor LED modules
Pixel Pitch: 4mm
Pixel configuration: 3in1 (1R1G1B)
Module Size: 256*128mm 128*128mm
Module Resolution: 64(W) * 32dots(H) 32(W) * 32dots(H)
Module Thickness: 13MM
Module Weight: 0.4KG
Package LED mode: SMD2727
Max Power: 20W 10W
Pixel Density: 62500 dots / SQM
Driving Method: Constant Current Driving
Scan Method: 1/8 scan 1/8 scan
Interface Way: HUB75
Brightness: ≥ 6000CD /SQM ≥ 6000CD /SQM
Cabinet Size: 512 * 512mm (Customize)
Cabinet Composing: 8pcs
Power Supply Mode: 5V/40A
Cabinet Resolution: 128* 128dots
Optimal Viewing Distance: 4-150M (according to the big screen size)
Optimal Viewing Angle: Horizontal angle: 160 degree;
Vertical angle: 120 degree
Environment Temperature: Storage: -40 degree ~ +85 degree
Work: -20 degree ~ +60 degree
Relative Humidity: 10% ~ 95%
Operating Voltage: AC:100V~120V AC:220~240V
Average Power: ≤ 220W/SQM
Max Power Consumption: ≤ 400W/SQM
Computer: Pentium4 or I3 or above
Operate System: Win98/2000/NT/XP/Win7/Win10
Control Mode: Synchronization with PC
Driving Device: IC Constant Current Driving
Refresh Rate: ≥ 2800Hz
Gray/Color: RGB each 256 grade, can display 16.7color
MTPF: ≥ 9000hours
Power Switch: Automatic Switch
Display Mode: 1920*1080\1024*768\1280*960
|
