nano brewery for micro brewery and beer brewery

3.5bbl brew system for beer Pub&Bar&Restaurant
According to customer’s requirement, then we can provide you 3-5bbl brew system with combination system for save your invest and brewing area.

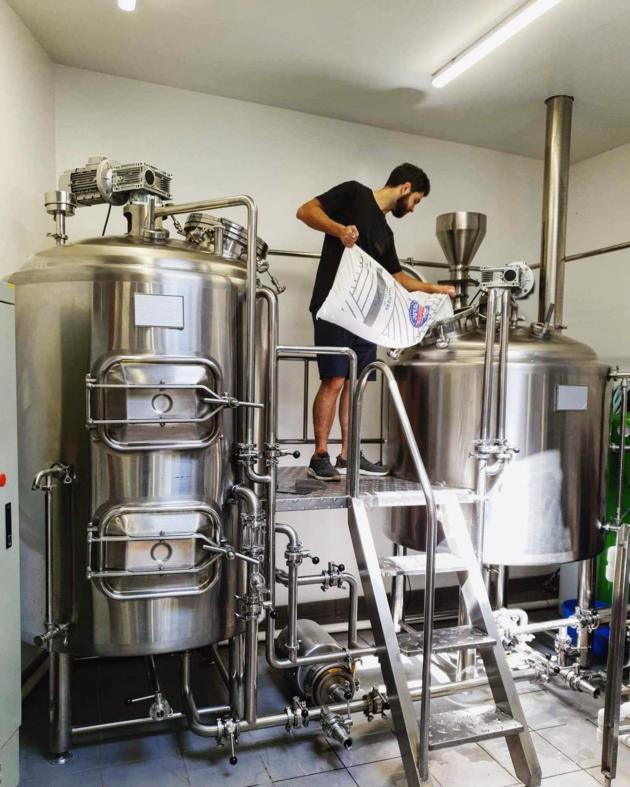

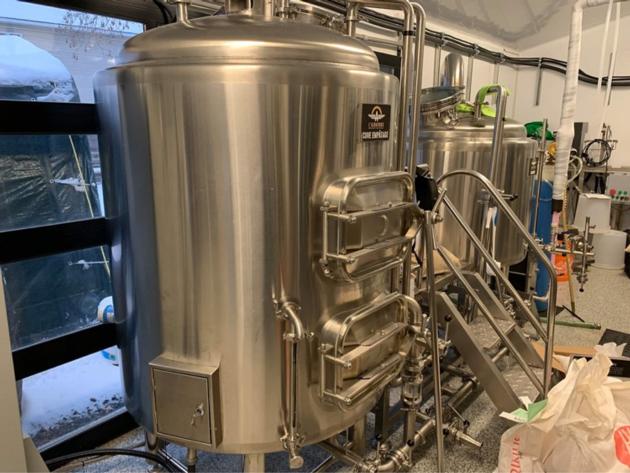

3.5bbl Brewhouse Unit
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel or copper cladding are popular
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings

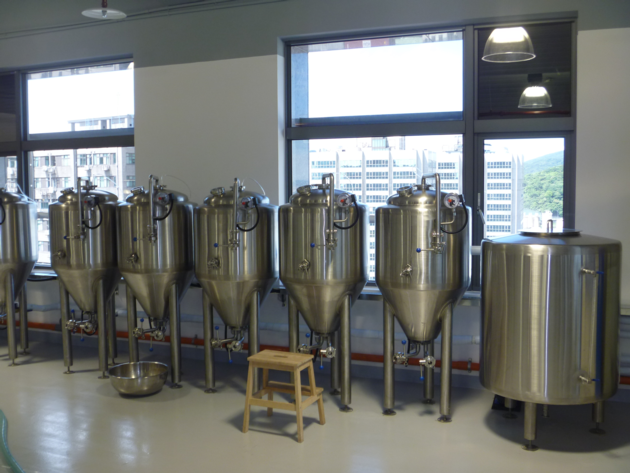

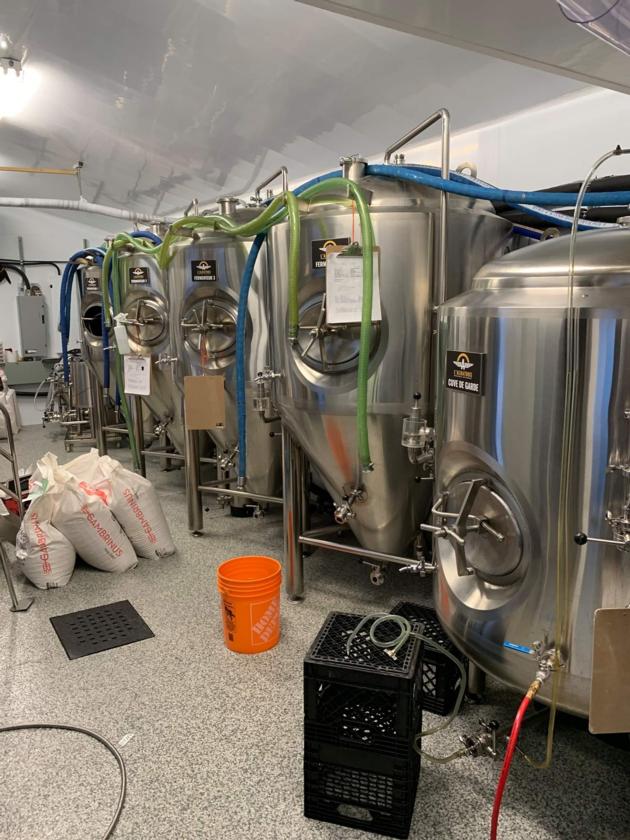

3.5BBL or 7BBL Fermentation Unit
Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included

Most important: Beer Filter Unit(optional)
In restaurant or bar, beers are always served as craft beer without filtration


Output/Brew: 3.5bbl
Brew/Week: 2~6
Output/Week: 24bbl-48bbl
Electric Supply: 3phase/380(220, 415,440…)v/50 (60)Hz
Single Phase: / 220(110, 240…)v/50(60)Hz
Heating Source: Electric/Steam
Area Request >20M2
Brewmaster: 1
Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;

1 malt milling system malt miller machine
grist case
2 Mash system Mash tank, lauter tank
Boiling tank, whirlpool tank
Hot water tank
Mash/wort/hot water pump Motors
Wort oxygenation device
Operation platform
Plate heat exchanger
3 Fermenting system Beer fermenters
Bright beer tanks
Yeast adding tank
Accessories, such as sample valve, pressure gauge, safety valve and so on
4 Cooling system Ice water tank
Refrigerating unit
Ice water pump
5 CIP cleaning system disinfection tank & alkali tank &cleaning pump etc.
6 Controller Control system, we have PLC automatic and semi-automatic, the elements brand include LG, Siemens and so on.
7 Keg machine Keg machine ( keg washer and keg filler machine), the control system brand is Siemens.
