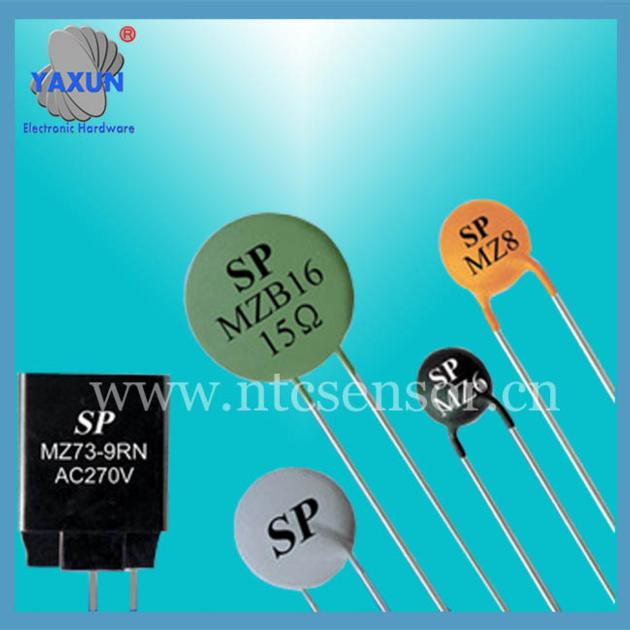

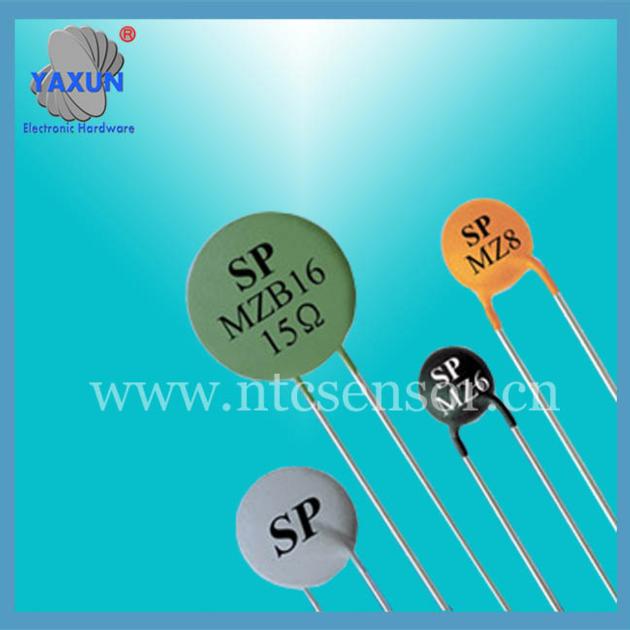

motor ptc thermistor protection
| Price: | US$ 0.1 / Piece |
|---|---|
| Minimum Order: | 1000 |
| Payment Terms: | T/T, L/C, D/A, D/P ,West side,Paypal Money, Gram |
| Port of Export: | Shen zhen |
Product Details
| Model No.: | ptc | Brand Name: | yaxun |
|---|
| Certification: | SGS |
|---|---|
| Specification: |
KTY series of monocrystalline silicon temperature sensor is the latest international temperature sensor, he can be -55 ℃ to 300 ℃ range of temperature measurement, such as air conditioning, oven and so on.Especially in the servo motor has been widely used.
Second, features: KTY series temperature sensor structure is simple,Stable performance,Action time faster,Temperature curve is also more linear. Third, the technical parameters 3.1, insulation resistance ≥ 100MΩ 3.2, lead material 0.35mm PTFE high temperature line 3.3, the typical dimensions and model examples |
Packaging & Delivery
| Packaging: | Carton |
|---|---|
| Delivery/Lead Time: | 7 DAY |
| Production Capacity: | 1000000000 |
Product Description
KTY deviation
specification condition Minimum value Intermediate value maximum unit
SKTY81-110-S Ambient temperature 25 ℃
Constant current 1mA 990 1000 1010 Ω
SKTY81-120-S 980 1000 1020
SKTY81-121-S 980 990 1000
SKTY81-122-S 1000 1010 1020
SKTY81-150-S 950 1000 1050
SKTY81-151-S 950 975 1000
SKTY81-152-S 1000 1025 1050
SKTY81-210-S 1980 2000 2020
SKTY81-220-S 1960 2000 2040
SKTY81-221-S 1960 1980 2000
SKTY81-222-S 2000 2020 2040
SKTY81-250-S 1900 2000 2100
SKTY81-251-S 1900 1950 2000
SKTY81-252-S 2000 2050 2100
SKTY83-110-S 990 1000 1010
SKTY83-120-S 980 1000 1020
SKTY83-121-S 980 990 1000
SKTY83-122-S 1000 1010 1020
SKTY83-150-S 950 1000 1050
SKTY83-151-S 950 975 1000
SKTY83-152-S 1000 1025 1050
SKTY83-210-S 1980 2000 2020
SKTY83-220-S 1960 2000 2040
SKTY83-221-S 1960 1980 2000
SKTY83-222-S 2000 2020 2040
SKTY83-250-S 1900 2000 2100
SKTY83-251-S 1900 1950 2000
SKTY83-252-S 2000 2050 2100
SKTY84-130-S Ambient temperature 100 ℃
Constant current 1mA 970 1000 1030
SKTY84-150-S 950 1000 1050
SKTY84-151-S 950 975 1000
SKTY84-152-S 1000 1025 1050
SKTY85-110-S Ambient temperature 25 ℃
Constant current 1mA 990 1000 1010
SKTY85-120-S 980 1000 1020
SKTY85-121-S 980 990 1000
SKTY85-122-S 1000 1010 1020
SKTY85-150-S 950 1000 1050
SKTY85-151-S 950 975 1000
SKTY85-152-S 1000 1025 1050
|
