micro prism for medical endoscope
| Price: | US$ 10 |
|---|---|
| Minimum Order: | 100 |
| Payment Terms: | TT |
| Port of Export: |
Product Details
| Model No.: | Brand Name: |
|---|
| Certification: | |
|---|---|
| Specification: |
Prism Manufacturing Specifications Commercial Precision High Precision Material Schott Glass Material for Endoscope Dimensions 0.2 – 200mm 2 – 150mm 2 – 150mm Dimensional Tolerance ¯0.25mm ¯0.1mm ¯0.05mm Irregularity 1.0λ 0.5λ 0.05λ Angle Accuracy ¯3 arcmin ¯30 arcsec ¯1 arcsec Pyramidal Accuracy (for corner cuber) ¯3 arcmin ¯1 arcmin ¯5 arcsec Bevel (Face Width @ 45®) ¯0.2mm ¯0.1mm ¯0.05mm Surface Quality 60-40 40-20 10-5 |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description

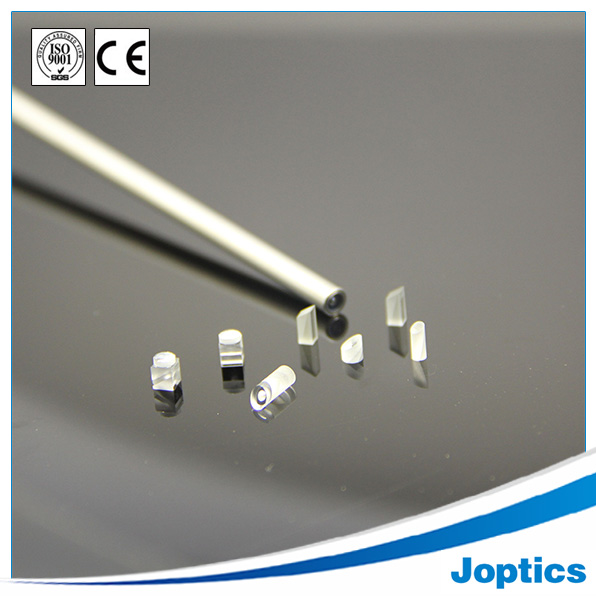

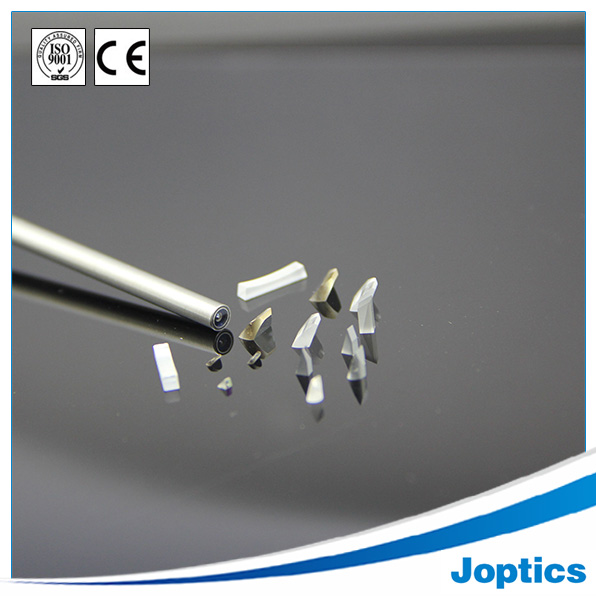

As a professional manufacturer for optical processing, we prefer quote you according to client’s drawings include details. Micro Prisms in dimensions from 0.3 to 8 mm
typical applications:
endoscopy optics
laser optics
fiber-optical applications
optics for sensors
fiber switch
optical data transmission
|
