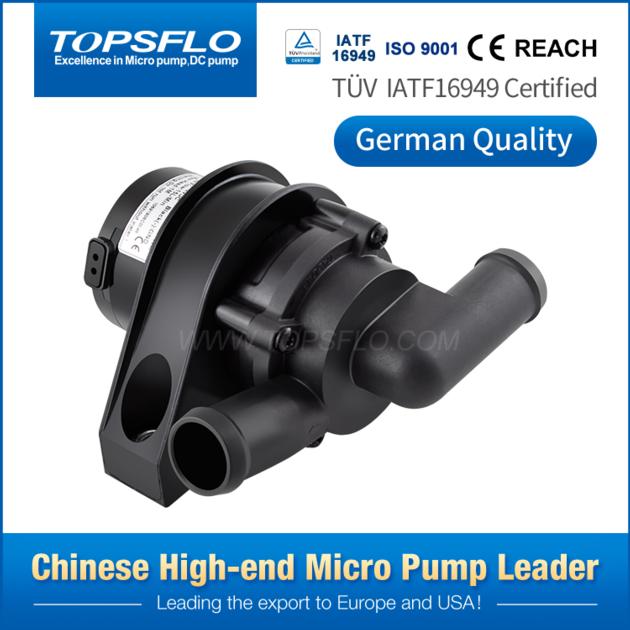

micro electrical parking heater dc brushless water pump

micro electrical parking heater dc brushless water pump


Application:

·Automotive climate control system

·Automotive engine /Motorcycle cooling circulation
·Car engine pre-heating

·Heating system (Car Auxiliary heaters & parking heaters)
·Electric vehicles water circulation system

·Normal Hot Water Circulation



Advantage:

1. With 20mm Inlet/Outlet standard car connection and specialized water-proof connector, then the pumps can be quickly and efficiently integrated into vehicles.



2. With -40®C~125®C working temperature, TOPSFLO TA50 engine pre-heating & parking heater pumps provide the vehicles an efficient working environment even at extreme outdoor temperatures and in bad weather conditions.



3. Special design to meet car vibration working requirement, car power supplying way which occur peak voltage or unstable voltage.



4. With polarity protection function, then the pump will not burned by wrong wiring.tailored to the specific vehicle system.



Features:

♦ DC brushless motor with long lifetime

♦ Heavy duty work, can sustain continual 24 hours

♦ Sustain -40~125®C, suitable for extreme outdoor environment

♦ Durable permanent magnetic rotor/impeller & fineceramic shaft

♦ Advanced magnetic drive technology for static-impeller,without any leakage for ever

♦ The motor with big machine movement optimization design, has very low temp rise

♦ Automatic polarity protection, overload protection, block protection special design to meet car vibration working condition, special design to meet car power supplying way which occur high peak voltage or

unstable voltage

♦ Equipped with specializing car water-against connector

♦ Applied liquid: pure water, antifreeze solution

♦ IP protection level : IP 68

♦ Low or no maintenance

♦ Low power consumption



Protection functions:

Polarity Protection
Blocked-Protection
Over Temperature Protection


Specification:

Model Product Code Max Water Flow (L/Min) Rated Voltage(DC) Rated Current (A) Max Water Head(M) Rated Power(W)
TA50 TA50-12-2302 23 12 1.25 2.5 15
TA50-24-2303 23 24 0.75 3 18




Get more detail, please click Contact us
