large enclosed laser cutting machine
| Price: | US$ 33000 / Set |
|---|---|
| Minimum Order: | |
| Payment Terms: | FOB |
| Port of Export: |
Product Details
| Model No.: | Brand Name: |
|---|
| Certification: | |
|---|---|
| Specification: |

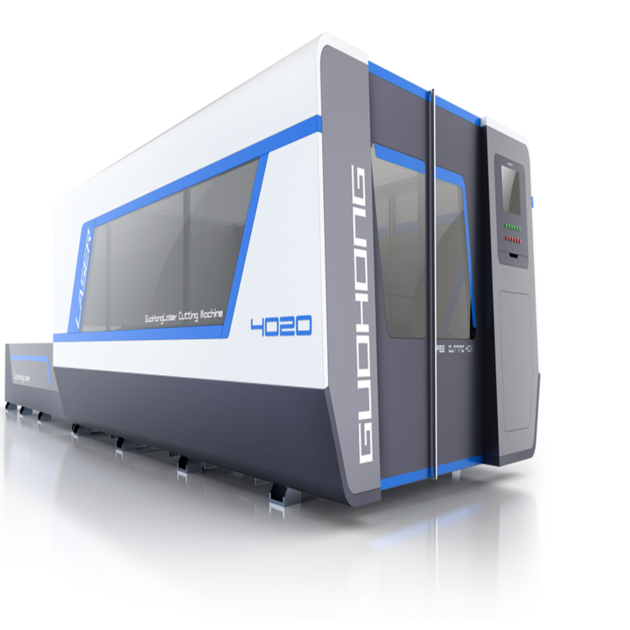

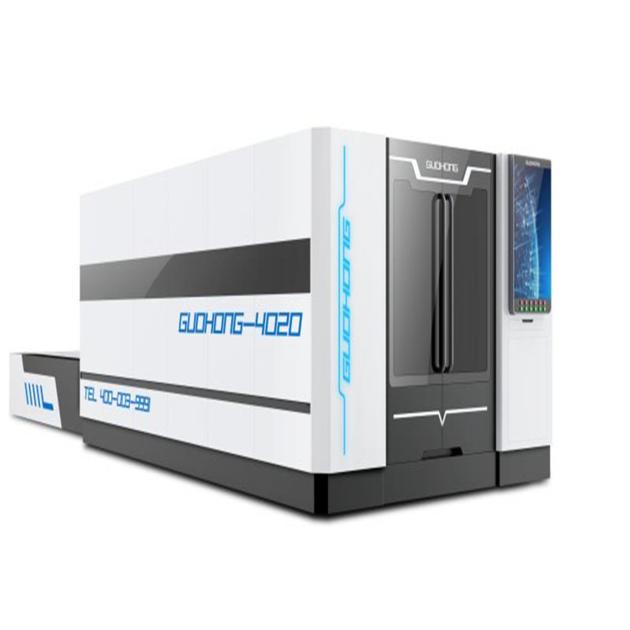

Large enclosed high speed optical fiber cutting machine The large enclosed optical fiber cutting machine adopts a fully automatic loading and unloading system,which is matched with the fully enclosed safety design,so that the whole equipment can stably cut under the condition of high power and high speed operation,thus giving the equipment a higher standard product positioning. Adopting the world`s top IPG laser,mobile gantry structure machine tool,and integral external enclosure structure,it can maintain good stability and safety for a long time.The servo motor hardware operation system and the software numerical control system are both imported from Germany with good compatibility,strong stability,more convenient maintenance and stronger cutting function. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Large enclosed laser cutting machine Type:GHJG-3015 4020 6020 6025 6030
Fiber type:optical
Wave optical wavelength:1070nm
fiber output power:500w-60000w/1000w-6000w
cutting arrange:3000x1500mm 4000x2000mm 6000x2000mm 6000x2500mm 6000x3000mm
Kind of drive:precision rack dual drive
fiber laser generator:Standard with original imported laser, optional with other brand laser
cutting speed and thickness:depending on the material
Repeated positioning accuracy:0.02mm
Type of cooling:water cooling
Power emand:380V/50HZ
Continuous operation:24 hours
Weight:4800kg 5200kg 5500kg 8500kg
Dimension:4700mmx2700mmx2000mm
Maximum running speed:120m/min
Maximum acceleration:1.2G
X/Y positioning accuracy:0.03mm
Minimum slit width:0.15mm
Please contact with me thru wechat:guohonglaser for more details.We will try to give you most competitive price,hope to establish long-term business relations near future.What's the guarantee?
All GN Laser's machine we provide life long after-sale service.
24 Hours online to Solve all your question.
Do You Arrange Shipment ?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
What's the payment?
Most of our customer prefer T/T 50% advanced and balanced 50% before shipiment.
Also can do payment according to customer's country policy.
What's the life time of Spare Parts?
1. Protect lens: 100-300H
2. Nozzle: 300-600H.
3. Fillter: 1-6 Month
|
