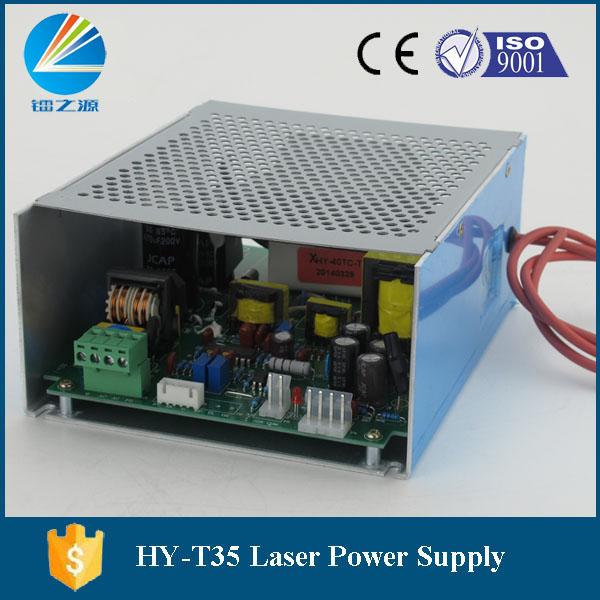

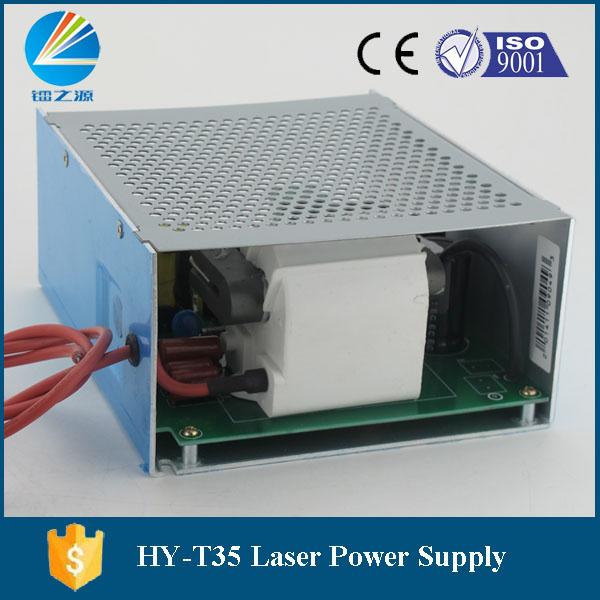

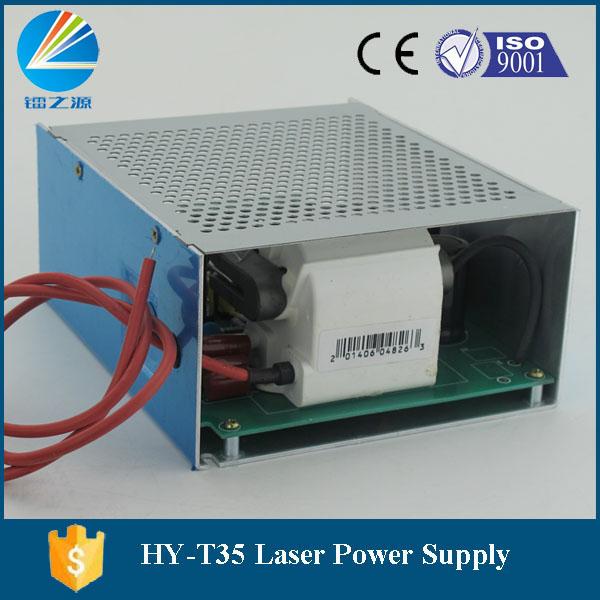

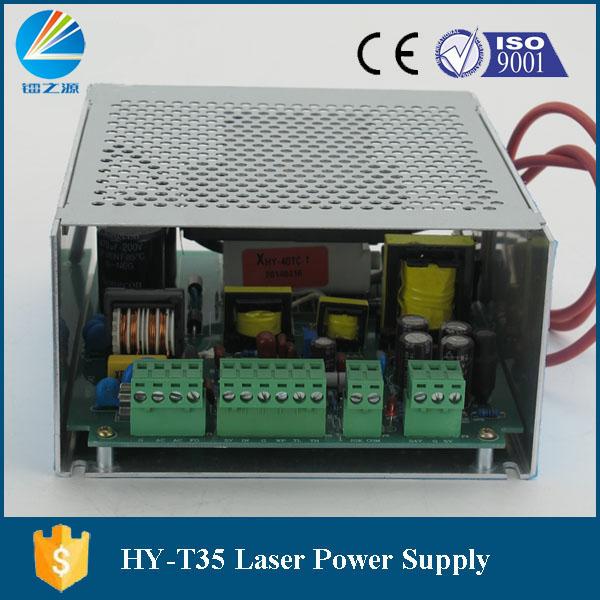

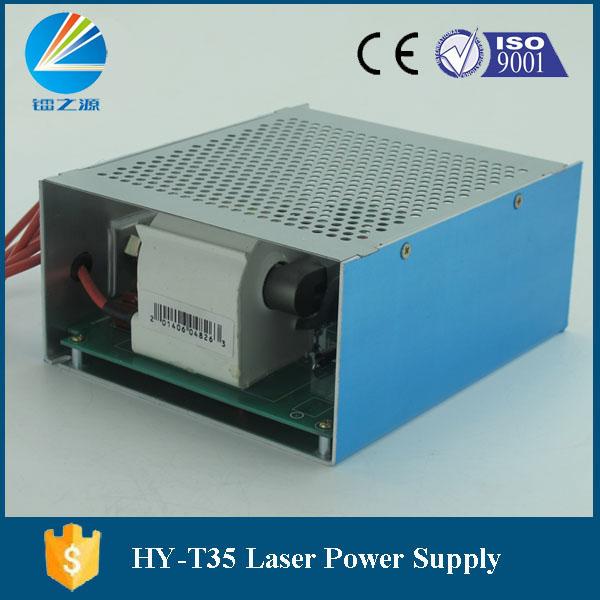

intelligent Co2 laser power supply 35W for mini stamo engraving machine
| Price: | US$ 45 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T,Western Union,Paypal |
| Port of Export: | Qingdao,shanghai |
Product Details
| Model No.: | T35 | Brand Name: | HY |
|---|
| Certification: | CE.ISO9001 |
|---|---|
| Specification: |
Input Input Voltage AC220V or AC110Vto be specified when placing order AC frequency 47440HZ Cold Surge Current ≤60A(AC220V Input) ≤30A(AC110 Input) Current Leakage ≤0.7MAAC220V Input ≤0.4MA(AC110V Input) Output Max Output Voltage DC 25KV DC 5V DC 24 Max Output Current DC 20MA 3A 2A Efficiency ≥90full load MTBF ≥10000H Response Speed ≤1msfrom the switch Signal is given to the output current up to 90% of the setting current Control Interface TTL level switch control (details refer to the control terminal specification) Withstand Voltage Input-Output, Input-Shell: AC1500V 10MA 60S Protection can work in open-circuit condition for a short timeRequire a good protective earthing and avoid arc between the positive and the machine shell Environment Operating Temperature-10~40,Relative Humidity (RH)≤90 Cooling Way Natural air cooling Dimension L×W×H=210*180*60(mm) |
Packaging & Delivery
| Packaging: | Packed in one carton box with thick sponge |
|---|---|
| Delivery/Lead Time: | ship within 7 days |
| Production Capacity: | 100pcs 1 months |
Product Description
Specificity: It is designed exclusively for engraving machines and can be applicable to 40W
and 30W laser tube.
Powerful Features and High Integrity: It makes the high voltage power supply, drive control
board and auxiliary power of drive motor integrate in one board, so as to reduce external
lead and strengthen the anti-interference ability.
Advanced Technology: The power adopts Soft Switch Technology, so dramatically increase the efficiency of the power supply, boost reliability of the power supply and also lengthen the life
of laser.
High Security: The input and output of power supply are separated completely to avoid electric shock.
Easy Control: The start and stop of laser can be easily controlled by TTL level. And there are protection switch to test the external water, ventilation, etc.
Easy Control of Laser Power: The laser power conversion can be controlled by a regulation resistance.
The power supply has open circuit protection: Under the condition of good protective earthing,
the power supply can work in open-circuit for a short time, which could avoid the damage of laser power supply because of the bursting of laser tube, thereby enhancing the life of power supply.
Application: Engraving, seal-cutting, etc.
|
