infrared sensor led t8 tube for corridor lighting
Price: | Contact for latest price |
---|---|
Minimum Order: | 50 |
Payment Terms: | T/T |
Port of Export: | Shenzhen port |
Product Details
Model No.: | KTL-T818W1200LR | Brand Name: | KENKIO |
---|
Certification: | CE ROHS |
---|---|
Specification: | KTL-T818W1200LR is KENKIO newest independently developed LED Tube. With adjustable delay shut off time and power saving adjustment. Through independent R & D we developed our own passive PIR Sensor utilizing, Japanese Nicera infrared sensor, Fresnel lens, and microcontroller unit (MCU). This internal PIR Sensor have time delayed action, anti-interference, and more accurate sensing capability, detecting distance is 7 meters |
Packaging & Delivery
Packaging: | exporting packing |
---|---|
Delivery/Lead Time: | 15 days |
Production Capacity: | 2000PCS PER DAY |
Product Description
Selling Point: 1) Own Patents, Own Design
2) Two Adjuster: one for delaying time, other for lux, no need to change Control Board, no need to change the software to avoid error from software,production, clients also can change it by themself in the future by manual rotation.
3) Our delaying time is with 9 levels (from 5 seconds to 60 miniutes), but the max of normal radar tube is 2 miniutes, it is limit
4) our end cap can be rotated 180 degree, it is more easy to install different location to detect objective
5) our LED Tube already meet the standard of TUV
Material : Aluminum + PC cover
Color Temperature(K):3000K-3500K,4000K-4500K,5500K-6000K
Rated Voltage:AC100-240V ,50/60HZ
IP Rating:IP50
CRI:≥80
Power Factor:>0.9
LED: LUMENMAX
Power: 18W
Length: 1200mm
Luminous Flux: 1800lm
Luminous Efficiency: 100lm/w (125lm/w is optional)
LED Driver: Isolated Driver with Rubycon Capacitor
Detecting Distance: 7 meters
Infrared Sensor: Japanese Nicera infrared sensor, Fresnel lens, and microcontroller unit (MCU). This internal PIR Sensor have time delayed action, anti-interference, and more accurate sensing capability

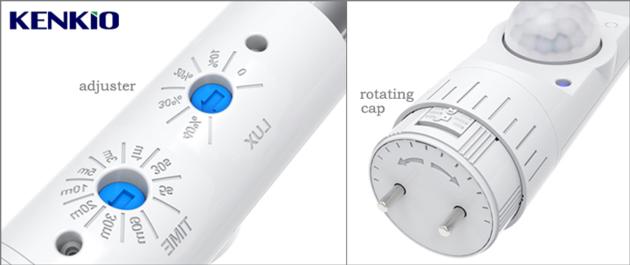

Two Adjusters as below
1. TIME: When user is away from detection zone, light tube will stay on based on the set
time. (5S, 30S, 1M, 3M, 5M, 10M, 20M, 30M, 60M).
2. LUX: When user is away from detection zone, the power consumption of the tube will be reduced to the set amount. (0, 10%, 20%, 30%, 40%)
LED Tube end cap is rotatable 90 clockwise and counter clockwise. This can accurately position the tube to the direction of the sensing and lighting area.
