induction heating furnace

Product features:
1). Application: Heat treatment for bar, pipe, tube, shaft, bearing, billet, slab
2). Available power: 100kw-10000kw
3). Non-standard product: Professional customization
2. Product parameters:

Model Inlet Wire voltge(v)3phases or6phases 50HZ Inlet Wire  Currency(A) DC Voltage(V) MF voltage¯10%(V) KW
GTR-100 380 160 513 750 100
GTR-200 380 320 513 200
GTR-250 380 398 513 250
GTR-300 380 478 513 300
GTR-350 380 557 513 350
GTR-400 380 640 513 400
GTR-500 380 800 513 500
GTR-600 380 960 513 600
GTR-750 380 1200 513 750
GTR-800 380 1300 513 800
GTR-1000 380 1600 513 1000
GTR-1250 380 2000 513 1250
GTR-1600 660 1800 891 1200 1600
GTR-1800 660 2100 891 1800
GTR-2000 660 2200 891 2000
GTR-2500 660 2805 891 2500
GTR-3000 660 3200 891 3000
GTR-4000 660 4400 891 4000

3. Item list for mechatronics medium-frequency induction heating device

No. Items Parameters Amount Note
1 MF power supply
(series, energy saving) Customize One set SCR series circuit
2 Electric reactor customize One
3 Compensation capacity ark customize One
4 Inductor Heat workpiece One or more Stainless steel manifold
5 Connecting copper Connect power supply and capacitors One
6 Temperature test system   One Siemens
7 Discharging separation device Three options One RT
8 Automatic feeding system Washboard feeding device One
Chain transmission system One
Pinch roll material device One
Hydraulic system One
9 Intellectual control system
Touch screen   All kinds of alarm and operation, including water temperature rising alarm.
10 Cooling system Cool furnace and power supply One Rongtai

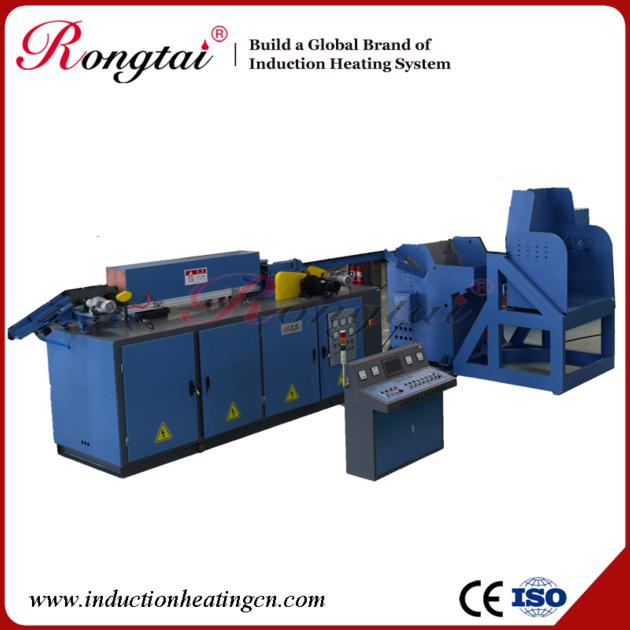

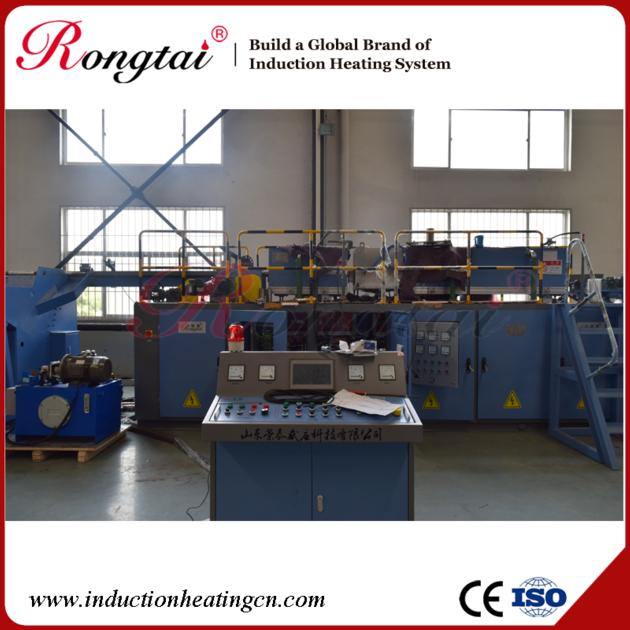

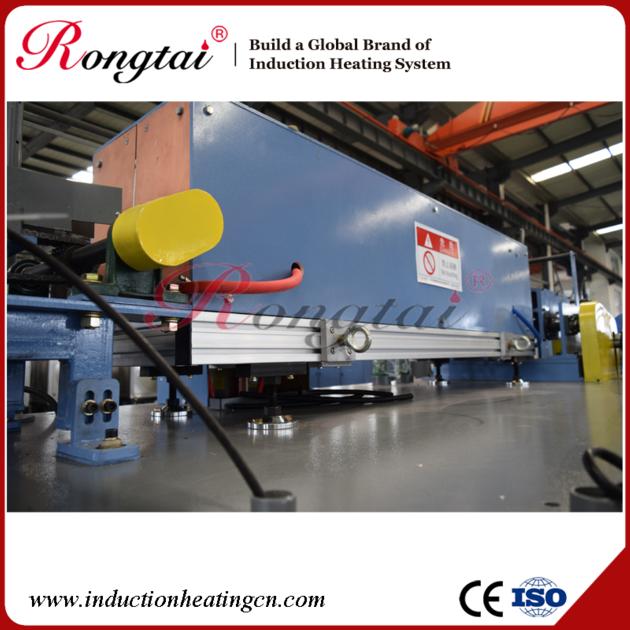

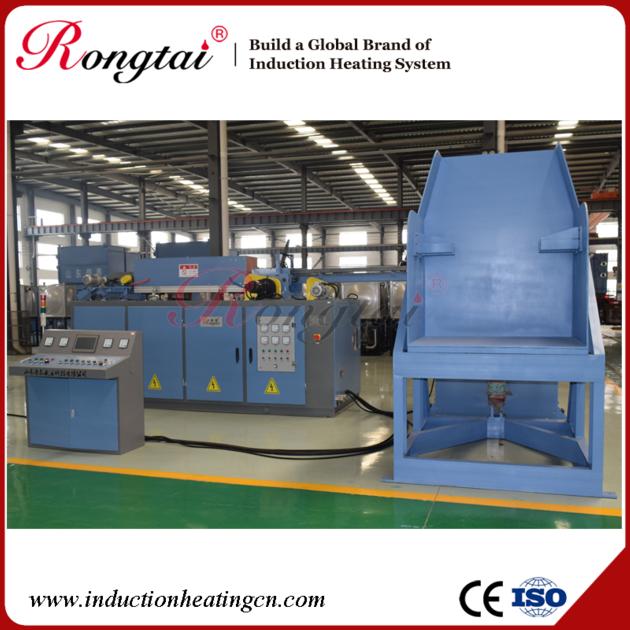

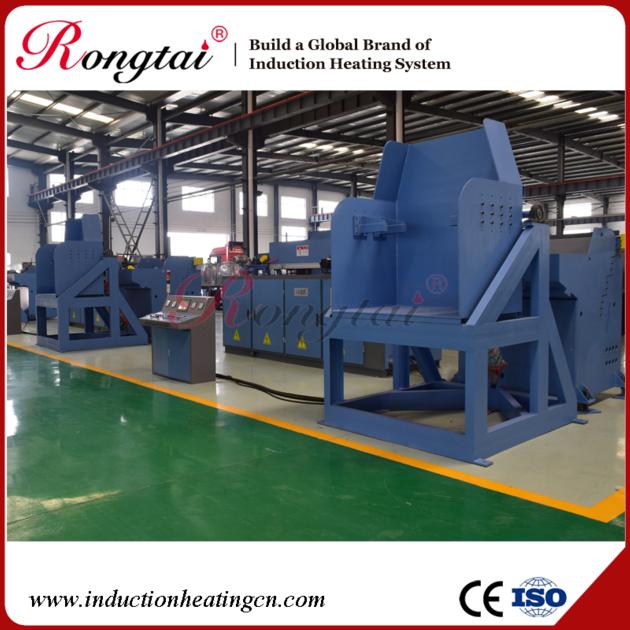

4. Product detail pictures:
5. Product advantage of bar heat treatment furnace :
1). Full power output
2). Equipment has features of easy operating, reliability, light weight, and no risk from high pressure.
3). Installation is simple, just need to connect power and power, a few minutes to complete.
4). Support 24 hours of continuous use, high efficiency and energy saving.
5). High induction heating speed, high efficiency and uniform heating, so there is no lack of welding and solder leakage.
6). Oxidation area is small, after welding, the bar is beautiful, firm and durable


6. Certification:
On 2015, Oct, 24, the State Electric Furnace Product Quality Supervision and Inspection Center has been tested our product GT800-1KG CL for our client(FAW FORGE(JILIN)CO.,LTD. The tested result revealed the tested product's every technical parameters are in line with the national standard. In the report, the billet diameter is 75mm, temperature rise from 20 degree room temperature to 1220 degree, and the power factor is 0.99. After consistent testing for 3 production periods, the average power consumption is 316.9kw·h/t, which reached international level of power consumption.
7. Product transportation and packaging:
8. Rongtai company:
During development, Rongtai has formed a unique brand competitive advantage: a leading independent R&D strength, advanced production technology, excellent after-sales service, high-end talent team and scientific management structure and finally formed a good quality and excellent service market reputation. Rongtai is willing to work with you together, hand in hand altogether will creature the glorious future.
