hydraulic wall panel installation machine
| Price: | US$ 4600 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | Qingdao,China |
Product Details
| Model No.: | WHY | Brand Name: | HENAN WISHES |
|---|
| Certification: | |
|---|---|
| Specification: |
Machine dimension: 2000x800x1800mm Machine weight:450KG Maximum panel dimension: Width: 600mm Thickness: 75mm-200mm Length: Max 4000mm Maximum panel load capacity: 350kg Full charging time: 6-8hrs Working continuously for 12 hrs |
Packaging & Delivery
| Packaging: | Wooden case |
|---|---|
| Delivery/Lead Time: | 7 days |
| Production Capacity: | 400 sets/year |
Product Description

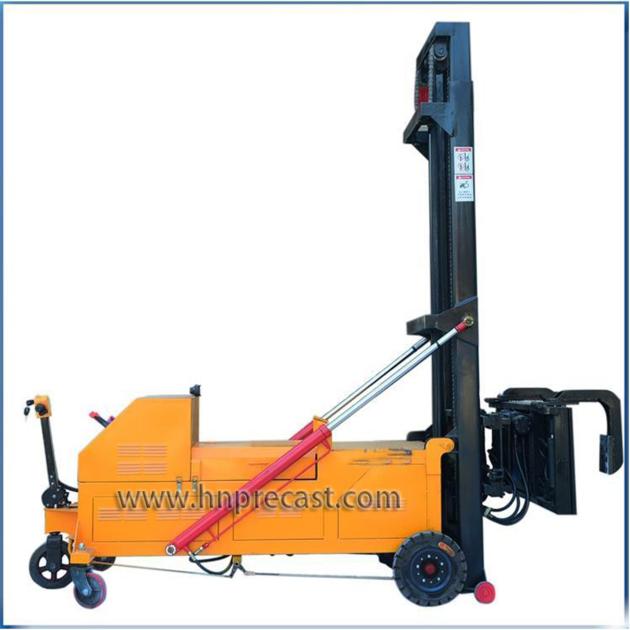

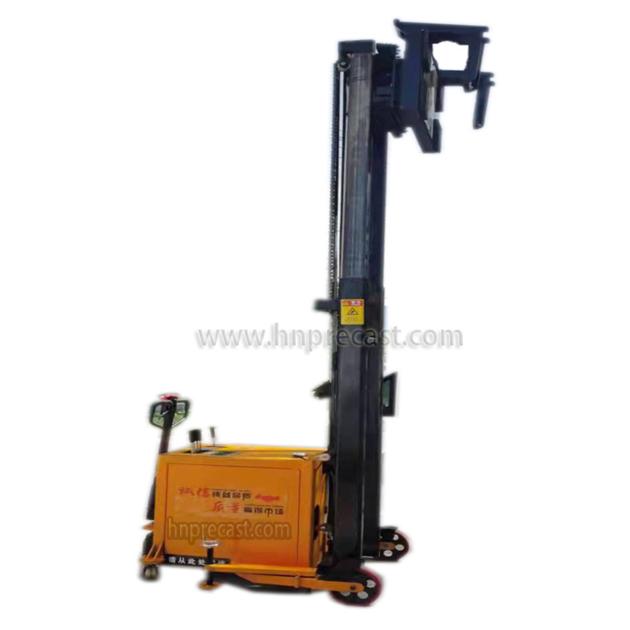

Hydraulic Wall Panel Installation Machine is a combination of electric and hydraulic power electric hydraulic machine

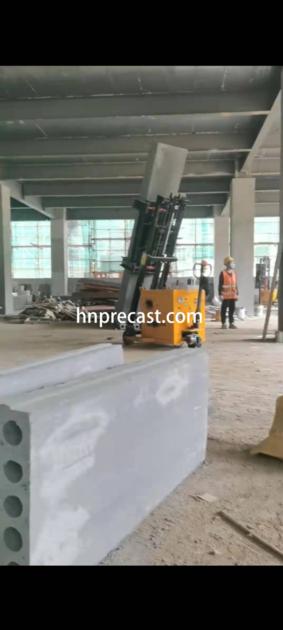

The wall panel installation machine is specially used to install various concrete wall panels, Acotec wall panels, ALC wall panels, EPS wall panels, AAC wall panels, and other types of interior and exterior partition wall panels. It is a very practical wall panel lifting machine, which is widely loved by construction and installation contractors.
Machine dimension: 2000x800x1800mm
Machine weight:450KG
Maximum panel dimension:
Width: 600mm
Thickness: 75mm-200mm
Length: Max 4000mm
Maximum panel load capacity: 350kg
Full charging time: 6-8hrs
Working continuously for 12 hrs
Advantages of Hydraulic wall panel installation Machine:
1. Reduce the labor intensity by using hydraulic oil cylinders to complete the grasping, handling and installation of the panel.
2. Reduce the damage to the panel by using hydraulic clamps and left and right hydraulic side shift system to complete the installation and splicingat the same time.
3. Improve work efficiency, save labor
|
