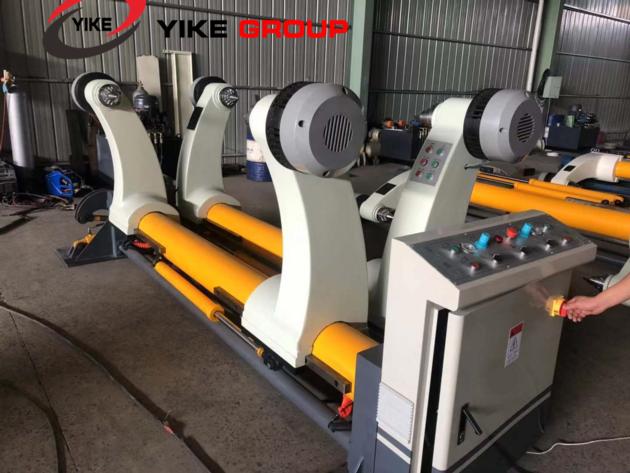

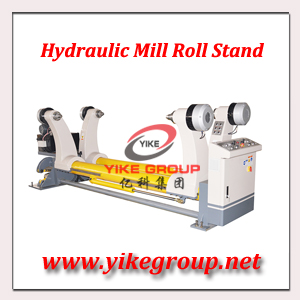

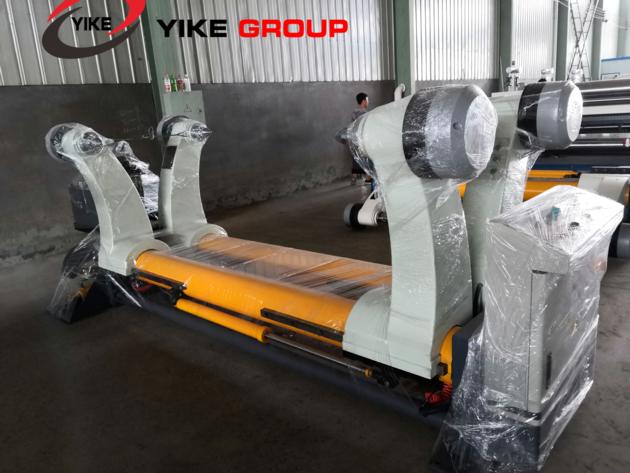

hydraulic mill roll stand
| Price: | US$ 14000 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T LC |
| Port of Export: | TIANJIN |
Product Details
| Model No.: | 1800mm | Brand Name: | YIKE |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Name of main parts Brands or place of origin material
Main shaft Day steel production Diameter 242mm Swing arm Production by own Resin sand gray iron HT200 wallboard Jigang prduction Q235AWelding parts bearing HRB,ZWZ,LYC expand chuck Zhejiang xusheng 3.4 inch shared Main electrical appliance France Schneider button CHINT NP2series Air switch French Schneider Pneumatic components Zhejiang Sonor CSM Hydraulic station Shandong zaozhuang Brake pump zhejiang |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 60days |
| Production Capacity: | 50/YEAR |
Product Description
structural feature OF HYDRAULIC MILL ROLL STAND：
1.adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others，the lifting of the paper adopts hydraulic drive.
2.brake adjustable adopts multipoint braking system.
3.every stand matched two sets paper car , and they can paper on the both sides at the same time.
technical parameters：
1.The range of clamping paper：MAX1800mm MIN1000mm
2.clamping diameters：MAX￠1500mm MIN￠350mm
3.main shaft diameter of paper holder：￠240mm
4.gas source work pressure（Mpa）：0.4---0.8Mpa
5.equipment size：Lmx4.3*Wmx1.8*Hmx1.6
6.single weight：MAX4000Kg
Hydraulic system parameters：
1.Work pressure（Mpa）:16---18Mpa
2.lifting hydraulic cylinder：￠100×440mm
3.Clamping hydraulic cylinder：￠63×1300m
4.hydraulic station motor power：3KW --380V -- 50Hz
5.solenoid valve voltage：220V 50 Hz
|
