Product Details

Model No.:	GL41	Brand Name:	STV

Certification:	ISO9001
Specification:	PN16 Cast Iron Y Strainer, BS EN 1092-2,Flanged End Model:GL41H-PN16-DI-4″ PN16 Cast Iron Y Strainer, cast iron Y-type filter body material is gray iron, suitable for water, steam, oil products, nominal size DN32-DN500, used for working pressure 1.0 MPa pipeline, filterable medium dirt, rust and other impurities. When the cast iron filter needs cleaning, as long as the removable filter cartridge is taken out, the filtered impurities are removed and re-loaded, the use and maintenance is very convenient. The filter is small in size, small in size, small in resistance, high in effect, easy to install and repair, low in cost, and short in drainage time. It only takes 5-10 minutes for small size filters. The general water supply network is 18-30 mesh/cm2, the ventilation network is 40-100 mesh/cm2, and the oil supply network is 100-300 mesh/cm2. STV Valve Technology Group Co., Ltd is a professional leader China Cast Iron Y Type Strainer Flanged PN16 ,Flange Y Type Strainer, Cast Iron Y Strainer , DIN Y STRAINER,Y-Strainer Flange Cast Iron manufacturer with high quality and competitive Date Sheet:PN16 Cast Iron Y Strainer, BS EN 1092-2,Flanged End

Certification:

ISO9001

Specification:

PN16 Cast Iron Y Strainer, BS EN 1092-2,Flanged End
Model:GL41H-PN16-DI-4″

PN16 Cast Iron Y Strainer, cast iron Y-type filter body material is gray iron, suitable for water, steam, oil products, nominal size DN32-DN500, used for working pressure 1.0 MPa pipeline, filterable medium dirt, rust and other impurities. When the cast iron filter needs cleaning, as long as the removable filter cartridge is taken out, the filtered impurities are removed and re-loaded, the use and maintenance is very convenient. The filter is small in size, small in size, small in resistance, high in effect, easy to install and repair, low in cost, and short in drainage time. It only takes 5-10 minutes for small size filters. The general water supply network is 18-30 mesh/cm2, the ventilation network is 40-100 mesh/cm2, and the oil supply network is 100-300 mesh/cm2.

STV Valve Technology Group Co., Ltd is a professional leader China Cast Iron Y Type Strainer Flanged PN16 ,Flange Y Type Strainer, Cast Iron Y Strainer , DIN Y STRAINER,Y-Strainer Flange Cast Iron manufacturer with high quality and competitive

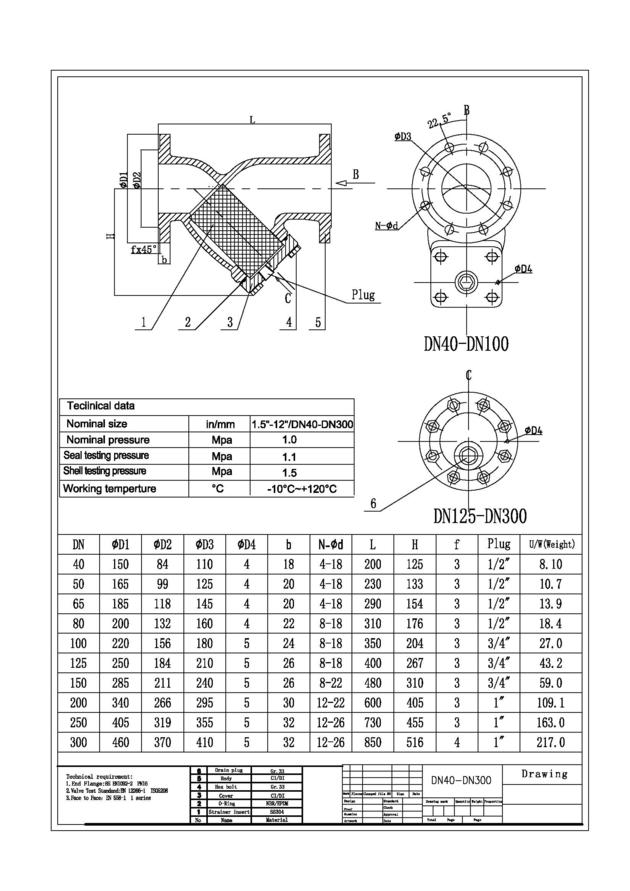

Date Sheet:PN16 Cast Iron Y Strainer, BS EN 1092-2,Flanged End

Packaging & Delivery

Packaging:	WOODCASE
Delivery/Lead Time:	30DAYS
Production Capacity:	wenzhou

Product Description

Description

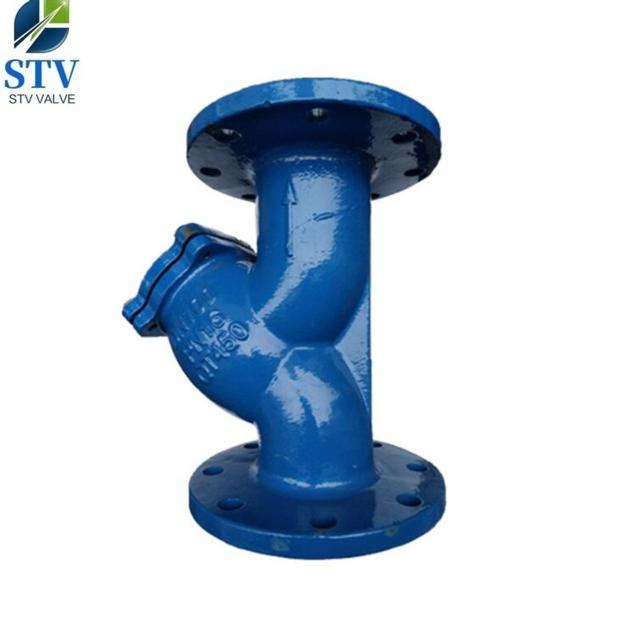

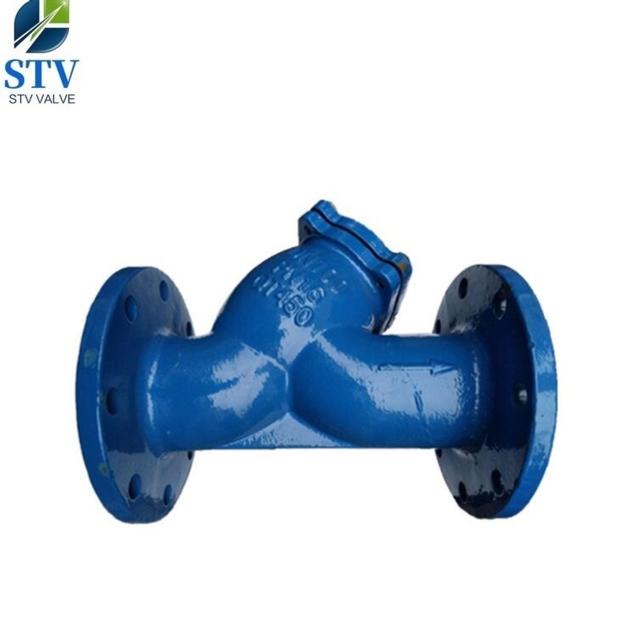

PN16 Cast Iron Y Strainer, BS EN 1092-2,Flanged End
Size: 1/2 to 12 inches
Test standard: API 598
Body and bonnet: cast-iron
Mesh Screen: stainless steel
Nominal pressure: PN1.0/1.6mPa
Disc: cast-iron, ductile-iron, and rubber
Water, steam, and oil as suitable medium
Bolt and nut: carbon steel with zinc-plated
Standard: ANSI, DIN3202-F1, and BS2080
Cast-Iron Y Type Strainer, Cast-Iron Y Strainers
Dimension: ANSI B16.1, DIN3202-F1, and BS2080
Flange drilled is according to ANSI B16.1, ANSI B16.5, DIN 2501, and BS4504
