horrizontal rebar bending center for sale
| Price: | US$ 15000usd / Unit |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT,LC,DP,DA |
| Port of Export: | qingdao,tianjin,shanghai |
Product Details
| Model No.: | LYWQ-32h | Brand Name: | LUYUAN |
|---|
| Certification: | CE |
|---|---|
| Specification: |

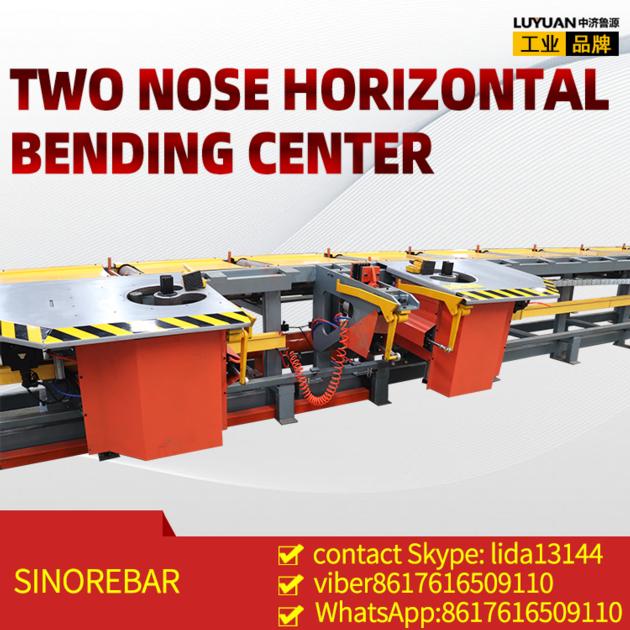

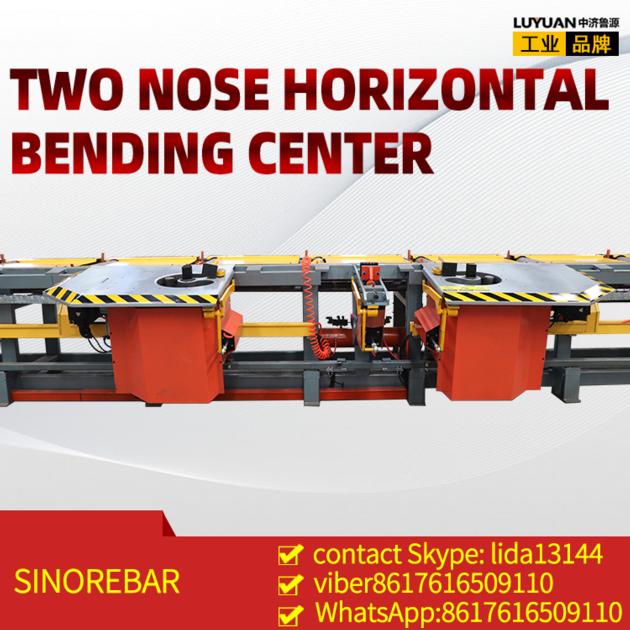

The size of CNC steel bending center produced by Shandong Zhongji Luyuan Company is 12000MM2180MM1560MM. The integrated structure of the whole machine is convenient to transfer, no need to fix, all mechanical transmission structure, low noise, convenient maintenance, mechanical and electrical integration design, advanced control template, The integrated design of the machine head moving mechanism is built into the box, which can realize bidirectional automatic bending of the steel bar. The maximum diameter of the bending steel bar is 32. The head part of Luyuan bending center adopts 8 brake cylinders, which is more stable and ensures the accuracy of the finished product. The entire fuselage is welded with manganese steel, which greatly enhances the rigidity of the fuselage and is not easy to deform. It is suitable for processing large-scale steel bars. All gear reducers use grinding gear reducers, which greatly improves the accuracy and enhances the service life. The bending center is equipped with multiple walking wheels to prevent damage and still continue to be used normally. The equipment is controlled by servo motors, the bending angle is accurate, the forming size is more accurate, and the speed can be adjusted. The control panel is controlled by PLC, equipped with graphics input function, can process and store 100 kinds of graphics, just call it during processing, the operation is simple and easy to learn |
Packaging & Delivery
| Packaging: | nude or wood |
|---|---|
| Delivery/Lead Time: | 3DAYS TO 15DAYS |
| Production Capacity: | 50 |
Product Description
Machine Dimension(LXWXH) 12000X2250X1025（mm）
Bending Speed 8-10r.p.m
Movement Speed 0.4-1.2m/s
Workbench Lean 0 º -15 º（Adjustable）
Voltage 380V 50Hz
Total Electrical Power 24kW
Actual Electricity Consumption 12kW/h
Total Weight 6500kg
Air Supply Pressure 0.6Mpa
Max Bending Angle Up Bending Angle
0-180º Min Bending Side Size Φ12mm 1100mm
Down Bending Angle
0—120º
Min Length of Bending Side 80mm Max Bending Side Size 11m
Min Length of Bending Rebar 1250mm
Double Bending Rebar (mm) Φ10-32mm Single Bending Rebar (mm)
（up bending） Ф36-50mm
Bending Rebar Diameter(mm)（HRB335） 10 12 14 16 18 20 22 25 28 32 36 40 50
Bending Bars Number 8 7 6 6 5 4 3 3 2 2 1 1 1
CNC steel bar bending center, also known as double-head bending machine, is an important equipment for bending steel bars. This equipment has a wide range of applications, is economical and practical, and is suitable for most projects. But with so many similar devices on the market, how should we choose?
1. Diameter of bendable steel bar
The diameter range of bendable steel bar affects the applicable scope of the equipment. Whether it can match the requirements of most projects is the factor that controls the cost. The diameter range of bendable steel bars in Shandong zhongji luyuan CNC steel bar bending center is Φ10-32mm rebar, which is suitable for the requirements of the diameter of bendable steel bars in most projects.
2.Second, accuracy
affects the accuracy of bending steel bars in two ways, one is the accuracy of the angle, the other is the accuracy of the length. These two aspects control whether the work piece is made to fit the size. The precision of the bending center length of CNC steel bar produced by zhongji luyuan is within ¯1mm, and the accuracy of angle is within ¯1®, which reduces the production of discordant sizes and reduces the cost.
3.Third, the bending head

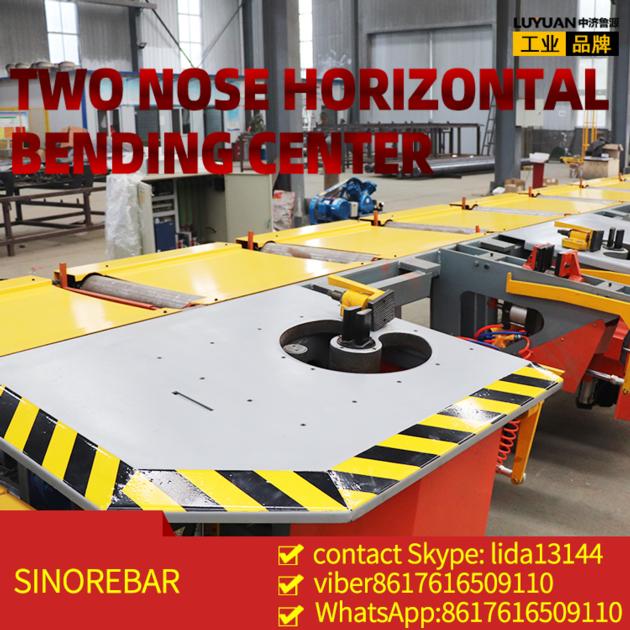

The bending head is the top priority of the whole equipment, and the quality of the bending head is the basis for making good and bad parts. There is a good bending machine head, with less effort. Shandong zhongji luyuan CNC Rebar Bending Center has dual heads, which can bend various stirrups at the same time or independently, improving working efficiency, increasing workpiece output and reducing working time.
4. Speed
The speed of a device directly affects the production efficiency. The bending speed of zhongji luyuan CNC steel bar bending center is 60®/s, and the moving speed is 0.6m/s, which greatly improves the production efficiency.
more details,contact shandong zhongji luyuan machinery co.,ltd ,facebook luyuan zhongji
|
