Product Description:
Automatic bearing outer ring inner race production line:

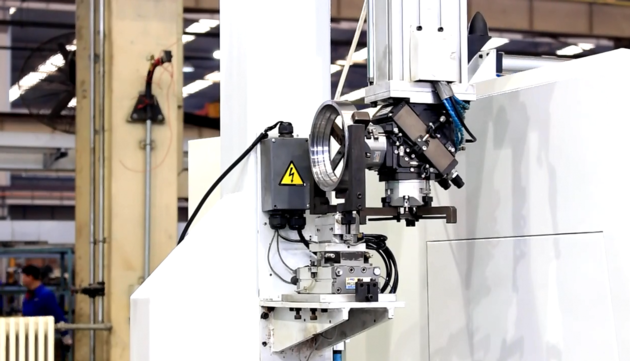

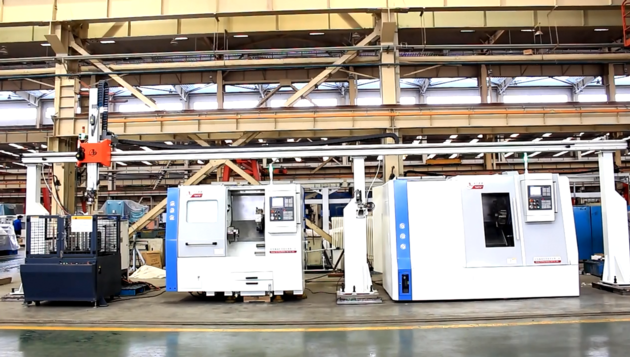

XSPT-002 bearing ring automatic line with three ADJ15P CNC lathes and a set of SMT20 Manipulator automatic loading and unloading device.
The automatic line to grab the workpiece weight ≤ 7Kg.
Outer diameter: 100mm-200mm
The width of disk type parts: 14mm-70mm.
Designed according to user-specific requirements.

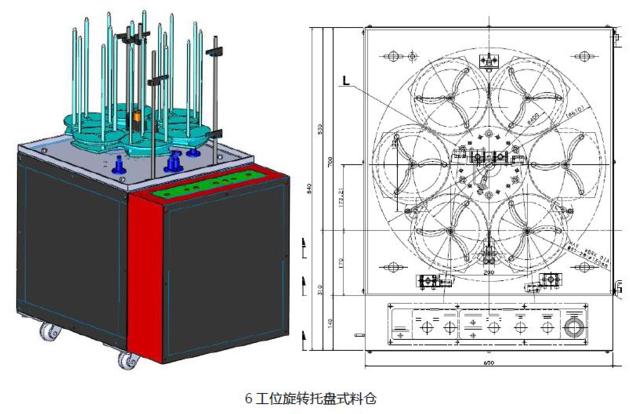

Six-station Rotary tray silos:
The feeding and unloading of the automatic line is completed by the 6 Station pallet type rotary silos, and the silo is controlled by the sensor induction signal to control the lifting of the feeding position and the stroke of each action

Silo specifications: 6 stations.
Delivery parts diameter range: Φ30 ~ Φ230;
Each station stack height: 400mm.
Each tray carrying weight: 35kg.

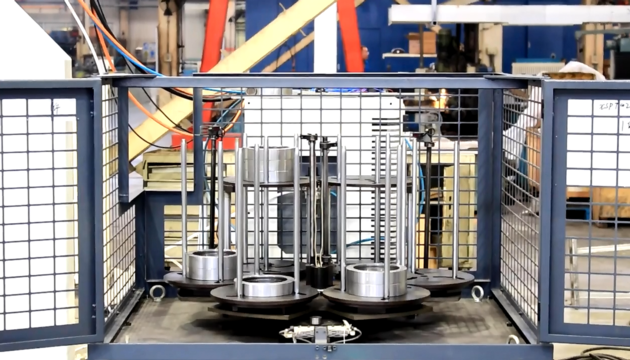

6-station tray-type rotating silo Action Description: Manually fill the blank filled with five stations, robots grab the blank from the feeding position, the sensor signals a bunker tray up a position (distance from the parts thickness). After the parts are processed, the robot puts the blank in the lower feeding position, the sensor sends a signal, and the lower feeding tray cn (the distance is the thickness of the part.

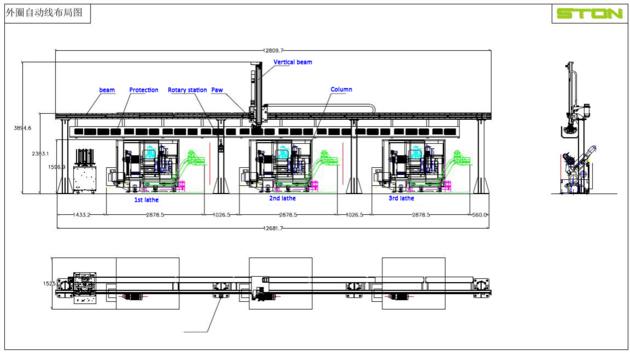

Automatic line configuration:
Our company provides the robot beams, vertical beams, columns, walking guide and so on through finite elementanalysis, to meet the automatic line rigidity requirements. Deceleration agencies, pneumatic components are selected Japanese brands.
