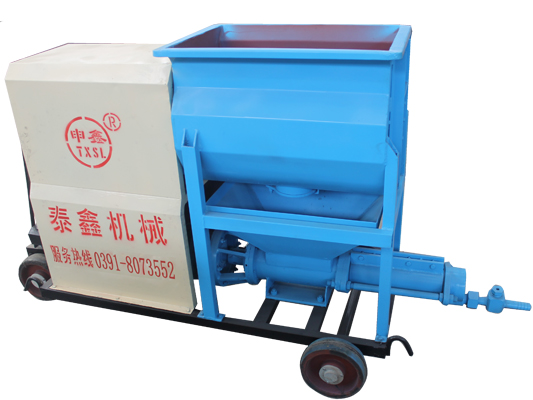

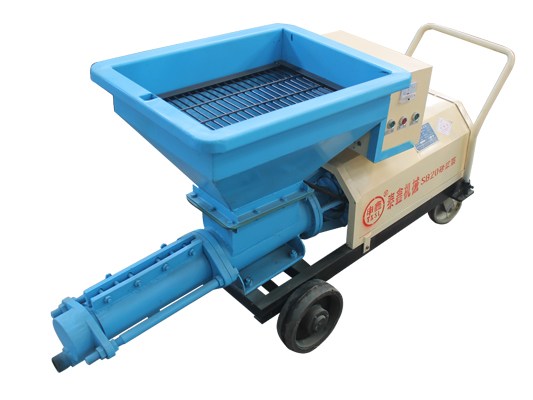

grouting pump

Main Features:
1,Compact structure and reliable performance.
2,SJB1 has the function of mixing, mixing and grouting can be completed synchronously by one machine .
3,Large range of water cement ratio: it is especially adaptable to mortar in high concentration.
4,Continuous grouting avoids instantaneous high pulsation produced by pumping work.
5,Grouting pressure will be released when getting setting pressure.
5,Equipped with air compressor and spray gun, it can be used for spraying protection of interior and exterior walls, building surface of civil engineering.

Technical Parameters
    SJB-20 BII
Grouting Capacity(L/H)       2000
Main Motor Power(kW)       5.5
Mixing Motor Power (kW)       4
Grain size (mm)     2
Water Cement Ratio (W/C)       ≥0.3
 Grout Pressure (MPa)       4
Mixing Volume (L)     160
Feeding Height (mm)       1300
Dimension (L x W x H)(mm)       1955x600x1300
Working Air Pressure (Mpa)       0.3-0.6
Air Consumption ( m±/min)       ≥3
Weight (KG)       450
Remarks High Voltage4Mpa with Mixing Function

Henan Weibang Intelligent Technology Co., Ltd, located in Zhengzhou High-tech District of Henan province, China, is specialized in research and manufacture of shotcrete related equipment.
Since its establishment in 2006, it has been growing rapidly and developed a great reputation in the market. We have obtained  33 utility model patent certificates, mine product safety sign certificates, and ISO quality management system certificate and CE.

Our main business include: shotcrete manipulators, automatic feeding shotcrete machines, all-in-one of mortar mixing and grouting machines, small and medium size concrete spraying machines, grouting machines, cement grout pumps, removable dedusting water mist cannon sprayers, rebar bending machines, rock drills, welding machine etc, which are widely used in mining, railway, highway, tunneling, subway, slope and hydro-power engineers.

Get more about us please browse website:* or whats app:8615503911273
