food grade liquid silicone rubber for making mould

1. Description of food grade liquid silicone rubber for making mould
Addition-curing, Food grade, Translucent, Two-component mold making silicone.

2. Characteristics of food grade liquid silicone rubber for making mould
Acceptable for food contact
Outstanding release properties
Low viscosity
Easy mixing and degassing
High flowability
Odorless and Nontoxic
Enhanced durability

3. Application of food grade liquid silicone rubber for making mould
Food Grade Related Applications
Cake mold
Chocolate moldmaking
Candy moldmaking
Baking moldmaking
Ice trays molding
Casting butters
Casting for Kitchen products

4. Datesheet of food grade liquid silicone rubber for making mould
Item No. Appearance Hardness
(shore A) Viscosity (CPS) Tensile-strength
( kgf /cm2 ) Tear-strength
(kgf /cm2 ) Elongation-break(%) Mixing ratio operation time
(25 ℃ ) Curing time
( 25 ℃) Shrinkage
(%)
SP-805 translucent 5 3000¯1000 30¯5 8¯2 550¯50 1:1/10:1 20-30 2-3 25
SP-810 translucent 10 4000¯1000 30¯10 12¯2 550¯50 1:1/10:1 20-30 2-3 25
SP-815 translucent 15 4000¯1000 35¯10 14¯2 550¯50 1:1/10:1 20-30 2-3 25
SP-820 translucent 20 5000¯1000 40¯10 20¯2 500¯50 1:1/10:1 20-30 2-3 25
SP-825 translucent 25 6000¯1000 45¯10 22¯2 500¯50 1:1/10:1 20-30 2-3 25
SP-830 translucent 30 7000¯1000 50¯10 24¯2 450¯50 1:1/10:1 20-30 2-3 25


5. Using instructions of food grade liquid silicone rubber for making mould
Step 1: Prepare and clean the prototype.
You must make sure your original molds perfect, fix the original mold on a board, then using some assistant material (like cardboard) to make a frame for to surround the prototype. The frame is no need, if we make the mold by brushing way.

Step 2: Take the silicone and catalyst as the ratio 100:2 (silicone : catalyst= 100:2), mix the silicone rubber and catalyst evenly.

Notes: rtv silicone rubber is a kind of flowing liquid and it contains two parts. Part A is a kind of flowing liquid and part B is the curing agent. Remember to mix part A and part B evenly, otherwise the silicone rubber will be partly solidified and this will bring troubles for your final operation. What's more, the finishes molds will have a short life. All of these will cause a waste of silicone rubber.

Step 3: Vacuum pumping.
After mixed the silicone evenly, it is better to release the bubble by vacuum pumping.

Step 4: Pouring cast or brushing cast.
After released the bubble, we can pour/brush the silicone rubber on the prototype.

Notes: Please finishes all the steps within the operation time. If not, it will cause cross linking reaction, and no more further steps will be available. So, we have to pay attention to the pot life and curing time.

How to make mould
Video of how to make molds with our liquid silicone rubber:
https://*/watch?v=7Vjm2ygijnk
https://*/watch?v=QZGeZpjNccw
https://*/watch?v=P0mBMS0pmWM

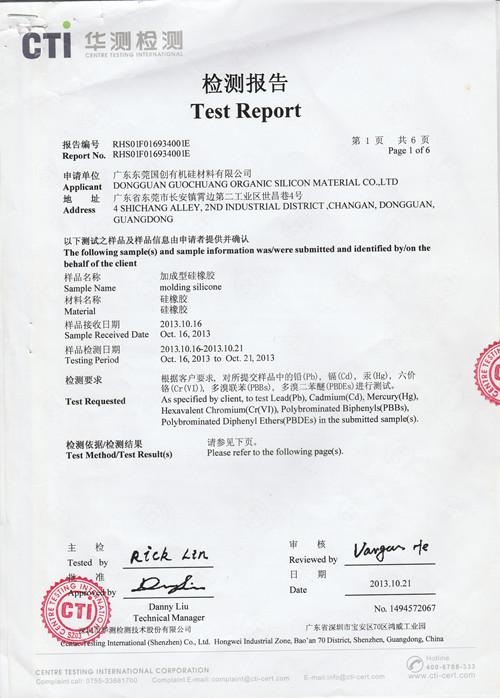

Certifications


Packaging & Shipping
Packing:
20KG/drum vacuum packing for part A + 20KG/drum vacuum packing for part B
25KG/drum vacuum packing for part A + 25KG/drum vacuum packing for part B
200KG/drum packing for part A +200KG/drum packing for part B
