exagonal Wire Mesh

Hexagonal Wire Mesh - Zinc or Galfan Material for Corrosion Resistance

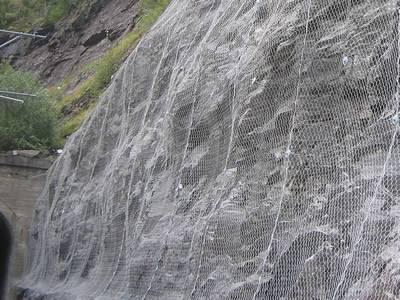

Hexagonal wire meshes are covering the steep mountain.
HWM-01: Hexagonal wire mesh can block rockfalls and protect road safe.
Hexagonal wire mesh is made of high quality galvanized or Galfan coated steel wires. The heavy zinc coating makes the hexagonal wire mesh a outstanding corrosion and rust resistance performance. The wires are double twisted into hexagonal meshes. It is non raveling and the edge of the mesh is reinforced with a thicker wire, which is called selvedge wire.

The hexagonal wire mesh are installed on the slope to resist the landslip, debris flow, snow avalanche and other natural hazard.

The hexagonal wire mesh is a type of active protection system, which is fastened by the anchors, bolts and steel cables. The hexagonal wire mesh are deployed from top of the mountain or slope down to the bottom. And each hexagonal wire mesh will be sewn together at the edge to form a whole protection to the slope. The small hexagonal meshes can block smaller stones and minimize the harm to the ground, people and properties.

The hexagonal wire mesh can also be used as passive rockfall barrier system. The hexagonal wire mesh or with steel ring net is fastened to the ground by supporting rope, foundation base and steel column. It is widely used to block the snow avalanche.

Specifications of hexagonal wire mesh
Material: galvanized wire or Galfan wire.
Wire diameter: 2.7 mm / 3.0 mm.
Mesh size: 6 cm × 8 cm, 8 cm × 10 cm.
Zinc coating weight: ≥ 260 g/m2.
Roll width: 0.8 m, 1.0 m, 1.2 m, 1.5 m, etc.
Roll length: 50 m or 100 m.
Features of hexagonal wire mesh
Corrosion and rust resistance.
Weather resistance.
High tensile strength.
Easy to install and uninstall.
Environmental friendly.
Wide range of applications.
Package of hexagonal wire mesh
The hexagonal wire meshes will be perfect packed to ensure the good condition when our customer received. The hexagonal wire mesh can be packed in bulk and it can also be packed into pallet. The bulk package is economical and the pallet package can supply better protection for the hexagonal wire mesh.

Several rolls of hexagonal wire meshes in the container.

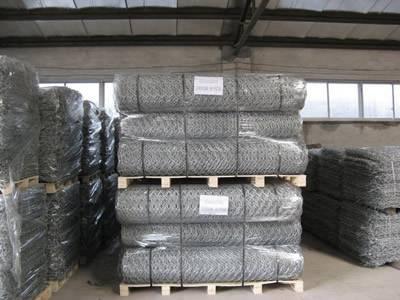

HWM-02: Bulk package.Two pallet of hexagonal wire meshes on the ground.
HWM-03: Pallet package.
Applications of hexagonal wire mesh
Hexagonal wire mesh is widely used in the rockfall barrier system for slope or mountain protections. It can be used individually for common use and it can also be used with steel wire ring net for high strength protections.

The hexagonal wire mesh is covering the slope with several plants growing

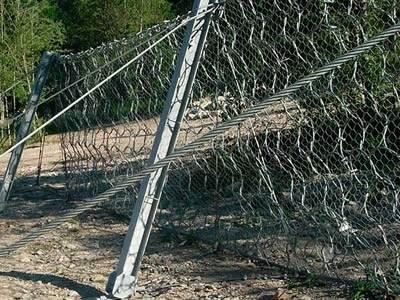

HWM-04: Hexagonal wire mesh in active rockfall barrier system.The hexagonal wire mesh and steel ring net is fastened onto the ground by steel column and foundation base.
HWM-05: Hexagonal wire mesh in positive rockfall barrier system.
