ethanol low temperature extraction and concentration equipment

Price:	US$ 110000
Minimum Order:	1set
Payment Terms:	T/T
Port of Export:	Ningbo/Shanghai/Guangdong

Product Details

Model No.:	500-2000L	Brand Name:	Huashang

Certification:	CE
Specification:	The series of single-effect evaporators have three types 1. WZsingle-effect external circulation vacuum concentrator is the ordinary type, which is used for evaporation of water solution. 2. WZH single-effect external circulation vacuum recovery concentrator is the alcohol recovery type, which is used for evaporation of alcohol solution, It has higher cooling area to ensure the alcohol recovery. Its recovery strength reaches 70~85® , the alcohol consumption rate is less than 5% and the alcohol temperature after the recovery is less than 40º C. 3. WZS single-effect external circulation vacuum ointment collection concentrator is used for single-effect evaporation and thick ointment collection. After the normal single-effect evaporation, the valves connecting the spraying tube and circulating tube in the heating chamber and evaporating chamber will be closed. The liquid materials will fully enter the evaporating chamber and through the jacket heating in the evaporating chamber, normal pressure type or pressure relief type concentration will be carried out. The concentration specific gravity of materials will be increased to 1.35-1.45. cold extraction principle : Under the function of high pressure difference, the cells of the material object burst instantly (break the wall), the original object swell to several times or dozens of times, so that the effective components fully contact the solvent so as to achieve as high as 95% efficient extraction rate. After liquid & solid separation, the residue won’t be wasted, after fermentation, it can be made into organic fertilizer.

Certification:

Specification:

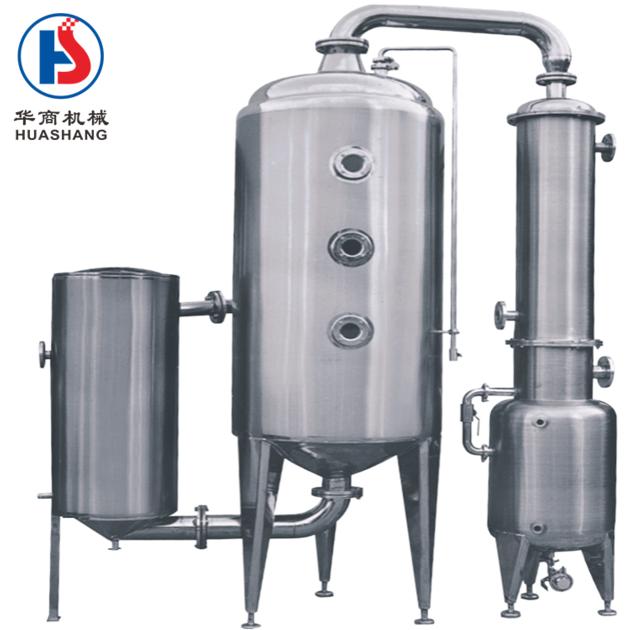

The series of single-effect evaporators have three types

1. WZsingle-effect external circulation vacuum concentrator is the ordinary type, which is used for evaporation of water solution.
2. WZH single-effect external circulation vacuum recovery concentrator is the alcohol recovery type, which is used for evaporation of alcohol solution, It has higher cooling area to ensure the alcohol recovery. Its recovery strength reaches 70~85® , the alcohol consumption rate is less than 5% and the alcohol temperature after the recovery is less than 40º C.
3. WZS single-effect external circulation vacuum ointment collection concentrator is used for single-effect evaporation and thick ointment collection. After the normal single-effect evaporation, the valves connecting the spraying tube and circulating tube in the heating chamber and evaporating chamber will be closed. The liquid materials will fully enter the evaporating chamber and through the jacket heating in the evaporating chamber, normal pressure type or pressure relief type concentration will be carried out. The concentration specific gravity of materials will be increased to 1.35-1.45.

cold extraction principle :

Under the function of high pressure difference, the cells of the material object burst instantly (break the wall), the original object swell to several times or dozens of times, so that the effective components fully contact the solvent so as to achieve as high as 95% efficient extraction rate. After liquid & solid separation, the residue won’t be wasted, after fermentation, it can be made into organic fertilizer.

Packaging & Delivery

Packaging:	Wooden box package
Delivery/Lead Time:	30days
Production Capacity:	100units/year

Product Description

Q：What is the requirement for plant to operate ethanol low-temperature extraction and concentration?
A：It should be explosion-proof workshop.

Q: What is the solvent being applied in the hemp extraction and concentration?
A: Ethanol.

Q: Is there a chiller in the system?
A: Yes, it is extracted at -40℃ to -60℃ temperature.

Q: Does the concentration process work under vacuum？
A：Yes

Q: Can ethanol be recycled after extraction？
A：Yes. The ethanol being recycled will be pumped back to the extraction tank automatically to reuse.

Q: What is the recycle rate of ethanol in the process？
A:95% . Because there is no water adding into the whole system.

Q: How to recycle ethanol during the extraction and concentration process？
A: There will be condensing unit to recycle the ethanol!

Q：Do you offer install and adjusting service?
A：Yes

Q: What is the procedure of ethanol extraction and concentration?
A: 1. Mixing ethanol and hemp 2. Centrifuge the mixed material and separate the hemp paste and liquid 3. Vacuum concentration process

Q：How long is the extraction procedure?
A：About 40 minutes.

Q: Will the ethanol extraction and concentration procedure remove THC and wax?
A：No, you will need short diameter molecule distillation to remove THC and wax. We can also offer this equipment.

Q：What is the state of CBD oil being extracted and concentrated?
A: It is liquid state

Q: If some problem or fault happened during operation of the equipment, how to deal with it?
A: We will send guidance by video. If necessary, we will arrange engineers to your company.

Q: What is the delivery time?
A: 50 days after deposit arrives.

ethanol low temperature extraction and concentration equipment
