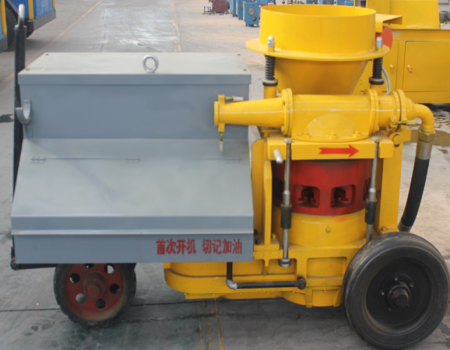

dry shotcrete machine
| Price: | US$ 1800 / Set |
|---|---|
| Minimum Order: | 1set |
| Payment Terms: | T/T, L/C |
| Port of Export: | Qingdao |
Product Details
| Model No.: | PZ-7, PZ-9 | Brand Name: | Weibang |
|---|
| Certification: | CE, ISO9001 |
|---|---|
| Specification: | This series are divided into SGP-6, PZ-7, PZ-9 and other models and are mainly used for dry-mix concrete spraying in tunnelling, culvert, subway, slope stabilization, swimming pools, mining and underground engineering; The explosion-proof type is suitable for coal mining, chemical mine and other places with high combustible gas. |
Packaging & Delivery
| Packaging: | wooden case |
|---|---|
| Delivery/Lead Time: | 7days |
| Production Capacity: | 7 cube |
Product Description
Main Features:
1, Enlarge feeding inlet facilitates the continuity of concrete output. Air flow can be set at a certain rate, also can be adjusted timely to ensure the continuity of the concrete and accelerator.
2, New straight-through rotor, macromolecule elastic chamber, combined and soft discharge elbow and rubber liner prevent concrete sticking and blocking in the machine.
3, Wear parts are made of the materials with unique structures. Elastic and automatic clamping device improves tightness of the machine and reduce the wear of parts.
Technical Parameters
Technical Parameters PZ-7
Working capacity (m± / h) 7
The max. transmission distance (m) 30 vertical, 100
horizontal 30
Recommended water-cement ratio ≤0.4
Accelerator dosage (%) 2-10
Max. grain size (mm) 20
Spraying hose diameter (mm) Φ57/Φ64
Working air pressure (MPa) 0.4-0.6
Air consumption (m± / min) 10-12
Feeding height (mm) 1300
Main motor + vibration motor (kW) 7.5+0.25
Machine weight (kg) 850
Dimensions (L × W × H) (mm) 1500×800×1300
|
