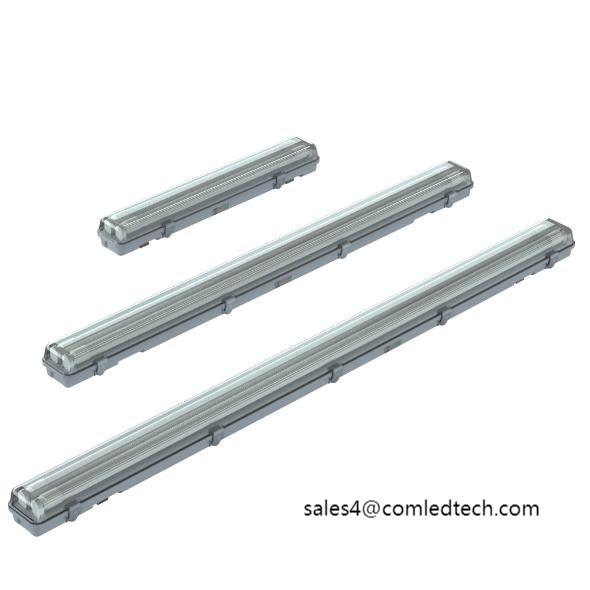

double tube emergency Linear Fixture

This double tube emergency Linear Fixture adopts SMD2835 chips, can achieve higher lumen out put. The tubes of this emergency Linear Fixture adopts bridge wiring design, no need to consider the power direction of the tube. It's easy for installation of the led liner luminaire. Besides, the huge terminal of the led liner luminaire is easy for wiring.

This vapor tight led liner luminaire adopts high-grade PC base and milky PC diffuser housing, good quality seal for better waterproof.

It widely used in tunnel, Rail-way or Metro station, Supermarket, stair well, corridor, evacuation passage especially parking lots, electrical room, ships and other basements.

Lamp Luminous Efficiency(lm/w): 125
Warranty(Year): 3-Year
Type: emergency Linear Fixture
Application: Office, Warehouse, Garage, Factory
Lighting solutions service: Lighting and circuitry design, DIALux evo layout, Agi32 layout
Model Number: ZL-PTBLP36-4FT-CE
Color Temperature(CCT) : 5500K (Daylight)
Input Voltage(V): AC200-240V
Color Rendering Index(Ra): 82
Support Dimmer: NO
Lifespan (hours): 53000
Working Time (hours): 53000
Length: 4ft
IP Rate: IP 65
Beam angle: 120 Degree
Material: PC + PC
Wattage: 2*18w
