Dewaxing Autoclave

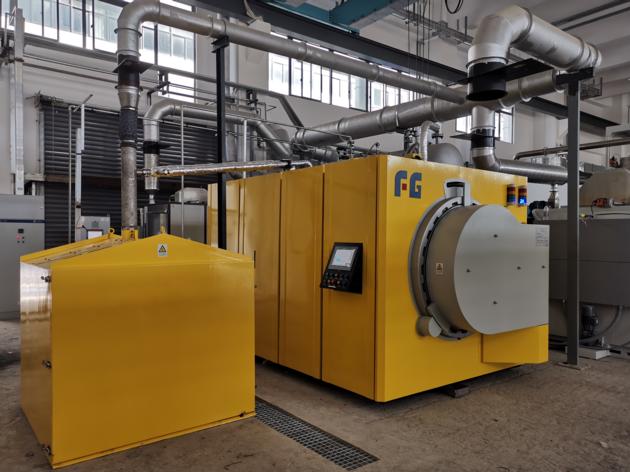

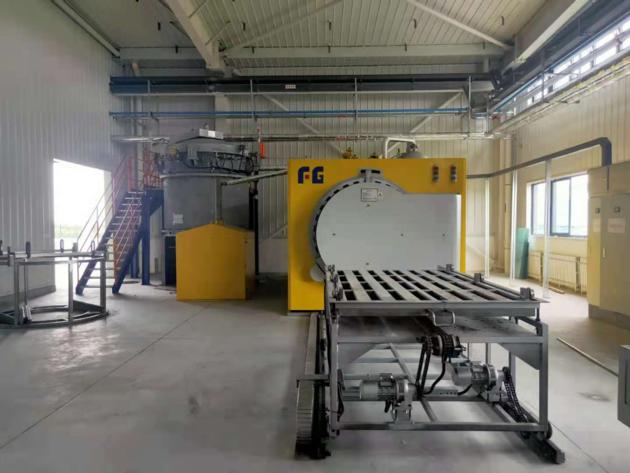

Dewaxing autoclave uses the high temperature and high pressure steam to remove wax from ceramic shell mold. FUGE dewaxing autoclave adopts the Siemens control system to automate the dewaxing process. In the whole process of lost wax, our dewaxing autoclave needs no labor to operate the machine. We also installed double safety protection devices on our dewaxing autoclave.

Dewaxing autoclave key features
Efficiency ：Designed as an integration of the steam boiler and dewaxing chamber to save space and promote efficiency.
Easy operation：Easy to operate in automatic and manual mode.
Fast：Double layers pressure vessel takes short time for pressure balance, and the time can be adjusted on certain conditions.

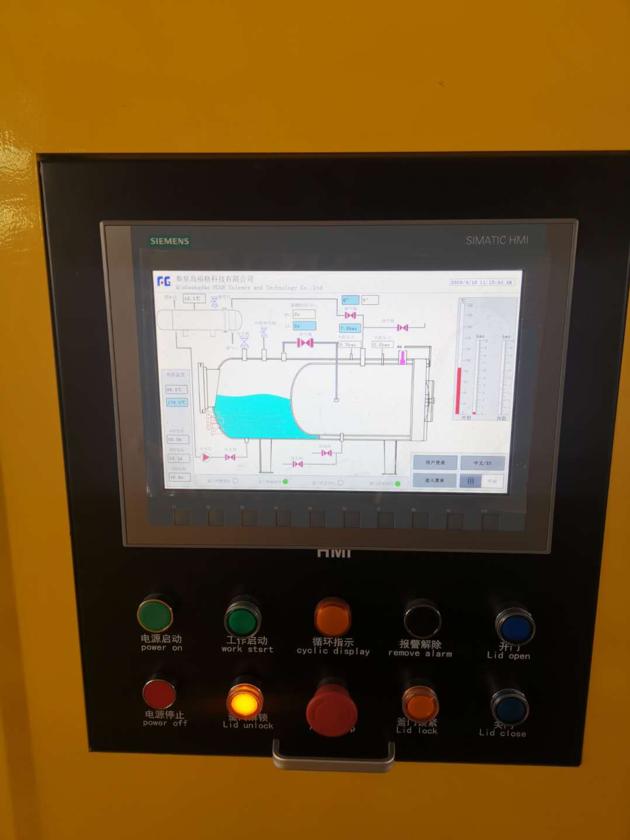

Stability : Siemens PLC programmable controller with strong anti-interference ability and stable performance.
Traceability ：Paperless recorder to monitor the whole working status, and allow user downloads the technical process data for analysis.
Green Optional Heat Recovery Unit to save cost.

Parameter list
1 MODEL FG-TLF1000 FG-TLF1200 FG-TLF1400
2 Design pressure 1.0MPa 1.0MPa 1.0MPa
3 Design temperature 183.2℃ 183.2℃ 183.2℃
4 Working pressure 0.9 MPa 0.9 MPa 0.9 MPa
5 Working temperature： ≤179℃ ≤179℃ ≤179℃
6 Pressure
Balance Time ≤5s(at the pressure of 0.6 Mpa) ≤5s(at the pressure of 0.6 Mpa) ≤5s(at the pressure of 0.6 Mpa)
7 Inner Dimension Φ1000×1200 Φ1200×1500 Φ1400×1600
8 Dewaxing Time 0～60min (Adjustable） 0～60min (Adjustable） 0～60min (Adjustable）
9 Heat Recovery Unit Optional Optional Optional
10 Overall Size 3600(L)×2200(W)×2400mm(H) 3930(L)×2300(W)×2910mm(H) 4350(L)*2460(W)*3100mm(H)
