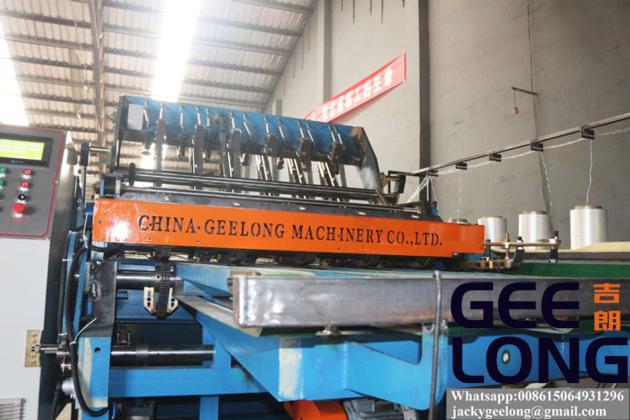

core veneer builder machine
| Price: | US$ 28700 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | telegraphic transfer |
| Port of Export: | QINGDAO |
Product Details
| Model No.: | Brand Name: | GEELONG |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Driver:Servo-type
machine dimension:12000*2600*2500mm Structure:Integral steel plate cutting Transmission speed:0-35m/minute adjust Working efficiency:300pcs/h splicing machine length:3600mm splicing machine height:2500mm Splicing machine width:2600mm Collecting machine length:4000mm Collecting machine height:2500mm Collecting machine width:2200mm PLC computer module:TDATDA PLC(Tai wan) Total weight:5500kg Total power:15.5kw Front driver:INVT servo motor 3kw(China) Rear driver:INVT servo motor 3kw(China) Edge cutter driver:Motor+CHAINÂ TAILclutch(Tai wan) Front drive reducer:Star type reducer8/1ZD(CHINA) Rear drive reducer:Star type reducer8/1ZD(CHINA) Rotary actuator:FESTO(Germany) Automatic core veneer corrector:Yes Water cooling air condition:Yes Electric lateral platform:Yes 4*4-4*8 electric conversion:Yes Elevator-platform:Yes Speed control:Yes Finished panel Counter:Yes |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 20 days |
| Production Capacity: |
Product Description
Veneer(1.2-3.6mm thickness) after drying may have different length and thickness, and the shapes may get irregular. This machine can detect the width, thickness, cavities of the panels, and have them rimmed, glued, spliced, cut to length and stacked automatically. With this machine, customized board of different sizes can be spliced. This machine is mainly used for the production of plywood, LVL, floor base material, furniture board, construction plywood, container flooring board, melamine plywood, blockboard...etc, and it can also be used for the horizontal splicing of rotary cut core veneer with the thickness of 1.2-3.6mm. This changes the traditional manual veneer forming technology and makes plywood paving unitized and automatic. Using this machine saves lots of core finishing worker, improves the quality of products and saves labor costs.
|
