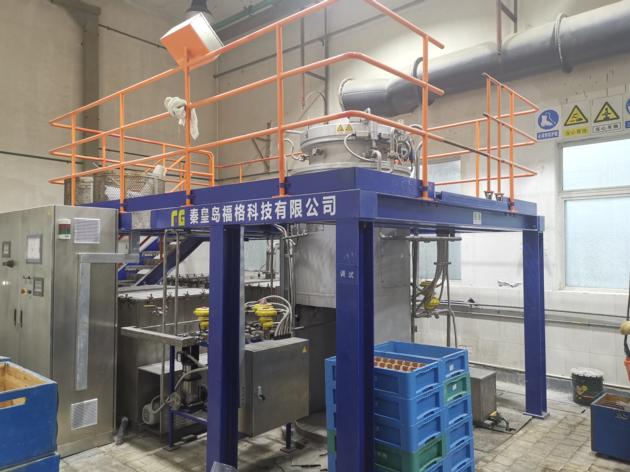

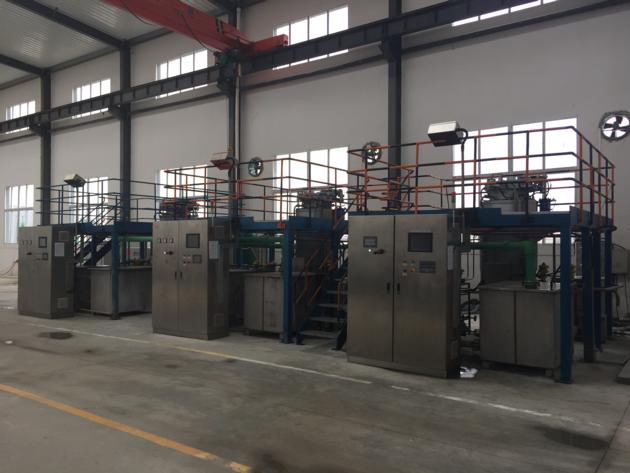

Ceramic Core Leaching Autoclave

The Ceramic Core Leaching Autoclave is designed for removing the silica-based ceramic cores. We have delivered many sets of core leaching autoclave to the aerospace turbine blades manufacturers all over the world. Except for the ceramic core leaching autoclave, we also can customize the core leaching autoclave for aluminum core.
The core leaching autoclave is widely used in high end precision castings manufacturing, and turns to be the most important core equipment during the investment casting.

Key features
• Efficiency : complete core leaching within several hours
• Safety : No caustic liquid and air leaking to ensure the safety of environment and operator during its running .
• Stability : International brand key parts to ensure the reliable and stable running.
• Saving cost Caustic and water circulating system aims to save costs.
• APC: Easy to operate and maintain through Siemens PLC control system and “FUGE” Advanced control technology.
• Telecommunication: Remote monitoring system facilitates the diagnosis and maintenance of the autoclave .




Parameter list
No. Name Specification
1 Model FG-TXF600 FG-TXF750 FG-TXF1065
2 Diameter 600mm 750 mm 1065mm
3 Depth 1200mm 1200 mm 1800mm
4 Effective working diameter 520mm 700 mm 990mm
5 Effective working depth 1000mm 1000 mm 1400mm
6 Maximum design pressure 10 bar 10bar 10bar
7 Normal working pressure 6 bar 6 bar 6 bar
8 Control system Siemens PLC Siemens PLC Siemens PLC
