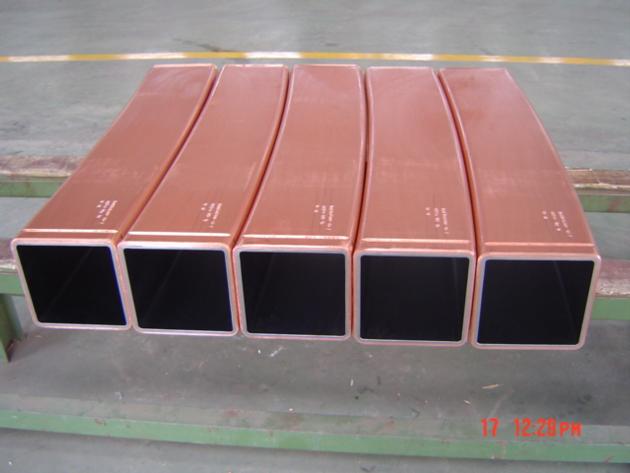

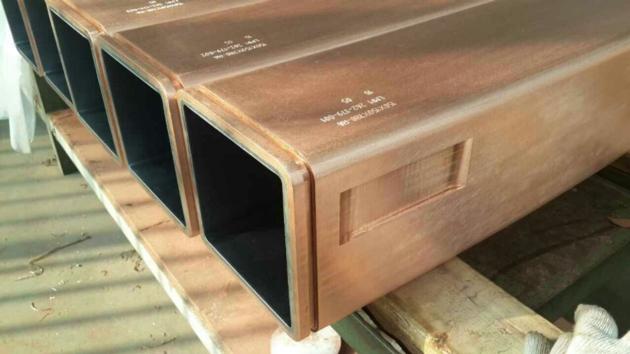

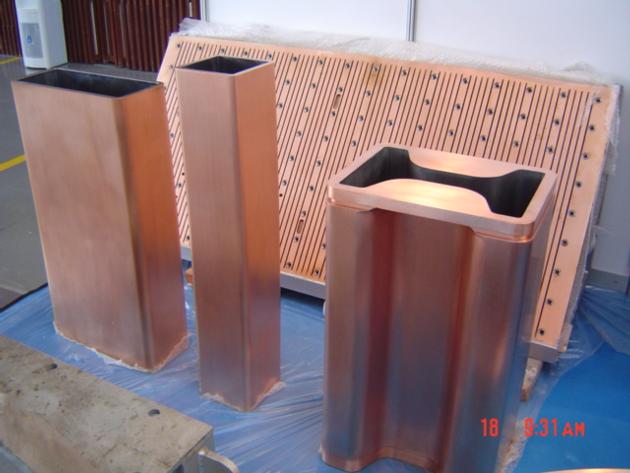

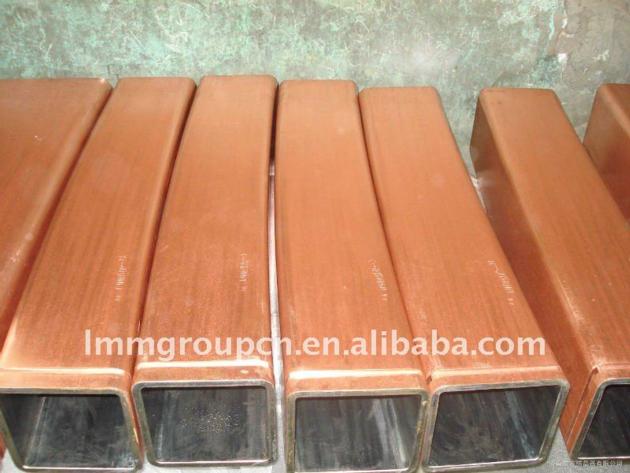

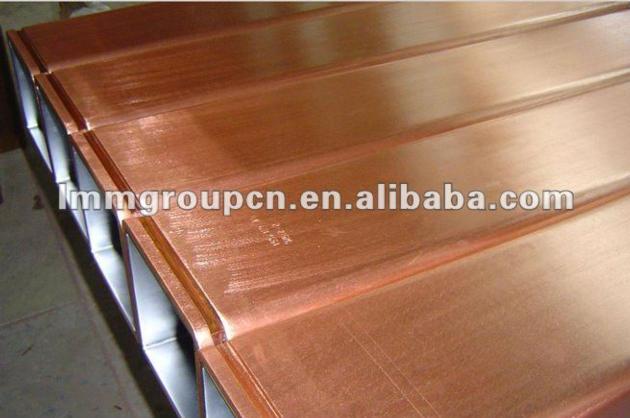

copper mould tube continuous casting machine Dalian

The main features of high-efficiency continuous casting mold copper tube material: high-efficiency continuous casting mold material with good thermal conductivity, high recrystallization temperature, high thermal fatigue resistance, high strength, good wear resistance, long service life, high efficiency continuous casting mold copper tube The main feature of the material is that the overall performance of the above properties of the copper tube material is optimal.

In order to improve the wear resistance of the chrome plating layer and prolong the service life of the copper tube of the mold, a nickel-cobalt alloy coating layer of 0.4-0.5 mm thick is added between the inner surface of the copper tube of the crystallizer and the chrome plating layer as a transition layer. Therefore, it is called nickel-cobalt alloy - hard chrome plating. Referred to as composite copper plated tube. The metal content is: the hardness of the coating is 300-600 HV.

Because nickel-cobalt alloy coating has good chemical corrosion resistance, thermal erosion resistance and wear resistance. It not only blocks the diffusion of Zn, S, Cd and F in the molten steel to the inner surface of the copper tube of the mold, but also acts as a binder between the inner surface of the copper tube of the crystallizer and the chrome plating layer, so that the chrome layer is wear-resistant. The performance has been greatly improved. In addition, after the chrome layer is worn, the nickel-cobalt alloy coating can continue to work instead of the chrome layer, thereby prolonging the service life of the crystallizer copper tube.
