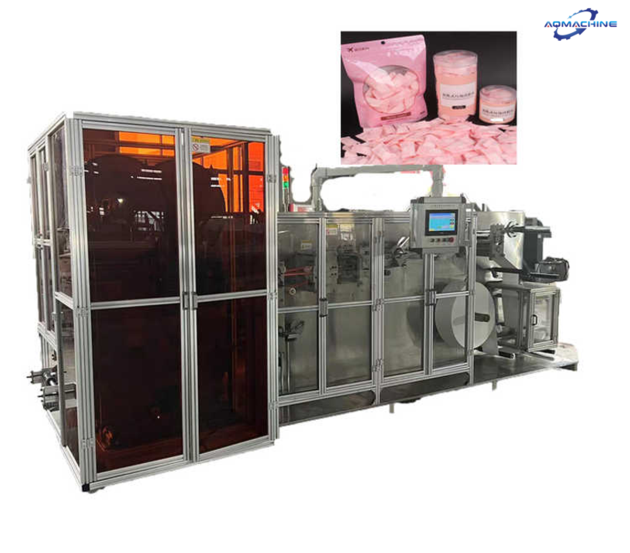

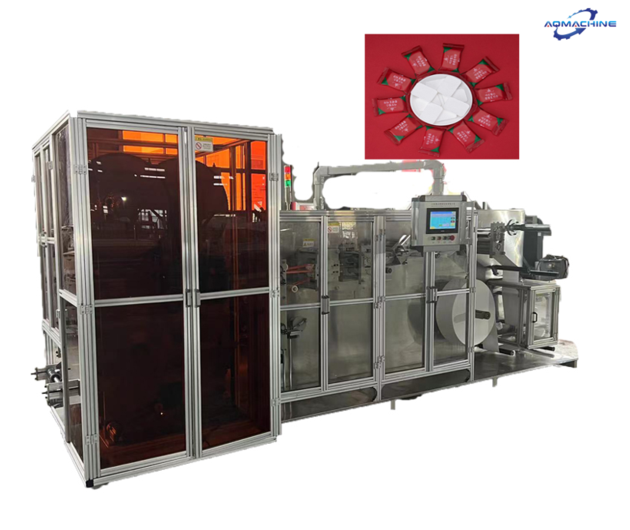

compressed towel making machine

Automatic compressed towel making machine descriptions:

1.Production process:

a.Raw material transferring b. Humidify the fabric c. Fabric folding d. Fabric cutting e. Fabric foding f. Punching g. Outputting to conveyor belt h.Storing in a round tank i.Packing

2.Use the international quality steel and the quality punching device. ( The material of punching device be served for a long time.)

3.The effective width for raw material 300mm, material maximum diameter 1000mm, with paper core 3.

4.The finished product size is 400*280-300mm. Material is nonwoven/cotton.

5.Equipped with 2 sets of folding devices which are designed by our factory.

6.It is equipped with ONE set of humidifying device to make sure the fabric is easy to fold and be punched.

7.Connecting with a conveyor belt to transfer the output folded products. First to a round tank to store the products, and then output one by one to the packing machine.

8.All parts which are in contact with fabrics are manufactured in 304# stainless steel.

9.The compressed towel machine running is controlled by the servo driving systems and it has a reasonable layout of the electric wires, it is easy for workers to run the machine.

10.The whole structure is compact, high-speed, smooth operation, stable performance, light noise, simple, and it is a national original.

11.Operation and technical manual in English with detailed instructions with troubleshooting guide

Main technical parameters：

Production rate of 130-170pcs / min

Rated voltage of 380V

Rated frequency 50Hz

Total power 5kw

Machine size: L:6500, W:5000, H:1800mm
