chilling/heating dry bath DC10

Description:
The DC10 Chilling/Heating Dry Bath is compact, versatile, reliable and easy to use.
It is adopted high quality Peltier plate to ensure long-term stable operation and controlled can be widely used in preservation and reaction of samples, DNA amplification, electrophoresis denaturation and serum solidification, etc.

Features:
 Energy-efficient Peltier design.
 Automatic fault detection and buzzer alarm function.
 Electronic calibration. User can reset to any local standard.
 Small, compact size uses very little bench space.
 Easy replacement, cleaning and disinfecting of metal blocks.
 Built-in over-temperature protection.
 Internal power supply provided is UL, CSA and CE approved.
 Customed modules are accepted.
 Buzzer alarm when temperature control ends.
 12-month warranty.
Applications:
 Maintaining 14êC for ligation reactions.
 Maintaining 17êC for storing oocytes.
 Storing samples at ice bucket temperatures.
 Storing enzymes or DNA libraries at your work station.
 Transporting samples from the field at exactly the right temperature.
 Chilling or heating samples in the field.
 Enzyme reactions and deactivations.
 Freezing and storing most any small sample at your work station.
 PCR sample preparation.


Parameters:

Project Parameters
Temp setting range -10℃~100℃
Temp control range Below room temp 30℃~100℃
Time range 1min ~ 99h59min/∞
Temp accuracy ≤ê0.3℃*
Display accuracy 0.1℃
Temp uniformity ≤ê0.3℃*
Heating time ≤10 min （from 25℃to100℃）*
Cooling time ≤10min （from 100℃ to 25℃）*
Cooling time ≤25min（from room temp to blow it 30℃）*
AUTO-4℃ Yes*
Multi points running Yes（Max 5 points）
Multi cycle Yes（Max 99 times）
Auto running Yes
Auto heating Yes
Auto resume to run Yes
Power 150W
Power input AC110~220V/50-60HZ
Fuse 250V 3A Ф5×20
Size(mm) 260x195x150 mm
Weight 4.5Kg

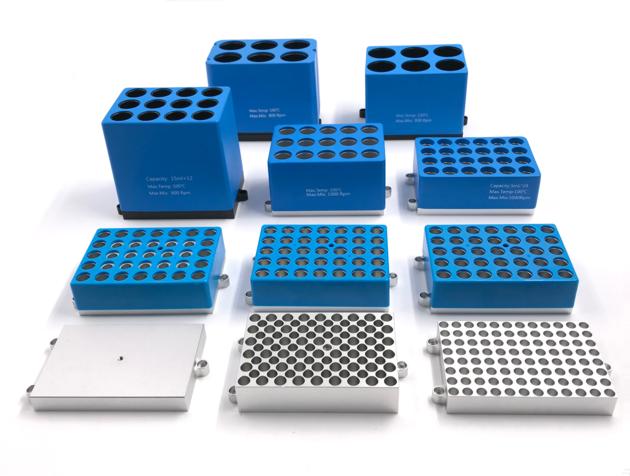

Optional Blocks:
Type Test tube and aperture
MD30 96×0.2ml
MD31 54×0.5ml
MD32 35×1.5ml
MD33 35×2.0ml
MD34 15×0.5ml+20×1.5ml
MD35 96×0.2ml(elisa plate)
MD36 24×5ml
MD37 15×10ml
MD38 12×15ml
MD39 6×50ml
